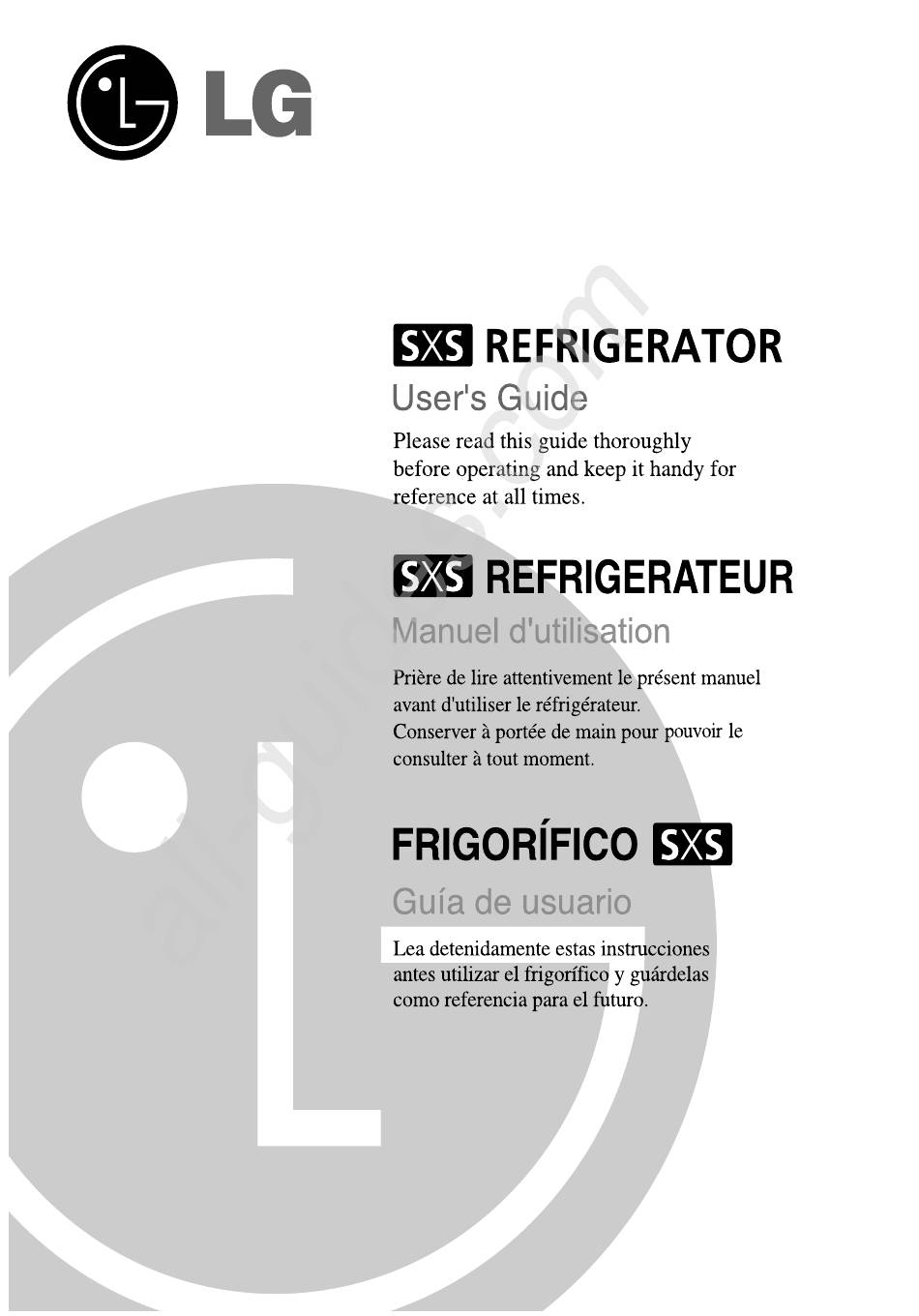

- Page 1 All manuals and user guides at all-guides.com LRSC21935TT LRSC21935SW LRSC21935SB...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Table of contents Introduction Entry Important safety instruction Identification of parts Installation Where to install Door removal Door replacement Feed water pipe installation Water connection instruction guide Operation instruction guide Height adjustment Operation Starting Adjusting the temperatures and functions (Dispenser / Automatic ice maker) -
Page 3: Introduction
All manuals and user guides at all-guides.com Introduction Entry The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. -
Page 4: Identification Of Parts
All manuals and user guides at all-guides.com Introduction Child entrapment DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer: warning Take off the doors but leave the shelves in place so that children may not easily climb inside. -
Page 5: Installation
All manuals and user guides at all-guides.com Installation Where to install 1. Place your appliance where it is easy to use. Select a good location 2. Avoid placing the unit near heat sources, direct sunlight or moisture. 3. To avoid vibrations, the appliance must be leveled. 4. -
Page 6: Door Removal
All manuals and user guides at all-guides.com Installation Door removal Warning Electric Shock Hazard Disconnect electrical supply to refrigerator before installing. Failure to do so could result in death or serious injury. If your access door is too narrow for the refrigerator to pass through, remove the Lower cover refrigerator door and pass the refrigerator laterally. -
Page 7: Door Replacement
All manuals and user guides at all-guides.com Installation Pass the Pass the refrigerator laterally through the access door as shown in the right figure. refrigerator TEMP TEMP Door replacement Mount them in the reverse sequence of removal after they pass through the access door. -
Page 8: Water Connection Instruction Guide
All manuals and user guides at all-guides.com Installation Water connection instruction guide Connecting Read all directions carefully before you begin. the refrigerator to a water source Warning Connect to potable water supply only. IMPORTANT If operating the refrigerator before installing the water connection, turn ice maker •... - Page 9 All manuals and user guides at all-guides.com Installation Connect 1. Unplug refrigerator or disconnect power. the tubing to 2. Turn OFF main water supply. Turn ON nearest faucet long enough to empty water line water pipes. 3. Find a 1/2 - inch to 1-1/4 - inch vertical COLD water pipe near the refrigerator. NOTE Horizontal pipe will work, but the following precaution must be taken: Drill on the top •...
-
Page 10: Operation Instruction Guide
All manuals and user guides at all-guides.com Installation Operation instruction guide Connect the tubing to Before making the connection to the the refrigerator refrigerator, be sure the refrigerator Copper tubing (Provided) power cord is not plugged into the wall Compression nut outlet. - Page 11 All manuals and user guides at all-guides.com Installation When ice maker Ice is clumped together does not operate When ice is clumped together, take the ice clumps out of the ice storage bin, smoothly break them into small pieces, and then place them into the ice storage bin again.
-
Page 12: Height Adjustment
All manuals and user guides at all-guides.com Installation Height adjustment If the freezer Level the door by inserting flat ( - type) driver into the groove of the left height adjusting screw and rotate it clockwise ( ). compartment door is lower than the refrigerator compartment door... -
Page 13: Operation
All manuals and user guides at all-guides.com Operation Starting When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting. Adjusting the temperatures and functions DIGITAL CONTROL FITER STATUS... - Page 14 All manuals and user guides at all-guides.com Operation You can adjust temperature of and freezer room and refrigerator room. How to adjust the Freezer room temperature adjustment temperature in the freezer FREEZER compartment Setting temperature Refrigerator room temperature adjustment How to adjust the temperature in the refrigerator REFRIGERATOR...
- Page 15 All manuals and user guides at all-guides.com Operation The icemaker can automatically make 8 pieces of ice cubes at anyone time, Automatic ice approximately 80 pieces per day. However these quantities may vary according to maker certain conditions. E.g. the duration and amount of times the refrigerator door is opened.
- Page 16 All manuals and user guides at all-guides.com Operation The other Door open warning functions 3 times of warning sounds at the interval of 30 seconds if a minute passes with the door of refrigerator and the hombar door opened or completely closed. Please contact with the local service center if warning continue to sound even after closing the door.
- Page 17 All manuals and user guides at all-guides.com Operation After 6 months, the following sentence and will appear on the filter condition 6 Filter condition part of the LED. "Press for 3 seconds after replacing filter" (filter replacement After 6 months have passed, and if the filter has been replaced or you want to reset cycle) display the filter condition display, press the filter replacement button for more than 3 function...
-
Page 18: Shelf (Applicable To Some Models Only)
All manuals and user guides at all-guides.com Operation Shelf (Applicable to some models only) You can store taller items such as a gallon container or bottles by simply pushing Silde-Under in front half of shelf underneath back half of shelf. Pull toward you to return to a Shelf full shelf. -
Page 19: Egg Box
All manuals and user guides at all-guides.com Operation Egg box You can move the egg box to a place you want and select another form of box according to the amount of eggs. [Normal] [For Many Eggs] NOTE Never use the egg box as an ice storage bin. It can be broken. •... -
Page 20: Deodorizer (Applicable To Some Models Only)
All manuals and user guides at all-guides.com Operation Deodorizer (Applicable to some models only) This system efficiently absorbs strong odors by using the optical catalyst. This system does hot have any affect on stored food. How to use the Since it is installed already installed onto the cool air intake duct from the from deodorizing the refrigerator compartment, you need no separate installation. -
Page 21: Suggestion On Food Storage
All manuals and user guides at all-guides.com Suggestion on food storage Location of foods (Refer to identification of parts) Wine holder Store wine. Snack drawer Store small foods such as bread, snacks, etc.. Freezer Store various frozen foods such as meat, fish, compartment ice cream, frozen snacks, etc.. -
Page 22: Storing Foods
All manuals and user guides at all-guides.com Suggestion on food storage Storing foods Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor. Do not store food which goes bad easily at low temperatures, such as bananas, and melons. -
Page 23: Care And Maintenance
All manuals and user guides at all-guides.com Care and maintenance How to dismantle parts NOTE Dismantling is done in the reverse sequence of assembly. • Be sure to unplug the power plug before dismantling and assembly. Never apply severe force to dismantle parts. Parts may be damaged. Freezer Separate the lamp by pulling it out ( ) while compartment... - Page 24 All manuals and user guides at all-guides.com Care and maintenance Lamp in To remove the lamp cover, press the protrusion under the lamp cover to the front and then pull the lamp cover out. refrigerator Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be compartment purchased at a service center.
-
Page 25: General Information
All manuals and user guides at all-guides.com Care and maintenance General information During average length vacations, you will probably find it best to leave the refrigerator Vacation time in operation. Place freezable items in freezer for longer life. When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation. -
Page 26: Trouble Shooting
All manuals and user guides at all-guides.com Care and maintenance Trouble shooting Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Occurrence Possible cause Solution... - Page 27 All manuals and user guides at all-guides.com Care and maintenance Occurrence Possible cause Solution Refrigerator Thermostat is keeping the refrigerator This is normal. The refrigerator goes on compressor at a constant temperature. and off to keep the temperature constant. does not run. Temperatures are too cold Temperature in the...
- Page 28 All manuals and user guides at all-guides.com Care and maintenance Possible cause Solution Occurrence Sound and noise Louder sound Today’s refrigerators have increased It is normal for sound levels to be higher. levels when storage capacity and maintain more refrigerator is on. even temperatures.
- Page 29 All manuals and user guides at all-guides.com Care and maintenance Occurrence Possible cause Solution Odors in refrigerator Clean interior with sponge,warm water Interior needs to be cleaned. and baking soda. Cover food completely. Food with strong odor is in the refrigerator. Some containers and wrapping materials Use a different container or brand of produce odors.
- Page 30 All manuals and user guides at all-guides.com Care and maintenance Occurrence Possible cause Solution Ice has melted and frozen around auger Remove ice storage bin, and thaw and Dispenser will not dispense due to infrequent use, temperature the contents. Clean bin, wipe dry and ice.
- Page 31 All manuals and user guides at all-guides.com LG Twin Tower, 20, Yoido-Dong, Youngdungpo-Gu, Seoul, 150-721, Korea. http://www.lge.com P/NO : 3828JD8792G Printed in Korea...
