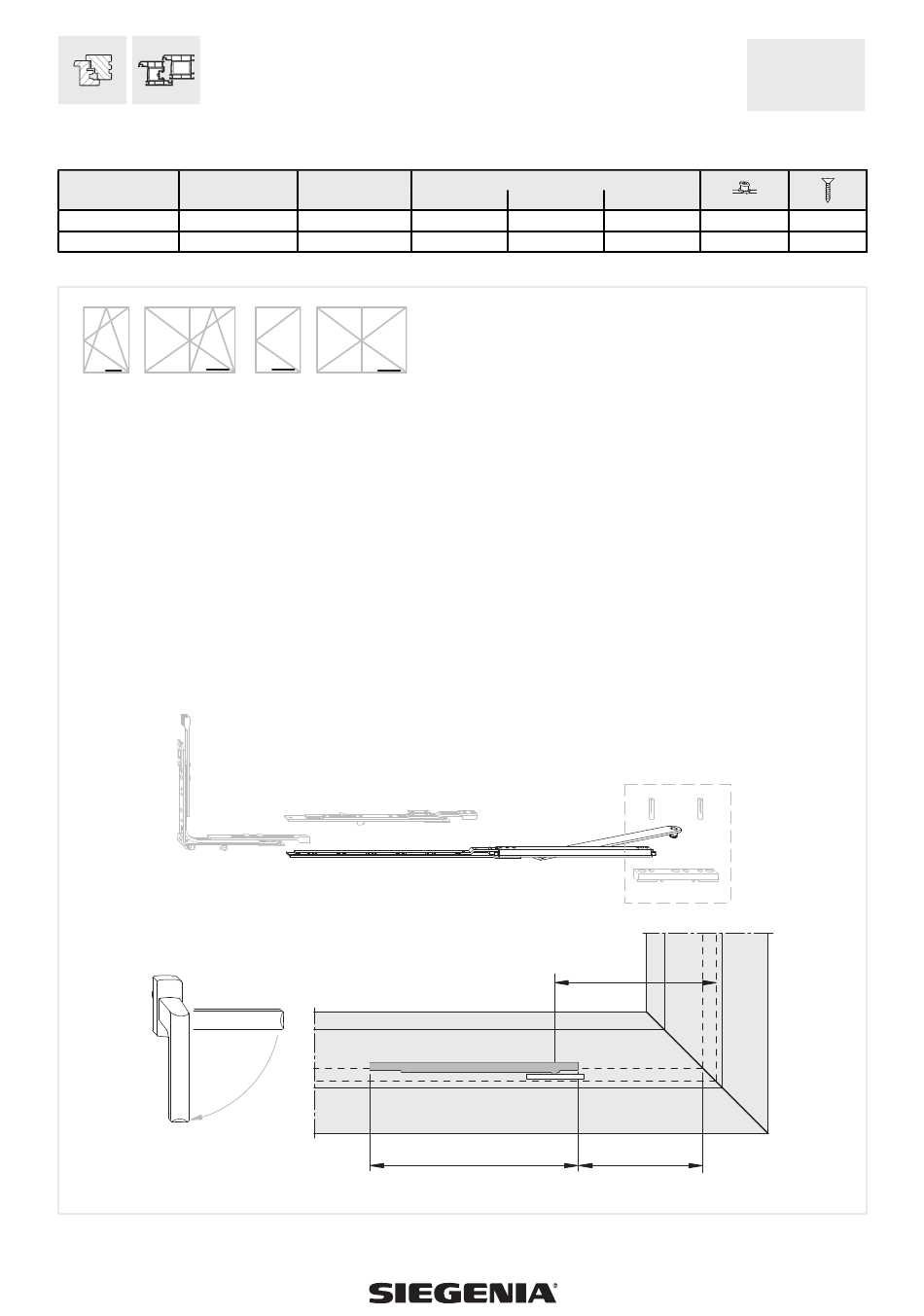

Technical information
Part number
Description
FSBR0020-...
brake stay sz 1
FSBR0030-...
brake stay sz 2
• The dimensions specified only apply when using surface mounted hinges, whose pivot points correspond to SIEGENIA
hinges. If pivot points differ, adjust dimensions so that a sash opening angle of 100° is not exceeded.
• Brake stay sz 1 must not used together with rebate corner hinges
• Intended Use:
Keep inward opening window sash of side-hung and tilt and turn window elements in turn position for brief ventilation.
• Service in accordance with our operating and maintenance manual
• *Acc. bag friction stay refer to PDB line item FMBR
• The following must be observed:
VHBH Guideline (Specification and Information on the Product and Liability) with the applicable documents stated
herein) and the FBDF Guideline (Brake stay for Variable Turning Position of Sashes) - Download the guidelines at
www.beschlagindustrie.de/ggsb/richtlinien.asp). Information from the profile manufacturer and/or system provider
(PVC, aluminium) or the DIN 68 121 – „Timber Profiles for Windows and French Windows"
FEUL
H52.BG5_FSBR_003EN-00
sash brake
FFB
470 - 690
680 - 960
FZSZ0100
Dimensions (mm)
A
B
540
55
718
132
A
FAVORIT
C
18
1
104
1
*
FMBR
C
B
03.2015
5
4
Advertisement
Table of Contents
Related Manuals for Siegenia FAVORIT FSBR0020 Series
Summary of Contents for Siegenia FAVORIT FSBR0020 Series
- Page 1 2 680 - 960 • The dimensions specified only apply when using surface mounted hinges, whose pivot points correspond to SIEGENIA hinges. If pivot points differ, adjust dimensions so that a sash opening angle of 100° is not exceeded.
- Page 2 Check whether the combination of window profile, hinge-side supporting hardware chosen – this also applies to SIEGENIA hinges – and their fixings withstands misuse. In this respect, check the sash opened and positioned in the direction of the turning position in accordance with Item 3.2 of Guideline FBDF.
