TruckCraft TC-202 Owner's Manual

Ultra combo service/dump body
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
TC-202 ULTRA COMBO
SERVICE/DUMP BODY
Proudly built in the USA
TruckCraft Corporation
Chambersburg, PA
1-800-755-3867
Rev 02/2018
Copyright 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-202 and is the answer not in the manual?

Questions and answers

Related Manuals for TruckCraft TC-202

Summary of Contents for TruckCraft TC-202

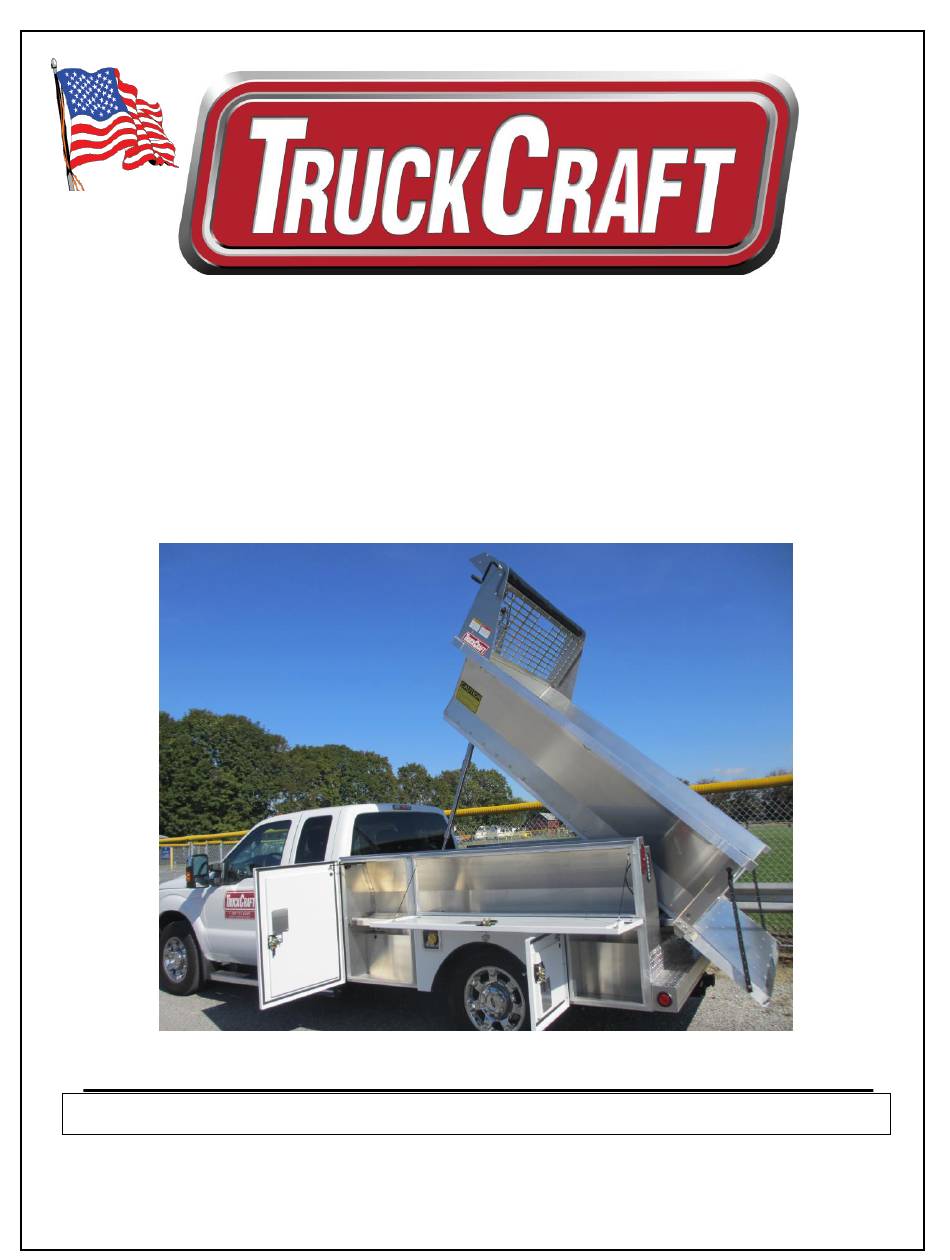

  • Page 1 Owner’s Manual TC-202 ULTRA COMBO SERVICE/DUMP BODY Proudly built in the USA TruckCraft Corporation Chambersburg, PA 1-800-755-3867 Rev 02/2018 Copyright 2018...

  • Page 2: Table Of Contents

    • D2-08657 Mounting Kit (GM) 19 & 20 • D2-08340 Mounting Kit (RAM) 21 & 22 Mounting Kits for (TC-121 TO TC-202) • D2-08505 Mounting Kit (2017 FORD) • D2-08242 Mounting Kit (2016 FORD) • D2-08361 Mounting Kit (GM) • D2-08341 Mounting Kit (RAM) Toolbox Light &...

  • Page 3: Warranty 3

    All repairs must be authorized be TruckCraft prior to any work being completed. If after inspection TruckCraft determines the product is defective in material or workmanship as claimed.
  • Page 4 TruckCraft’s obligations are limited to those expressed in this warranty and TruckCraft shall not be liable to the purchaser or any third party for any direct or indirect, incidental or consequential damage or loss. Some states do not allow limitations on how long an implied warranty lasts or exclusions or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

  • Page 5: Warranty Registration

    Service Body will give you many years of outstanding service. To provide you with the superior support that you deserve, we request that you register your warranty with us. To register your warranty, please complete this form and mail or fax it to TruckCraft within 30 days of purchase.

  • Page 6: Operator Safety Warnings

    Web: www.truckcraft.com Ultra / Combo Body Options The TC-202 was designed for pickups with single rear wheel and a 56CA capable to carry tools necessary for your job and have the capability to have a dump truck also. The weight of the unit is 1,045 lbs., which includes the TC-121 dump insert. The aluminum dump insert has a capability of 7,000 lb.

  • Page 7: Ultra/Combo Body Installation Kits

    We have designed Installation kits to fit all three domestic truck manufacturers chassis (FORD, GM & RAM). This makes for a custom installation of the TC-202 and the dump insert. Listed below are installation and mounting kits for the most popular domestic chassis.
  • Page 8 TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com INSTALLATION FOR FORD/SRW/56CA 2017 & UP (D1-08508) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 8...

  • Page 9: D1-08241 Installation Kit (2016 Ford) 9

    TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com INSTALLATION FOR FORD/SRW/56CA 2016 & BACK (D1-08241) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 9...
  • Page 10 TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com INSTALLATION FOR FORD/SRW/56CA 2016 & BACK (D1-08241) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 10...

  • Page 11: D1-08345 Installation Kit (Gm) 11

    TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com INSTALLATION FOR GM/SRW/56CA (D1-08345) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 11...
  • Page 12 TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com INSTALLATION FOR GM/SRW/56CA (D1-08345) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 12...

  • Page 13: D1-08339 Installation Kit (Ram) 13

    TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com INSTALLATION FOR RAM/SRW/56CA (D1-08339) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 13...
  • Page 14 TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com INSTALLATION FOR RAM/SRW/56CA (D1-08339) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 14...

  • Page 15: Ultra/Combo Body Mounting Kits

    5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com Ultra/Combo Mounting Kits Listed below are the mounting kits offered for FORD, GM and RAM chassis. MOUNTING KIT FOR FORD/SRW/56CA 2017 & UP (D2-08507)
  • Page 16 TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com MOUNTING KIT FOR FORD/SRW/56CA 2017 & UP (D2-08507) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 16...

  • Page 17: D2-08560 Mounting Kit (2016 Ford) 17

    TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com MOUNTING KIT FOR FORD/SRW/56CA 2016 & BACK (D2-08560) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 17...
  • Page 18 TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com MOUNTING KIT FOR FORD/SRW/56CA 2016 & BACK (D2-08560) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 18...

  • Page 19: D2-08657 Mounting Kit (Gm) 19

    TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com MOUNTING KIT FOR GM/SRW/56CA (D2-08657) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 19...
  • Page 20 TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com MOUNTING KIT FOR GM/SRW/56CA (D2-08657) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 20...

  • Page 21: D2-08340 Mounting Kit (Ram) 21

    TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com MOUNTING KIT FOR RAM/SRW/56CA (D2-08340) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 21...
  • Page 22 TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com MOUNTING KIT FOR RAM/SRW/56CA (D2-08340) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 22...

  • Page 23: Mounting Kits For (Tc-121 To Tc-202)

    TC-202 Service/Dump Body Web: www.truckcraft.com Mounting Kits For (TC-121 Insert To TC-202) Listed below are the kits offered for FORD, GM and RAM chassis. MOUNTING KIT/TC-121 TO TC-202/SRW FORD/56CA 2017 & UP (D2-08505) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 23...

  • Page 24: D2-08242 Mounting Kit (2016 Ford)

    TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com MOUNTING KIT/TC-121 TO TC-202/SRW FORD/56CA 2016 & BACK (D2-08242) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 24...

  • Page 25: D2-08361 Mounting Kit (Gm)

    TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com MOUNTING KIT/TC-121 TO TC-202/SRW GM/56CA (D2-08361) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 25...

  • Page 26: D2-08341 Mounting Kit (Ram)

    TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com MOUNTING KIT/TC-121 TO TC-202/SRW RAM/56CA (D2-08341) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 26...

  • Page 27: Toolbox Light & Harness Installation (D2-08243)

    TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com Toolbox Light & Harness Inst’l. / TC-202 (D2-08243) Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 27...

  • Page 28: Tc-202 Product Specifications

    TruckCraft Corporation Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com TC-202 Product Specifications Copyright 2018 TruckCraft Corporation Revised 02/2018 Page 28...

  • Page 29: Major Product Components 29

    Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com Major Product Components Entry Latch W/ Cover Gas Spring Door Strut Front Storage Tray Rear Light Cover (Upper Corner)
  • Page 30 Tel. (800) 755-3867 5751 Molly Pitcher Hwy South Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com Major Product Components Rear Oval (LED) Tail Lights Chrome Fuel Fill Slam-Shut Tailgate & 5” Alum. Bumper (Optional) Headboard with Rollup Tarp...

  • Page 31: General Maintenance Instructions

    Fax. (717) 375-2975 Chambersburg, PA 17202 E-Mail: sales@truckcraft.com TC-202 Service/Dump Body Web: www.truckcraft.com General Maintenance Instructions ALWAYS wash your service body after any after major storm in the winter months to remove the road chemicals and salt. This will help in keeping your unit from being stained. If possible, a good wax should be used on your service body to help keep it looking good and protect the aluminum finish.
