3D-AGP VGA / 3D-Audio M/B
FOR SOCKET 370 Processor
The author assumes no responsibility for any errors or omissions which
may appear in this document nor does it make a commitment to update
the information contained herein.
Trademark:
Pentium is registered trademark and Celeron is a trademark of Intel corporation,
the other names and brands are the property of their respective owners.
Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

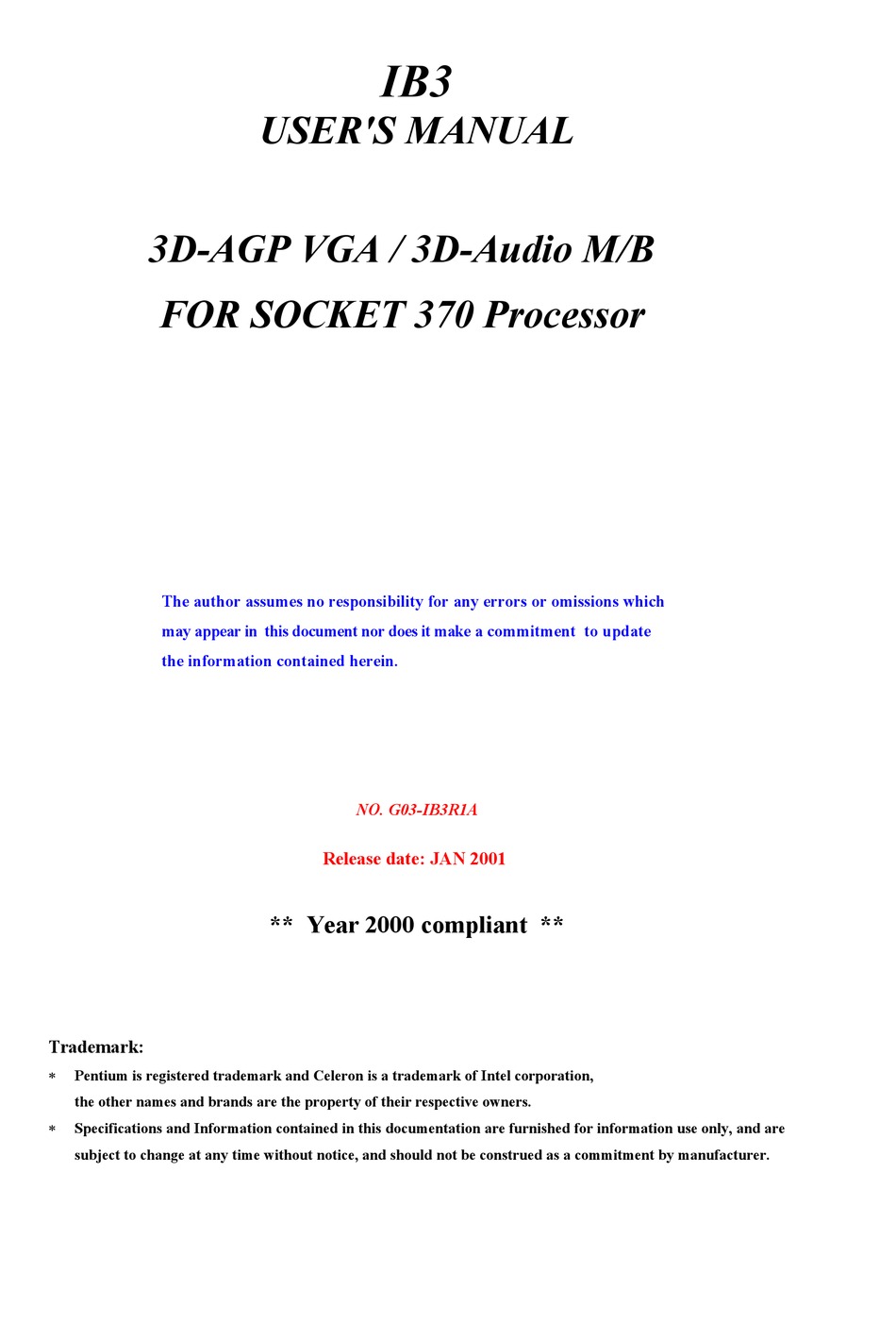

IB3
USER'S MANUAL
NO. G03-IB3R1A
Release date: JAN 2001
** Year 2000 compliant **
Advertisement
Table of Contents
Related Manuals for MSI IB3
Summary of Contents for MSI IB3
- Page 1 USER'S MANUAL 3D-AGP VGA / 3D-Audio M/B FOR SOCKET 370 Processor The author assumes no responsibility for any errors or omissions which may appear in this document nor does it make a commitment to update the information contained herein. NO. G03-IB3R1A Release date: JAN 2001 ** Year 2000 compliant ** Trademark:...
-
Page 2: Table Of Contents
TABLE OF CONTENT USER’S NOTICE................ii MANUAL REVISION INFORMATION..........1 THERMAL SOLUTIONS..................1 CHAPTER 1 INTRODUCTION OF MOTHERBOARD 1-1 FEATURE OF MOTHERBOARD...............2 1-2 SPECIFICATION...................3 1-3 MOTHERBOARD DIAGRAM..............4 1-4 QUICK REFERENCE FOR JUMPERS, CONNECTORS & EXPANSION SOCKET.................5 CHAPTER 2 HARDWARE INSTALLATION 2-1 HARDWARE INSTALLATION STEPS............6 2-2 CHECKING MOTHERBAORD'S JUMPER SETTING......6 2-3 INSTALL CPU....................8 ....................8... -
Page 3: User's Notice
CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION MAGIC INSTALL SUPPORTS WINDOWS 95/98/98SE/NT4.0/2000....39 4-1 INF ......40 INSTALL INTEL 810E CHIPSET SYSTEM DRIVER 4-2 IDE ......41 INSTALL ULTRA ATA33 OR ULTRA ATA66 DRIVER 4-3 VGA ............42 INSTALL ON-BOARD VGA DRIVER ..........42 A. For WINDOWS 95/98/98SE/NT4.0 ...............42 B. -
Page 4: Manual Revision Information
Manual Revision Information Reversion Revision History Date First Release Jan 2001 Item Checklist Motherboard Cable for IDE/Floppy CD for motherboard utilities □ Cable for USB Port (Option) Cable for COM1/COM2 Cable for Audio/Game Port Cable for Parallel Port/PS2 _ Mouse ... -
Page 5: Feature Of Motherboard
Chapter 1 Introduction of IB3 Motherboard 1-1 Feature of motherboard The IB3 motherboard is design for use Intel’s new generation Pentium processors, which utilize the Socket 370 design and the memory size expandable to 256MB (or 512MB by using 128Mb technology). -
Page 6: Specification
1-2 Specification Spec Description Baby AT form factor 4 layers PCB size: 22 x 17 cm Design INTEL 810E Chipset Chipset Winbond 83194AR-We Clock Generator Support 66/100/133MHz system Bus Clock (CPU Bus Clock) Support CPU Frequency setting in BIOS Setup ... -
Page 7: Quick Reference For Jumpers, Connectors & Expansion Socket
Figure 1-1 1-4 Quick Reference for Jumpers, Connectors & Expansion Socket... -
Page 8: Chapter 2 Hardware Installation
Jumpers Jumper Name Description Page JP3, JP4, CPU Bus/SDRAM Frequency Auto JP3:ON, JP4:ON, JP5:1-2, JP6:1-2 JP5, JP6 Selection 66Mhz JP3:Off, JP4:Off, JP5:2-3, JP6:2-3 100Mhz JP3:Off, JP4:Off, JP5:1-2, JP6:2-3 133Mhz JP3:Off, JP4:Off, JP5:1-2, JP6:1-2 V I/O Voltage 1-2 : For V I/O 3.3V (Default) 2-3 : For V I/O 3.45V Keyboard Power on Function 1-2 : Enabled (Only for ATX Power ) -
Page 9: Hardware Installation Steps
2-1 Hardware installation Steps Before using your computer, you had better complete the following steps: Check motherboard setting Install CPU Install Memory Install Expansion cards Connect Ribbon cables, Panel wires, and power supply Setup BIOS Install software driver & utility 2-2 Checking Motherboard’s Jumper Setting CPU Host/SDRAM Clock setting (3-pin) : JP3, JP4, JP5, JP6 The motherboard’s CPU &... - Page 10 In “Miscellaneous Control” section of CMOS setup Utility, you can setting the CPU clock by BIOS setting please refer page V I/O Voltage setting (3-pin) : JP2 Keyboard Power On Function setting (3-pin) : JP8 This allows you to disable the keyboard power on function. Set the jumper to enabled or disabled if you wish to use your keyboard (by pressing <...
-
Page 11: Glossary
CMOS RAM Clear (3-pin) : JP11 A battery must be used to retain the motherboard configuration in CMOS RAM short 1-2 pins of JP11 to store the CMOS data. Note: You can clear CMOS by shorting 2-3 pin, while the system is off. Then return to 1-2 pin position. -
Page 12: Setting Cpu Bus Clock & Memory Clock Jumper
Sound (interface) - the interface between the sound card or integrated sound connectors and speakers, mic, game controllers, and MIDI sound devices. BIOS (Basic Input/Output System) - the program logic used to boot up a computer and establish the relationship between the various components. Driver - software, which defines the characteristics of a device for use by another device or other software. -
Page 13: Install Cpu
Setting the front side bus frequency and SDRAM frequency The motherboard uses jumper JP3, JP4, JP5, JP6 for the front side bus frequency and SDRAM frequency setting as shown from the table below: CPU/SDRAM (MHz) Auto 1-2 (Default) 66/100 100/100 133/100 ... -
Page 14: Install Memory
WARNING! This section is for experienced motherboard installer only. Over clocking can result in system instability or even shortening life of the processor. After setting the Jumper JP3, JP4, JP5, JP6 you can choose over clock running by BIOS CMOS SETUP UTILITY. When you entered CMOS SETUP UTILITY, choose “Miscellaneous Control.”... -
Page 15: Expansion Cards
sites for memory expansion available from minimum memory size of 32MB to maximum memory size of 512MB SDRAM. System can be DIMM 1 DIMM 2 Accept or Not 168-pin DIMM Accept 168-pin DIMM 168-pin DIMM Accept 168-pin DIMM Accept Generally, installing SDRAM modules to your motherboard is very easy, you can refer to figure 2-4 to see what a 168-Pin PC100 &... -
Page 16: Interrupt Request Table For This Motherboard
Standard Interrupt Assignments Priority Standard function System Timer Keyboard Controller Programmable Interrupt Communications Port (COM2) Communications Port (COM1) Sound Card (sometimes LPT2) Floppy Disk Controller Printer Port (LPT1) System CMOS/Real Time Clock ACPI Mode when enabled 10 * IRQ Holder for PCI Steering 11 * IRQ Holder for PCI Steering 12 *... - Page 17 This connector connects to a standard AT power supply. To connect the leads from the power supply, ensure first that the power supply is not plugged. Most power supplies provide two plugs (P8 and P9), each containing six wires, two of which are black. Orient the connectors so that the black wires are located in the middle.
- Page 18 4. PS/2 Mouse Connector (5-pin block): MS _ PIN If you are using a PS/2 mouse, you must purchase an optional PS/2 mouse set which connects to the 5-pins block and mounts to an open slot on your computer’s case. 5.
- Page 19 7. Floppy drive Connector (34-pin block): FDD This connector supports the provided floppy drive ribbon cable. After connecting the single plug end to motherboard, connect the two plugs at other end to the floppy drives. 8. Primary IDE Connector (40-pin block): IDE1 This connector supports the provided IDE hard disk ribbon cable.
- Page 20 10. IDE activity LED: IDELED This connector connects to the hard disk activity indicator light on the case. 11. Front Panel connector: This 16-pin connector to connect to case front panel switch. A. Turbo LED switch: TURBO LED The motherboard’s turbo function is always on. The turbo LED will remain constantly lit while the system power is on.
- Page 21 12. IR infrared module connector: IR This connector supports the optional wireless transmitting and receiving infrared module. This module mounts to small opening on system cases that support this feature you must also configure the setting through BIOS setup. Use the five pins as shown on the Back View and connect a ribbon cable from the module to the motherboard according to the pin definitions.
- Page 22 16. VGA connector: VGA This connector supports the provided VGA cable with mounting bracket. Connect the ribbon cable to connector and mount the bracket to the case on an open slot. 17. Audio connector: Audio 18. Game Port connector: GAME ※...
-
Page 23: Chapter 3 Introducing Bios
20. Wake On LAN connector: WOL ※ Wake On LAN function worked only when power supply support 5VSB more than 750mA current. Chapter 3 Introducing BIOS... -
Page 24: Entering Setup
The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. -
Page 25: The Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of the screen. Status Page Setup Menu/Option Page Setup Menu Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. -
Page 26: Standard Cmos Features
Power Management Setup Use this menu to specify your settings for power management. PnP/PCI configurations This entry appears if your system supports PnP/PCI. PC Health Status This entry shows your PC health status. Miscellaneous Control Use this menu to specify your settings for Miscellaneous Control. Load Optimized Defaults Use this menu to load the BIOS default values that are factory settings for optimal performances system operations. - Page 27 category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item. CMOS Setup Utility – Copyright(C) 1984-2001 Award Software Standard CMOS Features Date (mm:dd:yy) Tue, Jan, 16 2001...
-
Page 28: Advanced Bios Features
Cylinder number of cylinders Head number of heads Precomp write precomp Landing Zone landing zone Sector number of sectors 3-5 Advanced BIOS Features CMOS Setup Utility – Copyright(C) 1984-2001 Award Software Advanced BIOS Features Anti-Virus Protection Disabled Item Help CPU Internal Cache Enabled External Cache Enabled... - Page 29 Disabled Disable cache Note: The internal cache is built in the processor. External Cache Choose Enabled or Disabled. This option enables the Level 2 cache memory. CPU L2 Cache ECC Checking Choose Enabled or Disabled. This option enables the Level 2 cache memory ECC (error check correction).
-
Page 30: Advanced Chipset Features
Typematic Delay (Msec) Sets the delay time after the key is held down before is begins to repeat the keystroke. The settings are 250, 500, 750, and 1000. Security Option This category allows you to limit access to the system and Setup, or just to Setup. System The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt. -
Page 31: Integrated Peripherals
Select the number of SCLKs for an access cycle. The settings are: 5/7 and 6/8. SDRAM RAS-to-CAS Delay This field let’s you insert a timing delay between the CAS and RAS strobe signals, used when DRAM is written to, read from, or refreshed. Fast gives faster performance; and Slow gives more stable performance. - Page 32 > OnBoard IDE Function Press Enter Item Help > OnBoard PCI DEVICE Press Enter > Winbond SuperIO Device Press Enter Init Display First PCI Slot Menu Level > ↑↓→← Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults F7:Standard Defaults OnBoard IDE Function Please refer to section 3-7-1...
- Page 33 The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device.
- Page 34 This will determine which Address the Game Port/Midi Port will use 3-7-3 Winbond SuperIO Device CMOS Setup Utility – Copyright(C) 1984-2001 Award Software Winbond SuperIO Device POWER ON Function BUTTON ONLY Item Help KB Power ON Password Enter HOT Key Power ON Ctrl-F1 Oboard FDC Controller Enable...
-
Page 35: Power Management Setup
To operate the onboard parallel port as Standard Parallel Port only, choose “SPP.” To operate the onboard parallel port in the EPP modes simultaneously, choose “EPP.” By choosing “ECP”, the onboard parallel port will operate in ECP mode only. Choosing “ECP+EPP” will allow the onboard parallel port to support both the ECP and EPP modes simultaneously. - Page 36 of the ranges is from 1 min. to 1hr. except for HDD Power Down that ranges from 1 min. to 15 min. and disable. Min Saving Minimum power management. Doze Mode 1H, Suspend Mode=1 hr., Power Down=15 min. Max Saving Maximum power management.
-
Page 37: Reload Timer Events
Time(hh:mm:ss) Alarm You can choose what hour, minute and second the system will boot up. Note: If you have change the setting, you must let the system boot up until it goes to the operating system, before this function will work. Reload Timer Events Please refer to section 3-8-1 3-8-1 Reload Timer Events... -
Page 38: Pc Health Status
PnP/PCI Configurations Reset Configuration Data Disabled Item Help Resources Controlled By Manual Menu Level > x IRQ Resources Press Enter Default is Disabled. PCI/VGA Palette Snoop Disabled Select Enabled to reset Extended System Configuration Data ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has... -
Page 39: Miscellaneous Control
Show PC Health in Post Enabled Item Help CPU Warning Temperatyre Disabled Warning_Beep Enabled Shutdown Temperature Disabled Menu Level > 25 。 C/77 。 F Current System Temp. 49 。 C/120 。 F Current CPU Temperature Current FAN1 Speed. 4172 RPM Current FAN2 Speed. -
Page 40: Load Standard/Optimized Defaults
Menu Level > CPU Clock Ratio ↑↓→← Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults F7:Standard Defaults Auto Detect DIMM/PCI Clk This item allows you to enable/disable auto detect DIMM/PCI Clock. The settings are: Enabled, Disabled. Spread Spectrum This item allows you to set the Spread Spectrum. -
Page 41: Chapter 4 Driver & Free Program Installation
password. ENTER PASSWORD: Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc>... -
Page 42: Magic Install Supports Windows 95/98/98Se/Nt4.0/2000
detect software MAGIC INSTALL. MAGIC INSTALL supports WINDOWS 95/98/98SE/NT4.0/2000 Insert CD into your CD-ROM drive and the MAGIC INSTALL Menu should appear as below. If the menu does not appear, double-click MY COMPUTER / double-click CD-ROM drive or click START / click RUN / type X:\SETUP.EXE (assuming X is your CD-ROM drive). -
Page 43: Inf Install Intel 810E Chipset System Driver
Each selection is illustrated as below: 4-1 INF install INTEL 810E chipset system driver After you have completed the installation of your operation system (WINDOWS 95/98/ 98SE). You will find an UNKNOWN DEVICE in the device manager (START/SETTING/ CONTROL PANEL/SYSTEM/DEVICE MANAGER). You have to install INF driver as shown below: Click INF in the MAGIC INSTALL MENU 2. -
Page 44: Vga Install On-Board Vga Driver
Click IDE when MAGIC INSTALL MENU Click NEXT when INTEL Ultra ATA appears Storage Wizard appears This is to announce the Copy Right click Click NEXT or BROWSE to change the path NEXT you want the driver stored Select if you want to re-start your computer You may choose to remove the driver or you and click Finish may remove it at ADD/REMOVE... -
Page 45: For Windows 95/98/98Se/Nt4.0
A. For WINDOWS 95/98/98SE/NT4.0 Click VGA when MAGIC INSTALL Click when INTEL 81X Family Chipset MENU appears Graphics Driver Software appears Click NEXT, this is to announce Copy Right 4. Select if you want to re-start computer and click Finish NOTE: The path of the file for WIN95 is X:\INTEL810\VGA\WIN95\SETUP.EXE... - Page 46 When WINDOWS 2000 appears, Double Click OTHER DEVICE/VIDEO click MY COMPUTER/CONTROL PANEL/ CONTROLLER (VGA COMPATIBLE) SYSTEM/HARDWARE/ DEVICE MANAGER Click DRIVER/UPDATE DRIVER Click Next when update driver wizard appears. Then choose DISPLAY A LIST OF THE KNOWN DRIVERS FOR THIS DEVICE SO THAT I CAN CHOOSE A SPECIFIC DRIVER.
-
Page 47: Pc-Health Installs Pc Health Monitor Iiii Software For Hardware Monitoring Device
Choose INTEL ® 82810E GRAPHICS When INSTALL FROM DISK appears, type X:\INTEL810\VGA\WIN2000, then CONTROLLER from DRIVER LIST, then click NEXT click NEXT. After Installation click NEXT, click FINISH and then Re-start the computer 4-4 PC-HEALTH installs PC HEALTH MONITOR IIII software for hardware monitoring device Click PC-HEALTH when MAGIC Click OK when PC HEALTH MONITOR... -
Page 48: Ac97 Sound Driver And The Program Install For Editing/Playback
AC97 sound driver and the program Install for editing/playback Click SOUND when MAGIC INSTALL Then auto detect operation system language MENU appears edition, click OK, start to install DRIVER 3. When ask Remove old device driver, Click 4. Click Finish and Restart Windows OK, Click GO 5. -
Page 49: Pc-Cillin
X:\CODEC\ALC200\WIN2000\SETUP.EXE (for WINDOWS 2000) 4-6 PC-CILLIN Install PC-CILLIN 2000 Anti-virus program Click PC-CILLIN when MAGIC INSTALL Click NEXT when PC-CILIN 2000 SETUP MENU Appears APPEARS. Then click YES when the announcement of copywrite appears. Software is starting to detect HD for virus Click NEXT and Enter User Information, Click NEXT and Choose all Internet Click NEXT or choose BROWSE to change... -
Page 50: How To Utilize Alsrack Editing & Playback Utility
Enter Your Setting. install the software. If you want to make a rescue disc, insert a Setup Complete and click Finish 1.44 MB disc Enter Your name and E-mail address 10. After install PC-cillin 2000 complete we Register PC-cillin 2000 or Click Cancel recommend select update item to download Register Later newest virus code and setting Auto refresh... -
Page 51: How To Utilize Pc-Health
Click START/PROGRAMS/AVANCE This utility it can play from CD the effect MEDIA PLAYER/ALSRACK. Then just like HI-FI stereo system, also it can play ALSRACK appears *.WAN, *.MID format file This is a sound environment simulator offering massive simulation including environment of opera pub stadium KARAOK playing having high low KEY tuning. -
Page 52: How To Disable On-Board Sound
STEP 2. Copy utility program to your boot disc. You may copy from DRIVER CD X:\ FLASH\AWDFLASH.EXE or download from our web site. STEP 3. Copy latest BIOS for IB3 from our web site to your boot disc. STEP 4. Insert your boot disc into A:, start the computer, type “Awdflash A:\IB3xxx.BIN /SN/PY/CC/R”...
