Next 186812 Assembly Instructions Manual

Flynn mirror wardrobe
Hide thumbs

Advertisement

Quick Links

Download this manual
Actual product size
H190.4 x W78.2cm x D50.2
IMPORTANT─ RETAIN FOR FUTURE REFERENCE
Produced in Italy for Next Retail Ltd.
186812 - 2018 - V2
FLYNN MIRROR WARDROBE
186812
Assembly instructions
Need Help?
With: Assembly instructions
Missing or damaged parts
CALL: 0333 777 8999

Advertisement

loading
Need help?

Need help?

Do you have a question about the 186812 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Next 186812

Summary of Contents for Next 186812

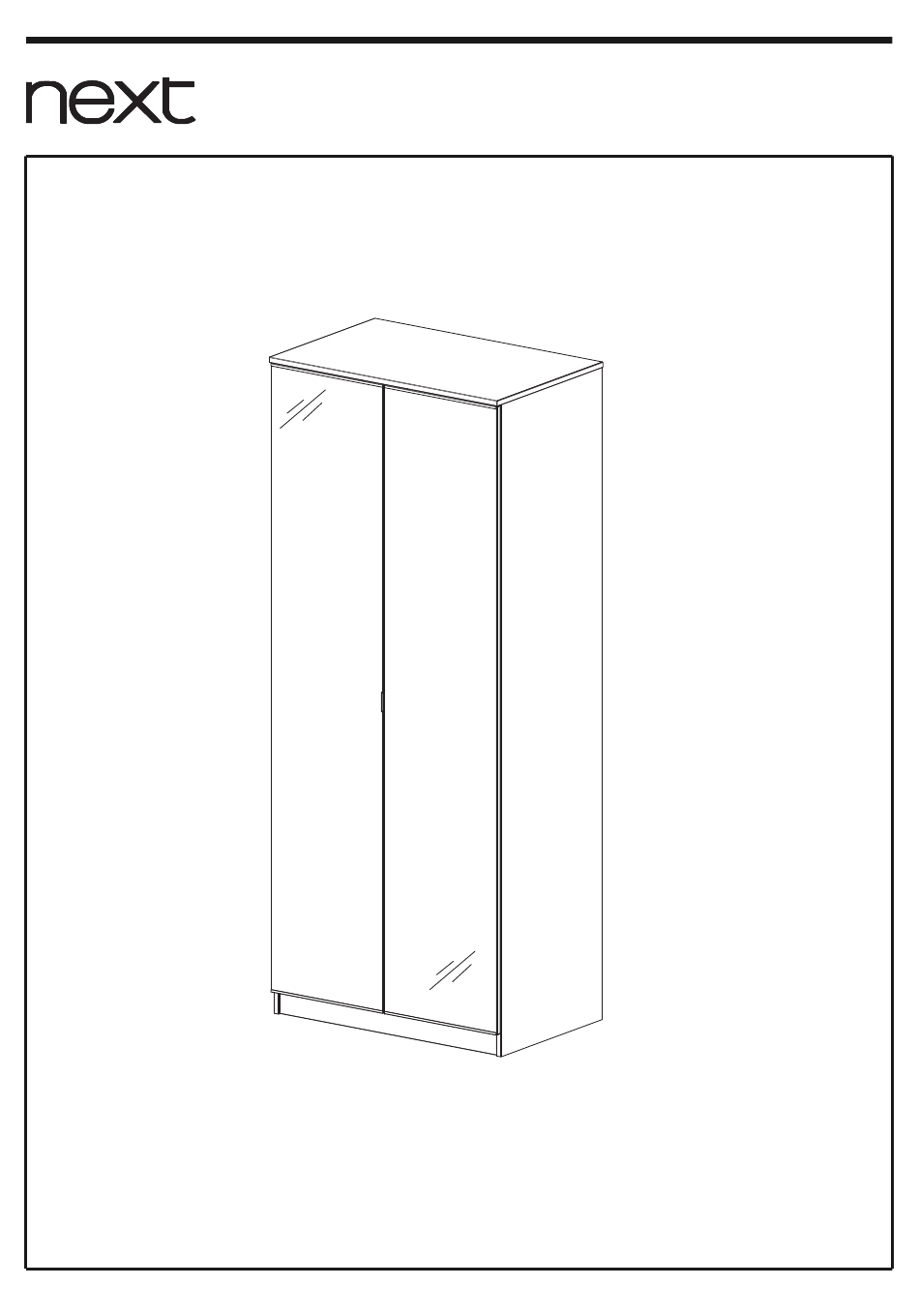

  • Page 1 Assembly instructions Actual product size H190.4 x W78.2cm x D50.2 Need Help? With: Assembly instructions Missing or damaged parts CALL: 0333 777 8999 IMPORTANT─ RETAIN FOR FUTURE REFERENCE Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...

  • Page 2: Before You Start

    Do not place hot items (e.g. hot drinks) directly on to the wood surface. Please make sure you use a placement or coaster. To View our full furniture range please visit www.next.co.uk PRODUCT SUPPLIED WITH WALL FIXING BRACKETS Produced in Italy for Next Retail Ltd.

  • Page 3: Getting To Know Your Product

    Dimensions Visual Qty Ctn 188 x 48cm 78 x 50cm 188 x 48cm 75 x 48cm 75 x 6.5cm 182 x 76cm 75 x 46cm 182 x 39cm Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 4 12.5mm 8 x 30mm 3.5 x 15mm 3.5 x 25mm 20 x 12.5mm 9 x 17mm 1,5 x 25mm Ø5 x 15mm Ø10 x 15mm 4 x 30mm Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 5 13x13x35mm Fixtures and fittings supplied (actual size) Dimensions Quantity 3.5 x 15mm Fixtures and fittings supplied (actual size) Dimensions Quantity 3.5 x 15mm Ø25 x 746mm U 76x32x15mm Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 6 FLYNN MIRROR WARDROBE 186812 Assembly instructions 3.5 x 15mm O x 1 D x 2 8 x 30mm C x 4 Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 7 15 x 12.5mm B x 4 12.5 WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR CORRECT WRONG 8 x 36mm A x 4 Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 8 FLYNN MIRROR WARDROBE 186812 Assembly instructions W x 6 N x 4 Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 9 FLYNN MIRROR WARDROBE 186812 Assembly instructions 8 x 30mm C x 4 15 x 12.5mm B x 4 12.5 Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 10 Assembly instructions WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR CORRECT WRONG 8 x 36mm A x 4 20 x 12.5mm F x 4 Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 11 FLYNN MIRROR WARDROBE 186812 Assembly instructions 8 x 30mm C x 2 15 x 12.5mm B x 2 12.5 Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 12 DON’T STOP UNTIL THE 2 O’CLOCK LOCK TURN THE CAM IN A CLOCKWISE DIRECTION UNTIL THE ARROW POINTS IN THE POSITIONS SHOWN IN THE DIAGRAMS BELOW START CORRECT LOCK Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 13 DON’T STOP UNTIL THE 2 O’CLOCK LOCK TURN THE CAM IN A CLOCKWISE DIRECTION UNTIL THE ARROW POINTS IN THE POSITIONS SHOWN IN THE DIAGRAMS BELOW START CORRECT LOCK Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 14 The cabinet MUST be ‘square’ when the back is attached. 1.5 x 25mm R x 1 H x 6 13x13x35mm 3.5 x 25mm P x 1 E x 3 Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 15 FLYNN MIRROR WARDROBE 186812 Assembly instructions Q x 12 Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 16 FLYNN MIRROR WARDROBE 186812 Assembly instructions Wall plug and screw not included. 76x32x15mm Ø5 x 15mm 3.5 x 15mm U x 2 i x 4 D x 2 Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 17 FLYNN MIRROR WARDROBE 186812 Assembly instructions S x 2 9 x 23mm Ø25x746mm 3.5 x 15mm V x 1 D x 6 G x 4 T x 1 Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 18 FLYNN MIRROR WARDROBE 186812 Assembly instructions 3.5 x 15mm X x 6 D x 12 Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 19 FLYNN MIRROR WARDROBE 186812 Assembly instructions 3.5 x 15mm J x 1 Z x 2 Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 20 Seek screws can easily sound. expert advice. pull away from the core structure Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 21 Retighten screw 'B'. c: Sideways adjustment To move Door 'OUT' at hinge position, slacken screw 'C' . To move Door 'IN' at hinge position, tighten screw 'C'. Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
  • Page 22 FLYNN MIRROR WARDROBE 186812 Assembly instructions Actual product size H190.4 x W78.2 x D50.2cm Produced in Italy for Next Retail Ltd. 186812 - 2018 - V2...
