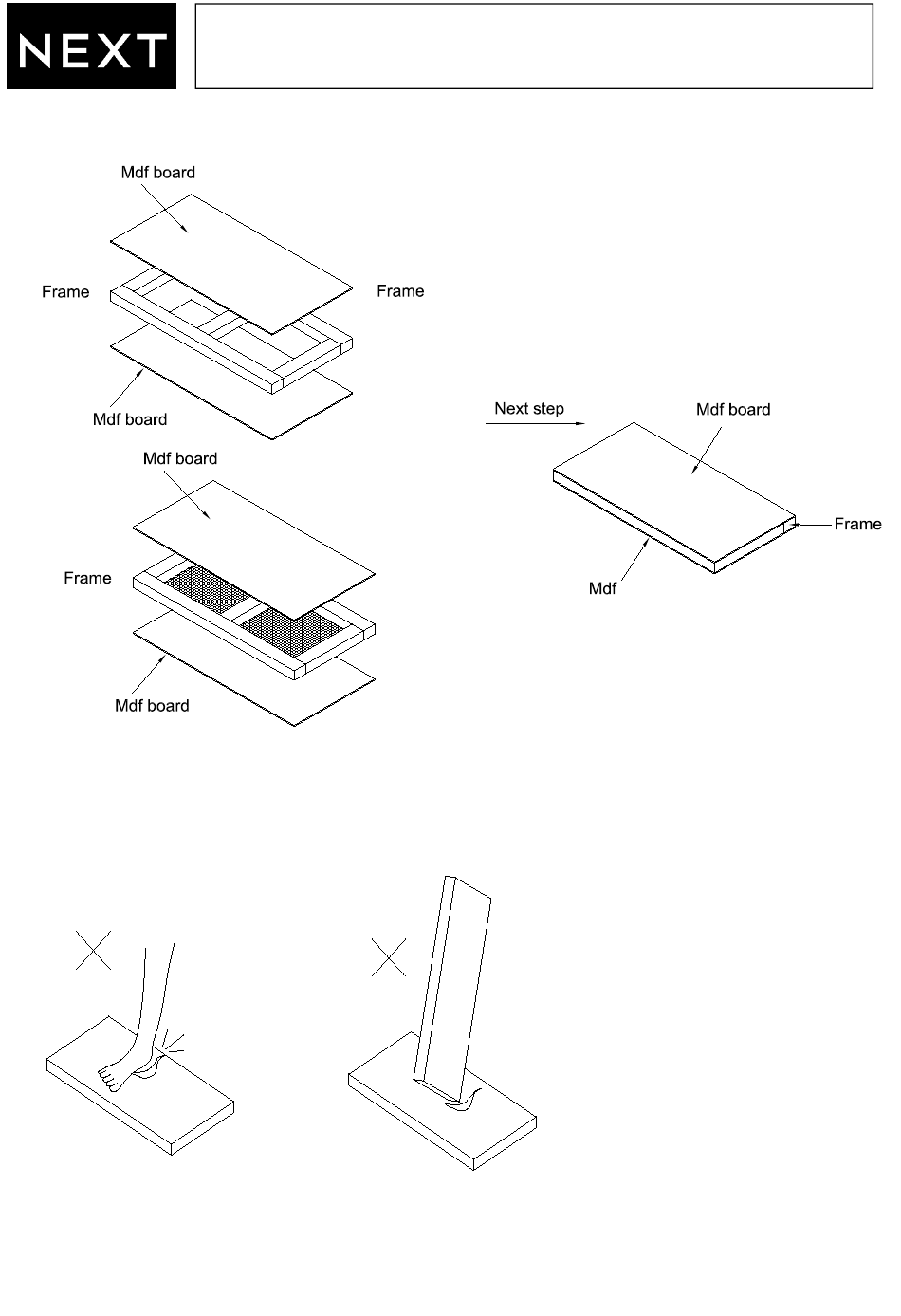

The structures of hollow board & honeycomb board are as below:
The centre of Hollow board & Honeycomb board is hollow. To avoid damaging the hollow
board/honeycomb board, we suggest you not step on the hollow board/honeycomb board or not
put other part on the board on the end when you assemble the product.
Next Retail Ltd, Desford Road, Enderby, Leicester, LE19 4AT
Care instructions for hollow board & Honeycomb
board during you assembling the product
