Summary of Contents for Next BROOKLYN 192155

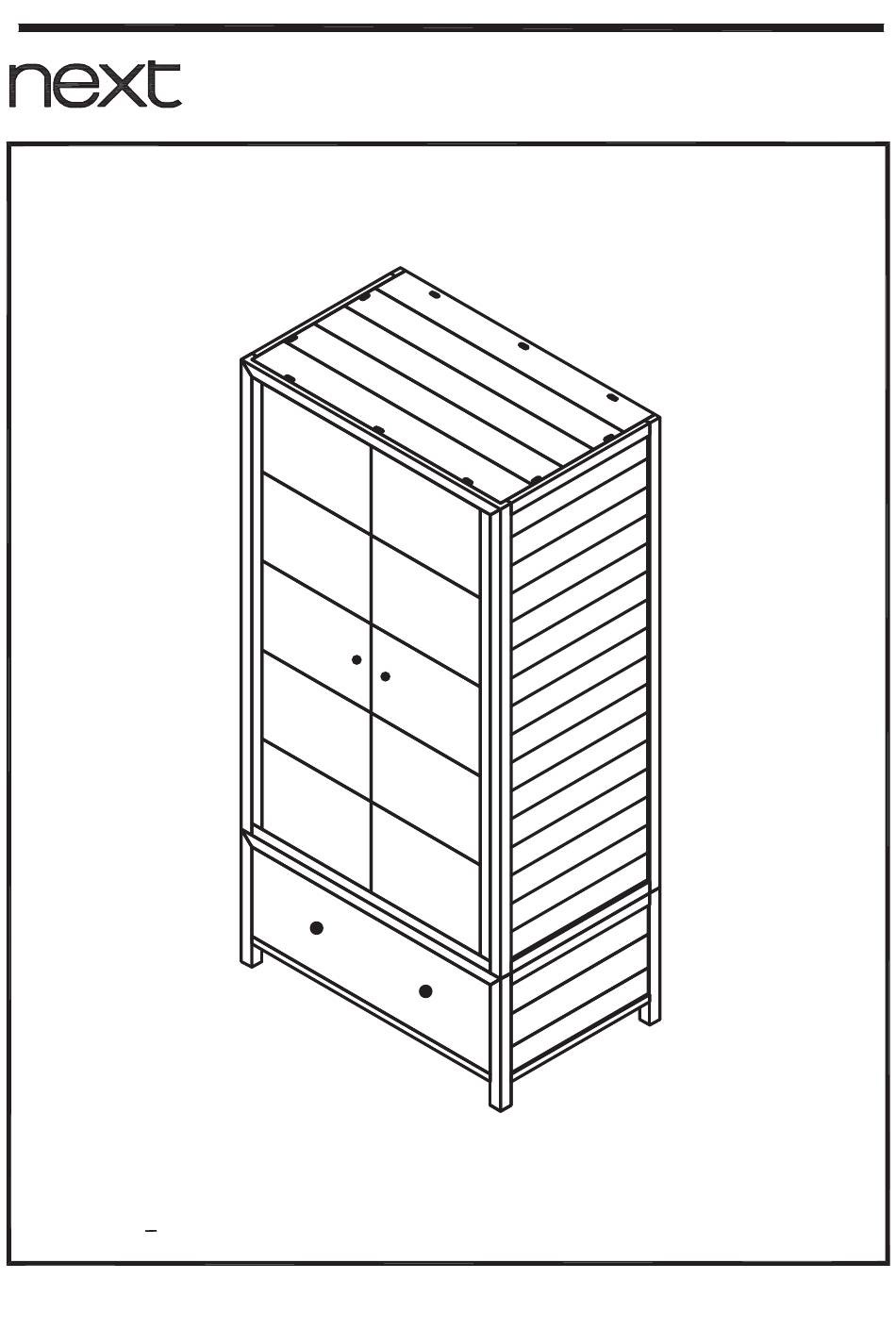

- Page 1 BROOKLYN DOUBLE WARDROBE 192155 Assembly instructions Actual product size H205 x W102 x D62.5cm Need Help? With: Assembly instructions Missing or damaged parts CALL: 0333 777 8999 IMPORTANT RETAIN FOR FUTURE REFERENCE Produced in Vietnam for Next Retail Ltd. 192155-2017-V1...
-
Page 2: Before You Start
Never allow any kind of liquid to remain on your furniture.Absorption can cause wood to warp or finishes to de-laminate. Do not place hot items(e.g.hot drinks) directly on to the wood surface. please make sure you use a placemat or coaster. Produced in Vietnam for Next Retail Ltd. 192155-2017-V1... -
Page 3: Getting To Know Your Product
BROOKLYN DOUBLE WARDROBE 192155 Assembly instructions GETTING TO KNOW YOUR PRODUCT Produced in Vietnam for Next Retail Ltd. 192155-2017-V1... - Page 4 Front Panel 160 x 102cm Base Section 45 x 102 x 62.5cm Left Panel 160 x 59.5cm Right Panel 160 x 59.5cm Back Panel 159 x 98cm Hanging Rail 97 x 3cm Produced in Vietnam for Next Retail Ltd. 192155-2017-V1...
- Page 5 BROOKLYN DOUBLE WARDROBE 192155 Assembly instructions 4x30mm 6x70mm Produced in Vietnam for Next Retail Ltd. 192155-2017-V1...
- Page 6 BROOKLYN DOUBLE WARDROBE 192155 Assembly instructions THIS WAY UP Attach the back panel to the two side panels using screws (A) and washers (B) Produced in Vietnam for Next Retail Ltd. 192155-2017-V1...
- Page 7 BROOKLYN DOUBLE WARDROBE 192155 Assembly instructions THIS WAY UP Attach the front panel to the two side panels using screws (A) and washers (B) Produced in Vietnam for Next Retail Ltd. 192155-2017-V1...
- Page 8 BROOKLYN DOUBLE WARDROBE 192155 Assembly instructions Attach the top panel to the back, front and side panels using screws (A) and washers (B) Produced in Vietnam for Next Retail Ltd. 192155-2017-V1...
- Page 9 BROOKLYN DOUBLE WARDROBE BROOKLYN DOUBLE WARDROBE 192155 192155 Assembly instructions Assembly instructions Attach the back, front and side panels to the base section using screws (C) Produced in Vietnam for Next Retail Ltd. Produced in Vietnam for Next Retail Ltd. 192155-2017-V1 192155-2017-V1...
- Page 10 BROOKLYN DOUBLE WARDROBE 192155 Assembly instructions Place bottom panel at the bottom of back, front and side panels Produced in Vietnam for Next Retail Ltd. Produced in Vietnam for Next Retail Ltd. 192155-2017-V1 192155-2017-V1...
- Page 11 BROOKLYN DOUBLE WARDROBE 192155 Assembly instructions Insert shelf and/or hanging rail as required Produced in Vietnam for Next Retail Ltd. Produced in Vietnam for Next Retail Ltd. 192155-2017-V1 192155-2017-V1...
-
Page 12: Missing Parts
You can write to us at Home Customer Services Next Retail Ltd, Desford Road, Leicester, LE19 4AT To view our full furniture range please visit www.next.co.u k PRODUCT SUPPLIED WITH WALL FIXING STRAPS Produced in Vietnam for Next Retail Ltd. 192155-2017-V1...
