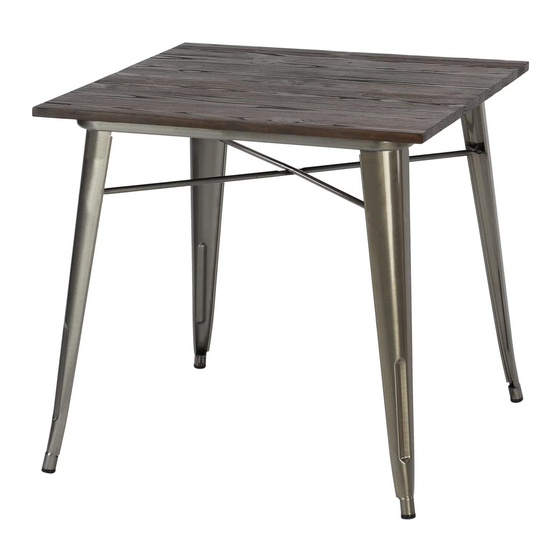

Square Dining Table
2138459UK - Antique Gun Metal
2138059UK - Black
2138159UK - White
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
B342138459CLUK
W.X. - 2019.11. 20
1
© 2014 Dorel Home Products All Rights Reserved
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dorel Home Products 2138459UK
Summary of Contents for Dorel Home Products 2138459UK
- Page 1 Square Dining Table 2138459UK - Antique Gun Metal 2138059UK - Black 2138159UK - White THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B342138459CLUK W.X. - 2019.11. 20 © 2014 Dorel Home Products All Rights Reserved...
- Page 2 Read Before Beginning Assembly ● Call 01942 524100 if you need assistance. ● Work in a spacious area, preferably on a carpet, near where the unit will be used. ● Recommended # of people needed for assembly: 2 (however it is always better to have an extra hand).
- Page 3 Parts Replacement Parts, visit All in 1 big box! Before you throw the package, please use the Cross Bar Check Box to identify the parts and ensure that you have all the parts needed for the assembly.
-
Page 4: Hardware Pack
Hardware Pack Hardware Pack #: T2138459-00 M6 X 16mm X 16 Allen Key Please do not completely tighten all the hardware, until the entire assembly is completed, unless otherwise indicated in the step-by-step instructions. The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page. - Page 5 Step 1 ❶ Attach B x 4 to A with , as shown. X 12...
- Page 6 Step 2 ❶ Attach C to B x 4 with , as shown.
-
Page 7: Helpful Hints
Helpful Hints Helpful Hints Weight Limit: 50 Lb /23 Kg ● Move your new furniture carefully, with two people lifting and carrying the unit to it's new location. ● Your furniture can be disassembled and reassembled to move. ● Clean the product with your favorite furniture polish and soft cloth.
