Summary of Contents for Brada Appliances YPL3-10C

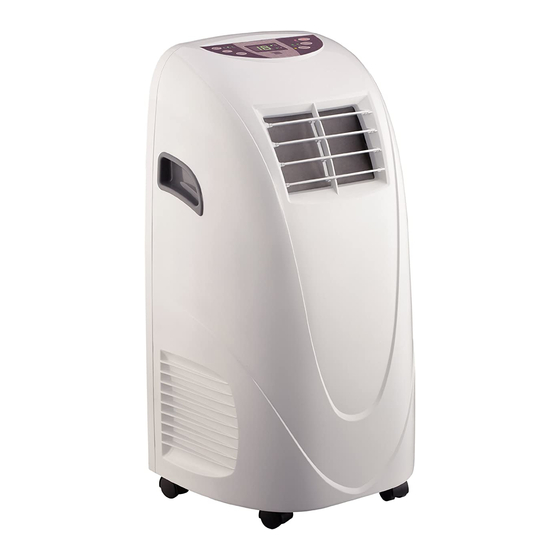

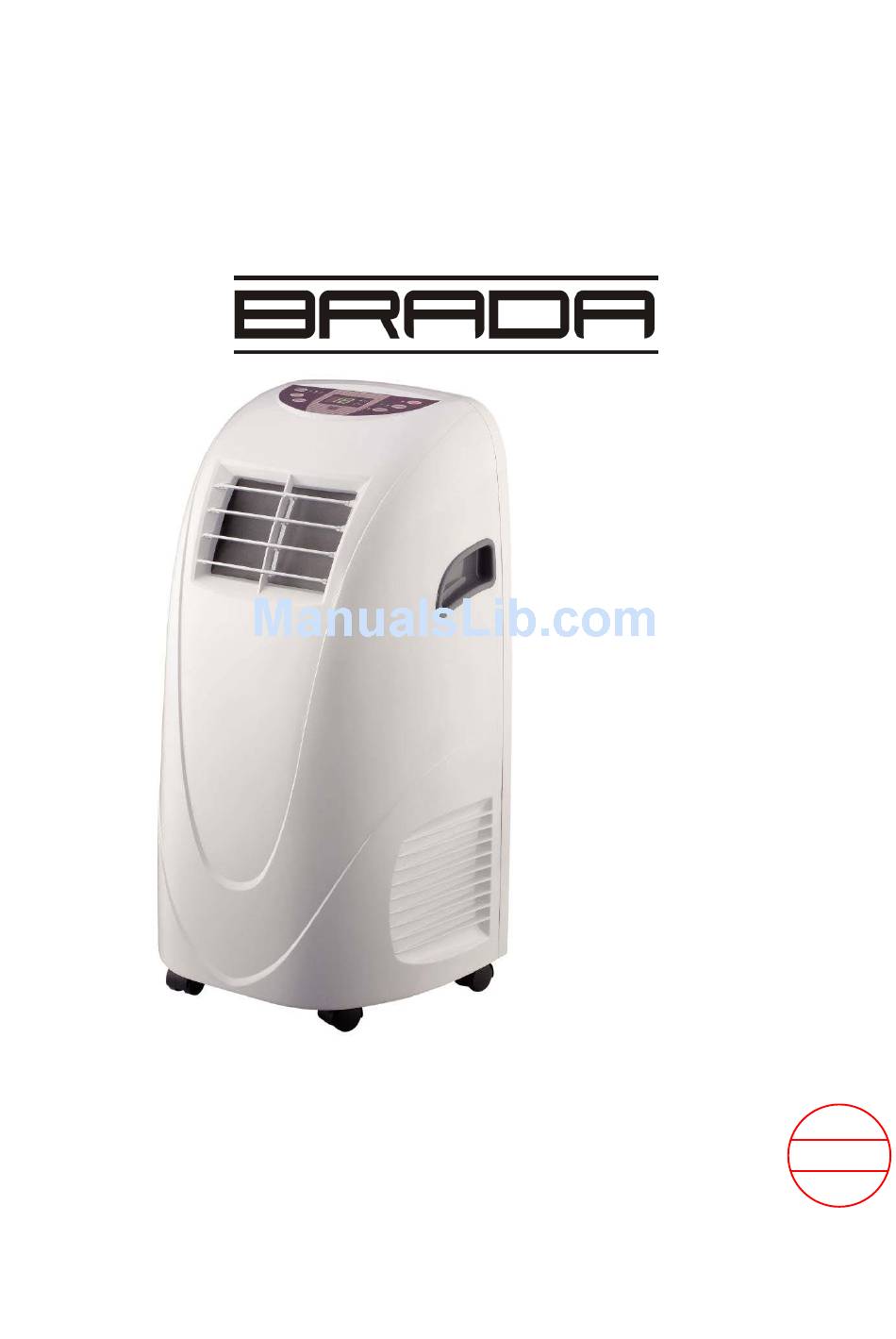

- Page 1 Portable Air Conditioner Instruction Manual YPL3-10C Please read the instructions completely before using this product 2011.02.21 This product is designed for household use only. 受控 FOR SERVICE : CALL TRANS GLOBAL SERVICE 1-800-360-2742...
-
Page 2: Table Of Contents
CONTENT INTRODUCTION …...2 SAFETY …... 5 INSTALLATION …... 6 PART NAME …... 7 CONTROL PANEL ..9 REMOTE CONTROL .... .10 OPERATION METHODS ..11 WATER DRAINAGE …..12 MAINTENANCE ..12 TROUBLESHOOTING …...13... -
Page 3: Introduction
INTRODUCTION Thank you for choosing Our Portable Air Conditioner. Please read this manual carefully before using this product. The following tips may help to maximize the efficiency of your air conditioner: • When the air conditioner is on, keep doors and windows closed. -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed: 1. Read all instructions 2. To protect against fire, electric shock and personal injury, do not immerse cord, plugs, or the unit in water or other liquid. 3. -
Page 5: Lcdi Power Cord And Plug
LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug. The LCDI power cord and plug will shut off the supply source via electrical disconnect (circuit trip) if the nominal current leakage between the cord shield and either load conductor exceeds a predetermined value. -
Page 6: Safety
Special recommendations: Install the portable air conditioner on a flat location with a large space, without obstacles. Leave a 50cm minimum space between the unit and the wall. The plug shall be always accessible after its installation. -
Page 7: Installation
Plug into the wall socket before switching on the appliance then press on the ON/OFF button. THE MANUFACTURER WILL NOT ASSUME ANY RESPONSIBILITY IN CASE OF NON ADHERENCE TO THESE INSTRUCTIONS. READ THIS USER MANUAL CAREFULLY. INSTALLATION Selection of installation location Keep the unit on a flat surface and dry place. -
Page 8: Part Name
Incorrect mounting WARNING The length of the exhaust pipe is specially designed according to the specification of this product. Do not replace or prolong it with your own private hose as this could cause mal-function. BE CAREFUL: Maximum developed length of the exhaust pipe is 1500mm. Use the shortest possible length. - Page 9 9. Handle Back 10. Exhaust air outlet vent 11. Power cord 12. Big filter 13. Small filter 14. Draining hole Check all the accessories included in the package and please refer to the installation instructions for their usage. Accessories Adapter Exhaust pipe Window slider kit B Window slider kit A...
-
Page 10: Control Panel
CONTROL PANEL 1. POWER button: press this button to turn on/off the unit. 2. MODE button: press this button to select Cooling, Automatic adjusting mode or Fan mode SPEED button: press this button to select high, low fan speed Timer: when stand-by time press this key to set automatic time on; when running time press this key to set automatic time off. -
Page 11: Remote Control
REMOTE CONTROL 1. Power 2. Celsius and Fahrenheit exchange button 3. Fan button 4. Cool Mode Button 5. Auto mode button 6. Down button 7. Up button 8. High fan speed button 9. Low fan speed button 10. Max cool button 11. -
Page 12: Operation Methods
OPERATION METHODS Cooling mode Default Cool mode after operating the machine or press Mode button to choose Cool mode, the Cool mode indicator will flash. ·Press UP or DOWN button to set room temperature between 17℃ to 30℃. ·Press FAN SPEED button (or High/Low button) to select high, low fan speed. Fan mode ·Press Fan button to choose Fan mode, the Fan mode indicator will flash. -
Page 13: Water Drainage
This product has a self-evaporative system. The condensing water will be recycled to cool the condenser. This can not only improve cooling efficiency, but also save energy for you. · If the inside water is full, the display panel will display “FL”, and the compressor will stop running. -
Page 14: Troubleshooting
End of season ·Please drain the water. ·Keep the unit running in Fan mode for two hours until the inside of the unit is dry. ·Turn off the unit and unplug it. ·Clean the air filter and after dry it thoroughly, reinstall it. ·Remove the exhaust pipes and keep them carefully.
Need help?
Do you have a question about the YPL3-10C and is the answer not in the manual?
Questions and answers

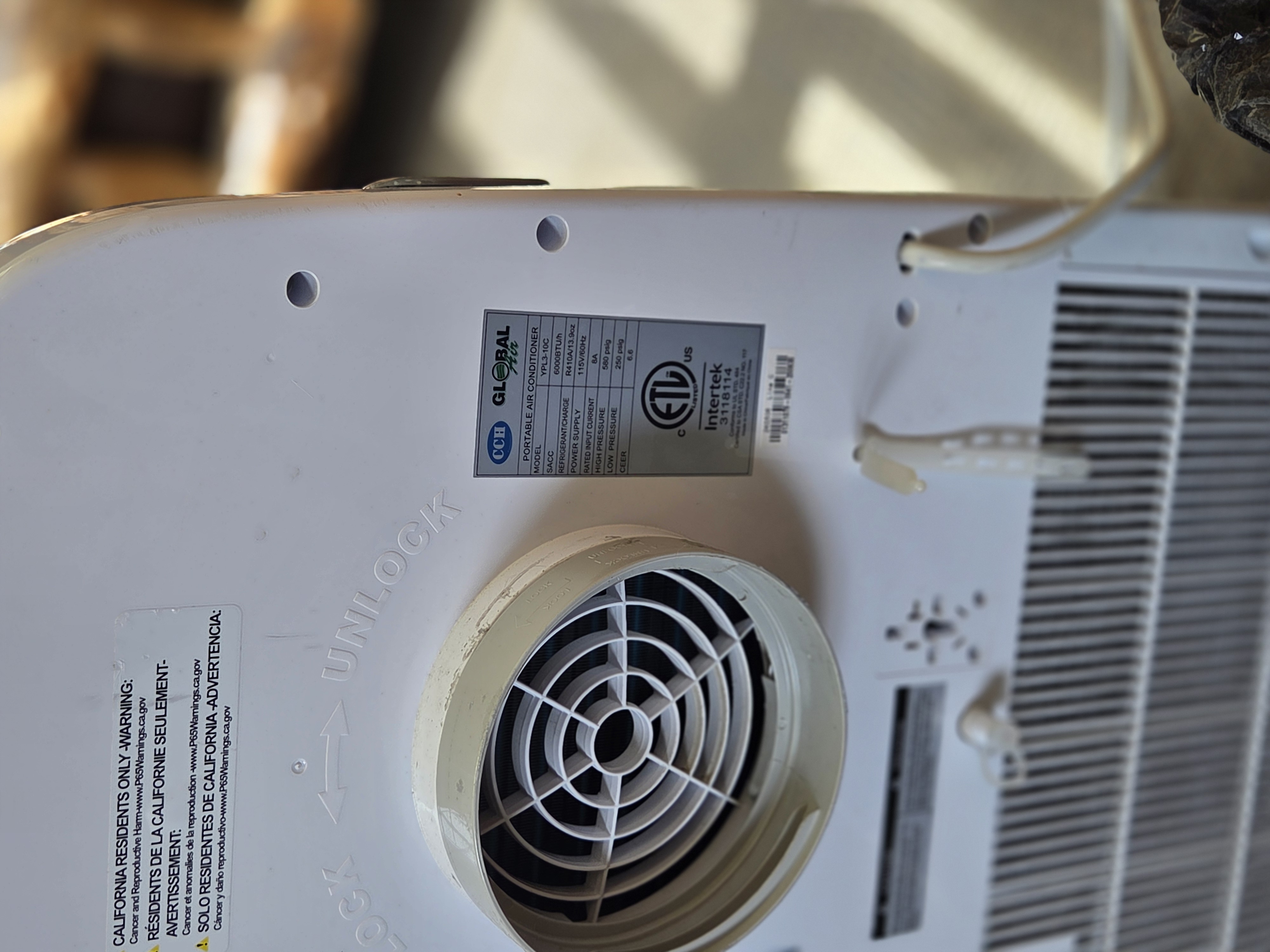

Part number and cost of blower motor.
