Vestil RDC 1000 5PU Assembly Instructions Manual

Vestil RDC 1000 5PU Assembly Instructions Manual

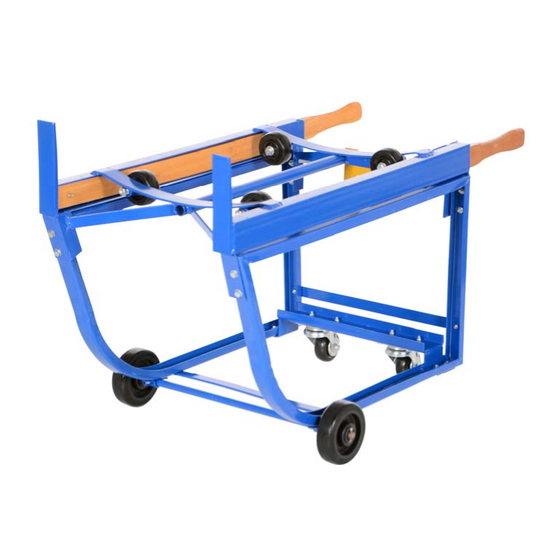

Rotating drum carts

Advertisement

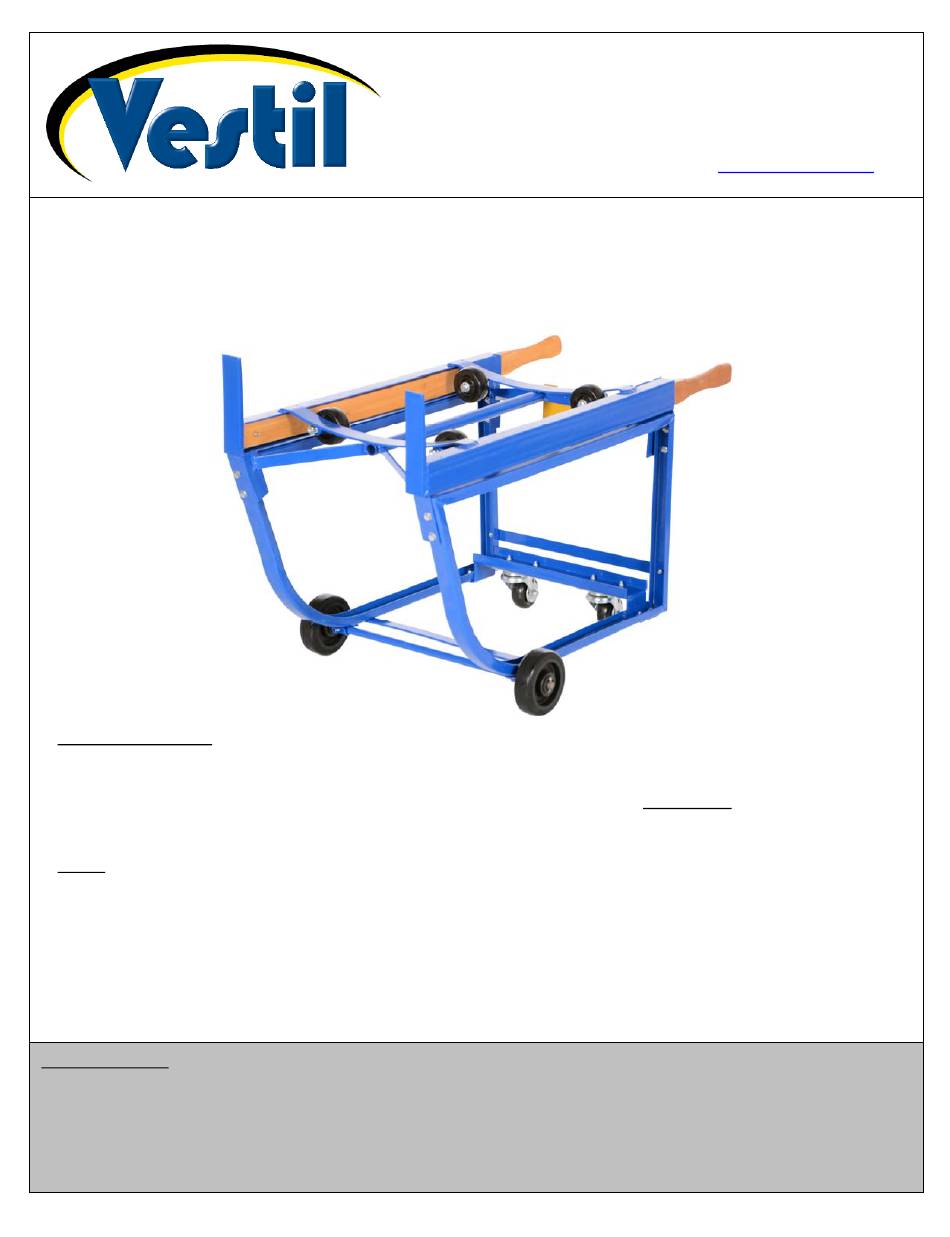

RDC-1000
Receiving instructions:
After delivery, immediately remove the packaging from the product in a manner that preserves the packaging and
maintains the orientation of the product in the packaging; then inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered during the inspection, immediately record a complete
description of the damage on the bill of lading. If the product is undamaged, discard the packaging.

NOTES:


1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the product
is used is exclusively the responsibility of the owner/end-user.

2) Vestil is not liable for any injury or property damage that occurs as a consequence of failing to apply either:
a) Instructions in this manual; or
b) Information provided on labels affixed to the product. Neither is Vestil responsible for any consequential
damages sustained as a result of failing to exercise sound judgment while assembling, installing, using or maintaining
this product.
Table of Contents
Product Specifications by Model........................ .......................................................................................................................................................  2
Safety Guidelines....................................................................................................................................................................................................  2
Components................................................................................................................................................................................................................... 3
Assembly instructions............................................................................................................................................................................................. 4 - 7
Copyright 2015 Vestil Manufacturing Corp.
Rev. 9/14/2015
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586  -or-  Toll Free (800) 348-0868
www.vestilmfg.com    e-mail: sales@vestil.com
R

OTATING
A
I
SSEMBLY
NSTRUCTIONS
LSC-3052-PCW, MANUAL.doc
V
M
ESTIL
ANUFACTURING
Fax: (260) 665-1339
D
C
RUM
C
ORP

ARTS
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RDC 1000 5PU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vestil RDC 1000 5PU

  • Page 1 RUM  ARTS SSEMBLY  NSTRUCTIONS Receiving instructions:   After delivery, immediately remove the packaging from the product in a manner that preserves the packaging and  maintains the orientation of the product in the packaging; then inspect the product closely to determine whether it  sustained damage during transport. If damage is discovered during the inspection, immediately record a complete  description of the damage on the bill of lading. If the product is undamaged, discard the packaging.    NOTES:     1) Compliance with laws, regulations, codes, and non‐voluntary standards enforced in the location where the product  is used is exclusively the responsibility of the owner/end‐user.    2) Vestil is not liable for any injury or property damage that occurs as a consequence of failing to apply either:   a) Instructions in this manual; or   b) Information provided on labels affixed to the product. Neither is Vestil responsible for any consequential  damages sustained as a result of failing to exercise sound judgment while assembling, installing, using or maintaining  this product. Table of Contents  Hazard identification: explanation of signal words……………………………………………………………………………………………………………………………….. 2  Product Specifications by Model…………………... …………………………………………………………………………………………………………………………………….  2  Safety Guidelines………………………………………………………………………………………………………................  2   Components………………………………………….……………………………………………………………………………………………………………………..………………………. 3  Assembly instructions………………………………………………………………………………………………………………………………………………….………………….. 4 ‐ 7  Limited warranty………………………………………………………………………………………………………………………………………………………………………………….. 8  Copyright 2015 Vestil Manufacturing Corp. Page 1 of 8...
  • Page 2   If  this  product  is  used  improperly  or  carelessly,  the  user  and/or  bystanders  might  sustain  serious  personal injuries.  To reduce the likelihood of injury:   Read and understand the entire manual before assembling, using or maintaining the cart. Failure to do so is a  misuse of the product.   DO  NOT  modify  the  product  in  any  way  UNLESS  you  first  obtain  written  approval  from  Vestil.  Unauthorized  modifications automatically void the Limited Warranty (p. 7) and might make the product unsafe to use.   DO NOT attempt to carry or transport loads that exceed the capacity of the cart.    ALWAYS secure drums to the cart with the (yellow) drum lock. ...
  • Page 3   coupler; M8 lock  & M13 hex lock  nut; M10 flat    nuts  washer     L: Handle assembly    M: Pneumatic tires        Clevis  pin  Back  N: Steering assembly  8mm flat  washer  Front end  Hitch pin    Cross bracket  k arm    Back end                        P: Rear axle weldment        Q: Undercarriage frame Copyright 2015 Vestil Manufacturing Corp. Page 3 of 8...
  • Page 4 (see FIG. 2A).        FIG. 2A: Wheels         Valve  Axle receiver    Spacer       stem      Rear axle                                                             Outer face Inner face   Copyright 2015 Vestil Manufacturing Corp. Page 4 of 8...
  • Page 5     round head bolts lock nut            Cross brace                          M13 flat washer  Wheel post        5. Attach the rear wheel assembly to the undercarriage frame with M10 x 18mm bolts and M10 hex lock nuts  as shown above.        Copyright 2015 Vestil Manufacturing Corp. Page 5 of 8...
  • Page 6   7. Attach the handle to the steering assembly (refer to FIG. 5 below).  a) Slide the end of the handle into the handle coupler (A) and align the bolt holes in the handle with the bolt  holes in the coupler; then  b) Slide the M12 x 6mm round head bolt (H) through one side of the handle bracket (also identified in FIG. 3  on p. 5), through the coupler and handle, and through the other side of the bracket;  c) Secure the handle bolt with a flat washer and lock nut.               FIG. 5: Attach handle to steering assembly                     Handle  M12 x  coupler (A) 60mm  round  Lock  head bolt nut  Flat washer Handle  bracket Copyright 2015 Vestil Manufacturing Corp. Page 6 of 8...
  • Page 7 8.  Multiple carts can be hitched together by removing the formed end of the handle and connecting the handle  shaft to the receiver of another cart.   remove the formed end of the handle, first pull the hitch pin out of the clevis pin; then remove the washer and  clevis pin. Align the pinhole in the hitch bracket of the handle with the pinhole in the receiver of the second cart;  then install the clevis pin and secure it in place with the flat washer and hitch pin. (See FIG. 6 below).  Clevis pin  Hitch bracket Handle shaft Hitch  Washer  clip  Washer Remove hitch pin  and washer; then  Clevis pin  remove clevis pin  Formed end  Hitch  of handle clip  FIG. 6: Connecting two carts with handle  Remove formed      Pin handle shaft to the receiver of second cart end of handle      Hitch receiver  Handle  shaft Copyright 2015 Vestil Manufacturing Corp. Page 7 of 8...
  • Page 8 (you) for warranty service. Who may request service? Only a warrantee may request service. You are a warrantee if you purchased the product from Vestil or from an authorized distributor AND Vestil has been fully paid.

This manual is also suitable for:

Rdc 1000 5poRdc 1000 5ss

Table of Contents
