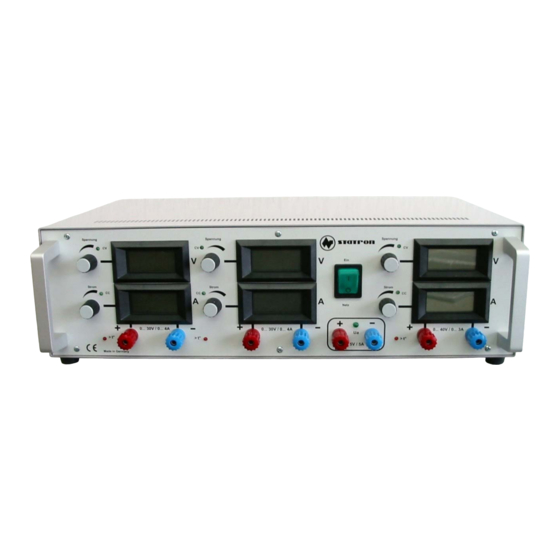

STATRON 3225.71 Operating Instruction

Lab power supply unit
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

The intended application of the power supply unit covers:
-
link and operation of low-voltage consumers with an operating voltage between 2x(0 to 30 VDC) and 1x (0 to
40VDC/0-3A . Fixed output 5VDC/5A The power input of the consumer may not exceed 4,0 A. Output 1 to 3 can
be connect parallel or series.
Read this guidance exactly. With damage, which is caused by neglect of the guidance, the warranty claim goes
-
out. For damages we do not take over adhesion.

1. introduction

this power supply unit is universally applicable with its infinitely variable adjustment possibilities of voltage and
current for school, occupation, hobby etc.. An electronic current limiting protects the power supply unit against
overloading. Output voltage and - current are electronically stabilized and infinitely variable adjustable. Thus the

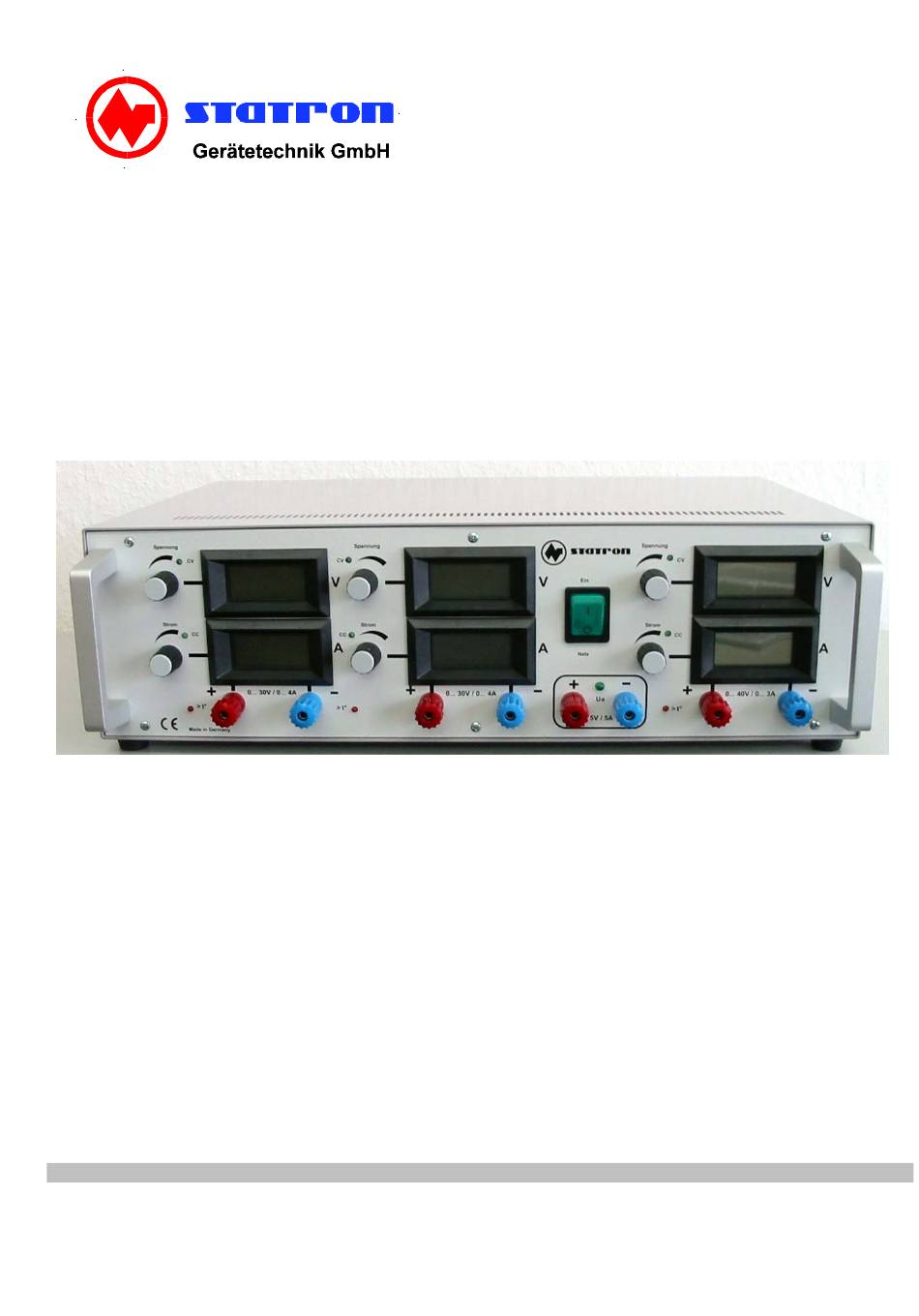

Operating instruction lab
power supply unit
type 3225.71
Note! Absolutely read!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3225.71 and is the answer not in the manual?

Questions and answers

Related Manuals for STATRON 3225.71

Summary of Contents for STATRON 3225.71

  • Page 1 Operating instruction lab power supply unit type 3225.71 The intended application of the power supply unit covers: link and operation of low-voltage consumers with an operating voltage between 2x(0 to 30 VDC) and 1x (0 to 40VDC/0-3A . Fixed output 5VDC/5A The power input of the consumer may not exceed 4,0 A. Output 1 to 3 can be connect parallel or series.
  • Page 2 electronic restraint current can as adjustable Current limiting to be used, in order to protect consumers against a too high power input. In the case of an overloading the output voltage is then lowered accordingly (in the case of short- circuit on close 0V).
  • Page 3 - the unit no longer works - it has been stored for a long time under unsuitable conditions - it has been transported under difficult conditions 3. Controls 1-power switsch 2 4mm sockets source 1 3 4mm sockets source 2 4 4mm sockets source 3 5 4mm sockets source 3 6 LCD - voltage display source 1...
  • Page 4 EN 61010 ; EN 61558-2-4 safety class dimensions WxHxD mm 451 x 134 x 324 weight electromagnetic compatibility EN 61000-6-3 ; EN 61000-6-2 Statron Gerätetechnik GmbH Ehrenfried-Jopp-Straße 59 15517 Fürstenwalde Tel.: (03361) 37 21 01 Fax: (03361) 37 21 03 e-Mail : statron@statron.de...
