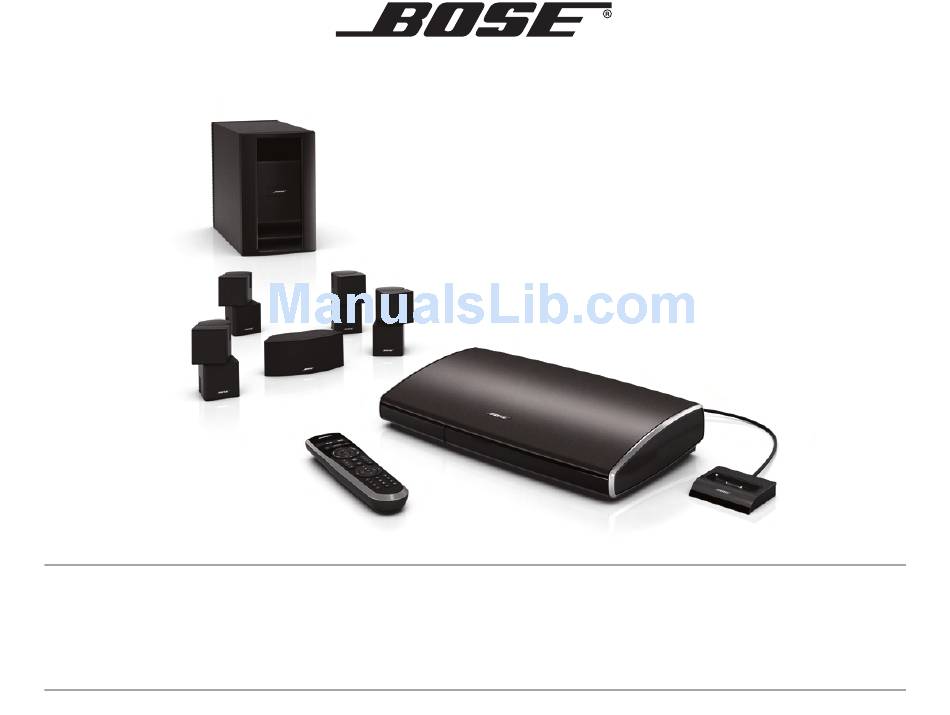

- Page 1 ® IFESTYLE V35/V25 NTERTAINMENT YSTEMS ® T20/ T10 IFESTYLE HEATER YSTEMS Setup Guide | Guía de instalación | Guide d'installation...
- Page 2 This product conforms to all EU Directive requirements as applicable by law. The complete Declaration of Conformity can be found at www.Bose.com/compliance. ©2010 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used without prior written permission. TAB 2...
-
Page 3: System Setup
If any part appears damaged, do not attempt to use it. Notify Bose or your authorized Bose dealer immediately. For Bose contact information, refer to the address sheet included in Kit 4. -
Page 4: Table Of Contents
TAB 8 TAB 7 TAB 6 YSTEM ETUP Control console kit What you need for the following steps: From Kit 1 Power supply Control console Audio input cable From the power cord kit Power cord TAB 5 TAB 4 1. Place the control console on a flat, stable surface near your TV. - Page 5 English TAB 2 TAB 3 2. Plug one end of the HDMI cable into an HDMI INPUT connector on your TV. If an HDMI cable is already connected to an HDMI input on your TV, you can use this one. Just disconnect the other end.
-
Page 6: From The Power Cord Kit
TAB 8 TAB 7 TAB 6 YSTEM ETUP 4. Plug one end of the audio input cable into the Acoustimass ® Module connector on the control console. Make sure the flat surface with the arrow on the plug faces up. Leave the other end of the cable on the floor. - Page 7 English TAB 2 TAB 3 ® Acoustimass module kit What you need for the following steps: From Kit 2 Acoustimass module From the power cord kit Power cord TAB 4 TAB 5 TAB 6 1. Place the Acoustimass module on the floor at the same end of the room as the TV.
- Page 8 TAB 8 TAB 7 TAB 6 YSTEM ETUP CAUTION: DO NOT stand the Acoustimass module on its front or back end. 3. Plug the free end of the audio input cable into the Media Center connector on the Acoustimass module. Make sure the flat surface with the arrow faces the front of the module.
-
Page 9: Speaker Kit
Rear speaker cables Left rear (LR) Light green Note: You can place system speakers on wall brackets or floor stands. To purchase these accessories, contact your local Bose dealer or visit www.Bose.com. TAB 7 TAB 8 YSTEM ETUP Right front (R) - Page 10 TAB 8 TAB 7 TAB 6 YSTEM ETUP 1. Place the center front speaker on a stable and level surface directly above or below the center of your TV screen as in the following example. Left front (L) Center front TAB 5 TAB 4 2.
- Page 11 English TAB 2 TAB 3 3. Place the rear speakers toward the back of the room behind the viewers at ear height (when seated) or higher, if possible. Left rear (LR) Right rear (RR) • Make sure the 50 ft (15.2 m) rear speaker cables will reach from the speakers to the Acoustimass module.
- Page 12 TAB 8 TAB 7 TAB 6 YSTEM ETUP 6. Locate the speaker position markings on the free ends of the speaker cables. Speaker position marking (L, C, R, LR, or RR) TAB 5 TAB 4 TAB 3 7. Using the speaker position markings, run each cable out to its respective speaker as in the following setup example of a room.
- Page 13 English TAB 2 TAB 3 8. Connect the speaker cable to the type of speaker you have. For Jewel Cube ® speakers: Insert the plug into the speaker connector. For Direct/Reflecting ® Virtually Invisible ® single cube speakers: Press the button and insert the wires.
-
Page 14: Interactive Kit
TAB 8 TAB 7 TAB 6 YSTEM ETUP Interactive kit What you need for the following steps: From Kit 4 Remote control ADAPTiQ with batteries calibration headset Congratulations! At this point you have set up the control console, the Acoustimass ®... - Page 15 • Select your language. • Optimize the audio from your system using the ® ADAPTiQ audio calibration system. • Connect audio/video devices to the control console. • Configure your Bose ® remote to control your connected devices. TAB 4 TAB 5 TAB 6...
-
Page 16: Applying Rubber Feet
For help in trying to resolve any problems, see the troubleshooting table in your system operating guide. Contacting customer service For additional help in solving problems, contact Bose Customer Service. See the address sheet included in Kit 4. Applicable only for LIFESTYLE home entertainment systems “Made for iPod”... - Page 17 English TAB 2 TAB 3 TAB 4 TAB 5 TAB 6 TAB 7 TAB 8...
- Page 18 ©2010 Bose Corporation, The Mountain, Framingham, MA 01701-9168 USA AM324443 Rev.00...
