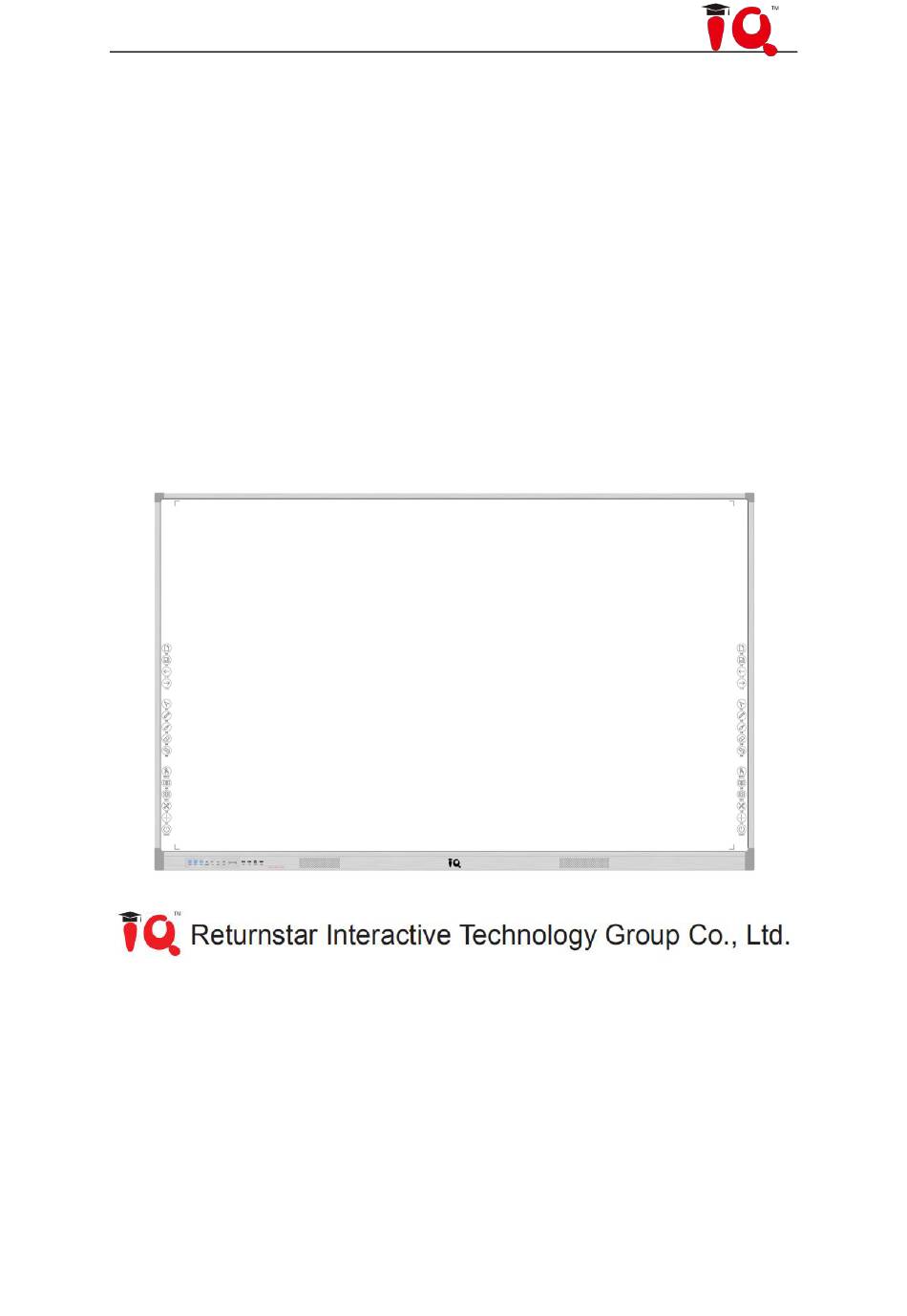

- Page 1 IQAio Interactive Whiteboard All-In-One GR519 Series ——User Manual——...
-
Page 2: Table Of Contents
Content Chapter One - Product Model and Standard Configuration.............. 3 Chapter Two - Product Structure and Installation Method..............4 1. Appearance......................... 4 2. Dimensions......................... 4 3. Installation.......................... 4 Chapter Three - Function Introduction of the Equipment..............6 ..........6 Introduction of Central Control Panel Buttons and Ports Function 2. -
Page 3: Chapter One - Product Model And Standard Configuration
Chapter One - Product Model and Standard Configuration IQAio Interactive whiteboard all-in-one(Here in after referred to IQAio), Highly integrated infrared interactive whiteboard, OPS computer, central control, power amplifier, speaker, wireless microphone etc. as one. There is no need to consider about the complex wiring between equipment, and installation is very easy.With aluminum alloy ultra-narrow frame, the overall appearance is simple, and rich in technology. -
Page 4: Chapter Two - Product Structure And Installation Method
Chapter Two - Product Structure and Installation Method 1. Appearance 2. Dimensions Overall Projected Maximum Projection Overall Model Dimension Dimension Thickness Ratio Dimension (mm) （inch） （inch） （mm） GR519-100W 107.7 16:10 2319*1460 GR519-100H 107.7 16:9 2373*1370 GR519-92W 16:10 2093*1246 GR519-92H 16:9 2373*1370 GR519-80X 87.5... - Page 5 3). Insert the expansion rubber plug into the hole that has been punched, and then fix the fixed bracket B to the wall with the self-tapping screws in the accessory box; 4). Hang IQAio directly on fixed bracket B and then adjust projection position;...
-
Page 6: Chapter Three - Function Introduction Of The Equipment
9). Hang IQAio on the fixed bracket that have been installed, and then fix the upper and lower four mounting brackets with eight M4*12 round head screws with gasket. And the installation is complete. Chapter Three - Function Introduction of the Equipment 1. - Page 7 amplifier.When under power-off status, with one key, the built-in central control, power amplifier, built-in OPS computer, projector, and built-in whiteboard will be opened. It will light up after complete. Button Long press it for 3 seconds, it can independently control the switch of the built-in OPS computer Indicator light Off: built-in OPS computer is under power-off status.
-
Page 8: Central Control And Power Port
USB port and USB flash disk etc. Connect to the USB port of external computer. After connected, the touch function of the IQ USB built-in whiteboard, the audio and power amplifier function,and the handheld microphone page turning function all can work. - Page 9 Connect to the VGA out port on motherboard or VGA in GPU of external computer 2) Back port (the port is at the lower left of the backboard of whiteboard, facing the outside of the backboard) OPS slot Compatible size, 19.5±0.5mm long, 18.1±0.5mm wide , 30±0.5mm thick or 42±0.5mm thick OPS computer 3) Back port (above the backboard central control port) DC power input...
-
Page 10: Chapter Four - Main Technical Parameter
Chapter Four - Main Technical Parameter Working power: DC19V ≥4.72A （≥90W） Maximum power: 90W Wireless microphone range: ≥15m (open environment) Power amplifier and speaker power: amplifier power: 2*25W, speaker power: 2*15W Intelligent central control audio in channel: 3 channels, including front and rear USB audio, and rear 3.5mm audio in Intelligent central control audio out channel: 2 channels, including rear 3.5mm AUX mixed audio and power amplifier audio out... -
Page 11: Chapter Five - Introduction Of Equipment Use
Chapter Five - Introduction of Equipment Use Schematic diagram of equipment connection *Note: As shown in Pic.1 and Pic.2 above, the connection between the device and projector can be HDMI or VGA. For example, when using the HDMI cable, you do not need to connect the VGA cable. -
Page 12: Introduction Of Equipment Use
2. Introduction of equipment use 1) First, complete the connection of wires required by the equipment (such as the schematic diagram of equipment connection). 2) Power on method ①, power on by swiping the key ring: use the key ring configured by the product, Hearing the sound of "di"... -
Page 13: Chapter Seven - Instruction For Wireless Microphone (Optional)
Chapter Seven - Instruction for Wireless Microphone (optional) 1. Instruction for use When the IQAio equipped with wireless mic receiver is turned on and the handheld wireless mic is turned off, the handheld wireless mic is turned on within 30cm of the card swiping area. The handheld wireless mic and the all-in-one receiver will be automatically connected to each other. -
Page 14: Chapter Eight - Easy Operation Of Intelligent Central Control Management Platform
Chapter Eight - Easy Operation of Intelligent Central Control Management Platform 1. Introduction of Central Control Platform Interface 2. Built-in parameter setting area of central control sound system... -
Page 15: Central Control Switch And Channel Setting Area
3. Central control switch and channel setting area 4. Function configuration area 5. Button panel lock function After the front button panel is locked, it can be unlocked by intelligent central control management software or by swiping a card in the front area. -
Page 16: Chapter Nine - Operation Introduction Of Central Control Write Code
Chapter Nine - Operation Introduction of Central Control Write Code The built-in central control code configured multiple projectors, It can choose the projector control code through AIO central control software on the computer, it can also manually enter the projector "boot", "shutdown" and "RGB INPUT1", "HDMI" control code to write into memory storage of central control memory chip, and control the projector power on/off directly with central control panel button. -
Page 17: Chapter Ten - Whiteboard Software
the control code.If your projector cannot be found in the list model, please set the baud rate, parity check code, command code and other contents of the current serial port according to the technical parameter requirements of the projector manual, and select and input in the command box. 3) After setting the control code, click the send button, after long pressing the buzzer of the IQAio, the control code of the projector has been written into the memory chip of the central control, and then the switching function of the projector can be realized. -
Page 18: Chapter Twelve - Common Malfunction And Solutions
Chapter Twelve - Common Malfunction and Solutions 1. The power is on, the power indicator is not on. Please check whether the live wire and null line of the socket is connected or not, If the power supply is normal, please check the power indicator of the power adapter behind the whiteboard. If the light is not on, please contact the after-sales service to replace the power adapter. - Page 19 the teaching platform software on the computer and it will prompt you to register. At this time, exit the safety software (such as 360 security guard or computer butler, etc.), reinstall the correct whiteboard driver, and restart the computer and confirm the touch again. 9.
