IQ IQTouch TB1000 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

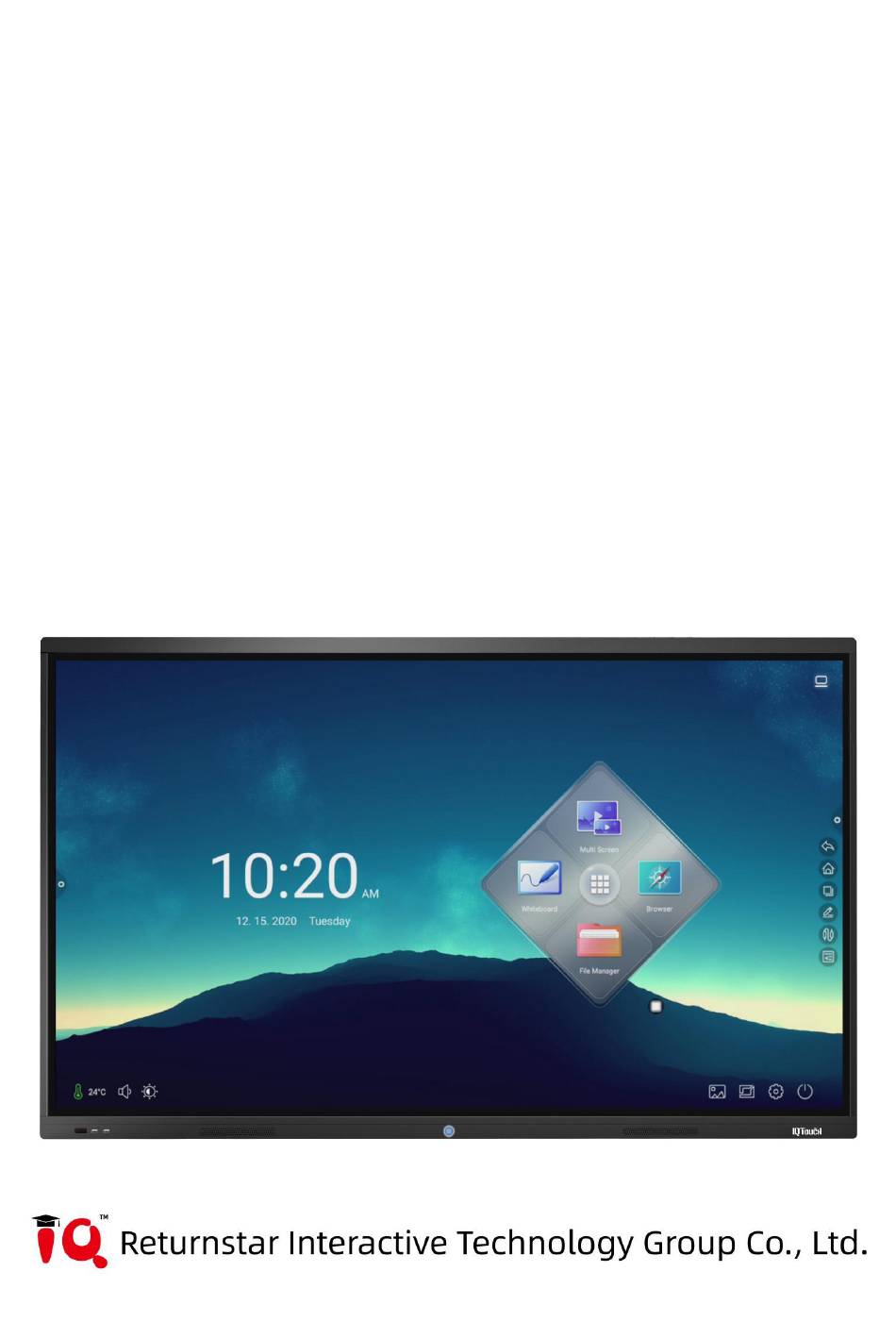

IQTouch
Interactive Flat Panel
TB1000
——User Manual——

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQTouch TB1000 and is the answer not in the manual?

Questions and answers

Related Manuals for IQ IQTouch TB1000

Summary of Contents for IQ IQTouch TB1000

  • Page 1 IQTouch Interactive Flat Panel TB1000 ——User Manual——...

  • Page 2: Table Of Contents

    Content Safety Instruction........................... .. 1.Installation............................1 1.1 Bearing............................1 1.2 OPS Installation.........................4 2.Enable the Device..........................5 3.Control Panel............................5 4.Interface...............................6 5.Remote Control........................... 7 6.Remote Control Area...........................8 7. Connecting and Setting........................9 7.1 External Computer and Touch Connecting................9 7.2 AV Connecting...........................9 7.3 Video-OUT..........................11 7.4 RS232............................

  • Page 3: Safety Instruction

    Safety Instruction For your safety, please read the following instruction before you use the product. Serious injury or property loss may be caused by improper operations. Do not try to repair the product without guidance. Placement  Do not place the unit on an unstable cart, stand, tripod, racket, table, or shelf. ...
  • Page 4  The best watching angle between audience and screen is within 176 ° Temperature  Do not place the unit near or over a radiator or a heater register.  If your unit is suddenly moved from a cold to a warm place, unplug the power cord for at least. Two hours so that moisture that may have formed inside the unit can dry completely.

  • Page 5: Installation

    1.Installation 1.1 Bearing If the product is installed in a wall-mounted way, the bearing capacity of the surface for installation must be at least four times of the weight of the product. If the surface for installation is a wall or the ceiling of a building, the surface must be made of solid bricks, concrete or other materials with equal intensity.
  • Page 6 Step3:Wall mounting bracket A installation Install the wall mounting bracket A with 8pcs screws and gaskets. Please ensure that the wall mounting bracket A is installed horizontally. (Ref. Picture3) Step4: Install the left& right hang bracket B to IQTouch. Use screws fix the hang bracket B at the back of IQTouch. Please check the direction of hang bracket B before installation.
  • Page 7 Step5: Hang IQTouch on the wall mounting bracket A Hanging the left &right hang bracket B to the wall mounting bracket A, please ensure two hang brackets B total hang on wall mounting bracket A, then tighten the screws of hang bracket B to prevent it slide.

  • Page 8: Ops Installation

    1.2 OPS Installation Note: The OPS does not support hot-plugging. Please insert the plug of the OPS after the interactive panel is disconnected from the power. Install the OPS by the following steps: 1) Insert the OPS into the special slot on the rear of the interactive panel. 2) Tighten the screws.

  • Page 9: Enable The Device

    2.Enable the Device 1) Connect the power cord to the port at the back of the device. 2) Plug the power cord to the electrical socket. 3) If the power LED light is not turn red please turn on the rocker switch at the back of the device.

  • Page 10: Interface

    4.Interface Terminal Interface Touch RJ45 YPBPR IN AV IN AV OUT VGA EARPHONE AUDIO IN Side Interface Coax out HDMI 1 HDMI 2 RS232 USB2.0 USB 2.0 WIFI: antenna port...

  • Page 11: Remote Control

    5.Remote control Button Function Description Power on/off Mute Input digit/”space” in OPS mode Channel DASH key Channel BACK key One key to power off the screen Active writing application Back Return to the current page VOL+/VOL- Control sound volume CH+/CH- Select different input source PgUp/PgDn Next/previous page in ops mode...

  • Page 12: Remote Control Area

    6.Remote Control Area The effective receiving area is about 3 meters with 30° angle from vertical point to the left and right. And the effective receiving area is about 5 meters from the front of device. Note that the remote control signal receiver locates at the position of power indicator.

  • Page 13: Connecting And Setting

    7. Connecting and Setting For safety, please do not connect any power supply before the external devices setup. 7.1 External Computer and Touch Connecting 1) Connect a VGA cable (15 pin) between the VGA and external PC. Connect an earphone cable between the PC and audio at the same time.
  • Page 14 1) Connect an AV cable with the device with AV-OUT (Yellow is Video, Red is Audio-R, White is Audio-L). 2) Plug the POWER cord and switch it on from the rear panel. 3) Press to turn on the panel. 4) Select Signal source to AV IN source. ...

  • Page 15: Video-Out

    1) Connect a HDMI cable with the device with HDMI. 2) Plug the POWER cord and switch it on from the rear panel. 3) Press to turn on the panel. 4) Select Signal source to HDMI source according to the one you connected. 7.3 Video-OUT ...

  • Page 16: Rs232

    7.4 RS232 1) Connect a serial port cable with the device. 2) Plug the POWER cord and switch it on from the rear panel. 3) After connecting the central control system and unit, you can use some of the function such as power on/off or adjust the volume etc.
  • Page 17 RS232 code list RS232 Code for Android Firmware 6-byte command, baud rate 115200 Start code 99, client code 23, function ID code, device ID code (generally 01 without special instructions), check code + function ID code = FF, end code AA Function Required Commands(Hex) Power ON...

  • Page 18: Android Home Page

    8.Android Home Page Enter the Android interface by default after power on. 8.1 Sidebar The sidebars are divided into left sidebar and right sidebar. Click on the icon floating on the left and right side of the screen to show the sidebar. The functions are Back, Home page, Task, Annotation, Input and Control panel.
  • Page 19 Back Click the icon to return or exit the current program. Home Click icon to enter the main interface of Android system. Task Click icon，to enter the task management interface, where you can select to open or close the application. 1) In multi task state, touch the task list area and slide up and down to view the task list.
  • Page 20 Annotation Click the icon to open the annotation. Annotation Toolbar Instruction： Click to open pen mode. Long press to pop up the writing menu , choose color and size of the pen. Click to open eraser mode. Click to exit the mode if the current mode is annotation. Click to open drop-down menu of the annotation.
  • Page 21 Input Click icon to show the source channel list, and the user can switch channel. Control panel Click icon to display the notification panel as shown below. The Notification Center panel contains Calendar, Child Lock, Energy Saving, Screenshot, Eye Protection, Spotlight, Camera, Curtain, Timer, and Customize.
  • Page 22  Calendar Click icon in the notification panel to show the calendar interface that user can check time and mark the events.  Child Lock Click the icon. If the system is in lock screen status, the functions of touch,click, and remote control are all locked which cannot be used.
  • Page 23 Click icon to achieve full-screen screenshot or free screenshot.  Eye protection Click to turn on or off the eye protection function.  Spotlight Click icon to highlight the content with spotlight function.  Take photos Click to open the camera function. ...
  • Page 24  Quick Apps Click the icon to enter the corresponding application. Click to enter more applications.

  • Page 25: Status Bar

     Bottom bar 1) OPS: Click the icon to switch directly to the built-in computer channel. 2) Shut down: Click the icon to turn off the all-in-one machine. 3) Setting: Click the icon to enter the system setting interface. 8.2 Status bar The status bar mainly displays the current network connection status, current machine temperature, sound, brightness, and also contains the wallpaper, channel, settings, and quick access to shutdown.
  • Page 26 Connection status:  Unconnected state:  Click : Show the current temperature of the machine;  Click : Adjust the sound of the machine;  Click : Adjust the brightness of the machine;  Click : Enter the wallpaper interface; ...

  • Page 27: Android Settings

    9.Android Settings Click setting icon on home page to enter Android setting interface. 9.1 Personalization The general settings interface can adjust the system's voice and brightness, change the system theme wallpaper, modify the device name and view the system application on basic settings interface. Basic Device Name : Users can modify the name of the interactive display.
  • Page 28  Conference theme  Educational theme...
  • Page 29  Science and technology theme Wallpaper Wallpaper has dynamic and static wallpaper. It also can be added by custom. Custom added wallpaper can be stored in static wallpaper and deleted by long press.
  • Page 30 Display Users can modify the name of the interactive display in Device name. Eye protection function: the current brightness decreases when turned on. Color temperature adjustment: adjust color temperature. Screen saver: When turned on, enter screen saver mode after sleep. Change screen saver: Click to change screen saver animation, users can add or delete static screen saver and dynamic screen saver by themselves.

  • Page 31: Network

    9.2 Network Under the network interface, users can set wired network, wireless network, wireless hotspot and Bluetooth and so on. Wired network Under the wired network interface, users can view the MAC address, IP address and other information. The automatic access to the IP address is opened by default, and the parameters such as the IP address and the subnet mask can be manually modified after the automatic acquisition is closed.
  • Page 32 2.4/5G hotspots Under the 2.4 and 5G hot spot settings interface, users can change the hot spot name, security, password and other parameters. Notice: 2.4G and 5G hot spot, 2.4G hot spot and wireless network can neither be opened at the same time.

  • Page 33: Intelligence

    9.3 Intelligence Under the intelligent settings interface, users can set the intelligent lock password, energy-saving mode, time switch channel and so on. Print settings Energy-saving mode Set the sleep time, it will be in screen saver status. The screen saver can be customized.
  • Page 34 After changing the screen saver, you can customize the screen saver (a picture is a static screen saver, a video is a dynamic screen saver), and you can delete it by clicking the delete icon. Timing switch After setting the power-on time and power-off time, the system will automatically power on or power off when the scheduled time is up Channel setting Click...
  • Page 35 Security settings USB lock, screen lock, application lock and touch lock can be turned on or off. You can also set the corresponding unlock password, the initial password is 2580. Click Set Password to change the corresponding password.

  • Page 36: System

    More functions You can set the power button, floating menu, sidebar, environmental sensitivity, centralized control, temperature monitoring, five-finger off screen, three-finger follow and other functions. 9.4 System The system setting options are mainly for system input method, language display setting, system update and upgrade, etc., as well as system version information and built-in storage usage.
  • Page 37 Time and date Turn on the Auto set time. If the network connection is successful, the current network time will be automatically synchronized. When the Auto set time is off, you can manually set the date and time. Click to modify time zone.
  • Page 38 Image It is valid for any source channel except Android, mainly used to adjust the image quality of the channel and the ratio of the channel picture. Voice Adjust volume and set sound mode, output device.
  • Page 39 Sound mode: standard, news, music, theater, sports, user voice output device: speaker, coaxial, Bluetooth, USB mode. System information You can view the system version information and built-in storage usage and other information.
  • Page 40 System update Divided into local update and online update. 1) Restore factory settings: click Reset to restore the factory settings. 2) Local update: Copy the firmware to the root directory of the U disk, insert the U disk into the multimedia USB interface of the machine, and select local upgrade and update.

  • Page 41: Whiteboard App

    10.Whiteboard App 10.1 Interface display Click icon to open whiteboard app. 1) The pen tool of whiteboard is selected by default and it can be written directly. 2) Support single-point and multi-point up to 20 points. 3) Single-point mode, two fingers or more to perform zoom roaming function. 4) Support small tools, insert pictures and shapes, draw lines and sectors.
  • Page 42 Content menu icon function operation instructions: 1) Open the file： Click icon to open the file saved in the whiteboard file directory (the default path directory is internal storage/whiteboard). And it can perform the functions such as editing and saving again. 2) Save the file: Click icon to save the currently written content.Users can customize saving name and the choice of internal storage or U disk to save.
  • Page 43 3) Export: Click to export the content written on the whiteboard in *.jpg picture format. The storage location of exported pictures can be internal storage or U disk. 4) Insert: Click to open the picture file of the local storage or U disk. The user can insert the picture on the whiteboard and write on the picture.
  • Page 44 5) Click If you use the email sending function for the first time, you need to set the information of the email sender's mailbox on the email login interface, as shown in the figure: a. Use your mailbox, enter account number and password, and click Login.
  • Page 45 b. After successful login, the user enters the email address of the recipient and sends the content recorded on the whiteboard as a PDF file to the recipient's mailbox and click Settings to modify and replace the current account. 6) Click to enter network sharing settings and writing mode settings.
  • Page 46 The network sharing is divided into network sharing and local sharing functions. Writing mode is divided into standard mode (single pen mode) and double pen mode.
  • Page 47 7) Click to check version information. Click . Exiting the whiteboard when there is content on the whiteboard will pop up the prompt "Are you sure to exit the whiteboard or save the file?" You can choose Save or Quit. If the whiteboard has no content, you can exit directly.
  • Page 48 8) Aid tools include ruler, compass, calendar, camera, screen, calculator, timer and spotlight, which can be inserted to whiteboard. When the ruler is selected, the ruler tool appears on the screen. You can use ruler to draw different length of lines. When you select a compass, you can draw circles or sectors on the screen.

  • Page 49: Code Scanning And Sharing

    10.3 Code scanning and sharing Click icon. You can generate a QR code window and scan it when the network is connected. If popping up the prompt, return to the home page and set the network connection. Enter whiteboard again and re-scan the code after the connection is successful. QR code sharing is divided into current page sharing and all sharing.

  • Page 50: Common Function

    After the QR code is generated, the following figure is displayed. Click the lock icon to start the QR code lock mode, and the password is displayed next to it. After scanning the QR code, you must enter the password to view the file. 10.4 Common Function Pen tool 1) Click...
  • Page 51 Eraser 1) Wipe: Click icon to erase on the written content; 2) Circle rub: Click icon to erase the handwriting in the area inside the erase circle ; Shape Click to to pop up the graphic and image selection box. When the selected graph is drawn on the screen, it will be displayed as the corresponding figure.
  • Page 52 Choose the shape to insert to whiteboard. Background 1) Click to change Whiteboard background color, picture shape, background picture.
  • Page 53 2) Picture shape 3) Background image...
  • Page 54 Cancellation and recovery 1) Cancellation: Click icon to cancel the previous operation, and support up to 50 steps once; Recovery: Click icon to re-execute the operation that has been cancelled and support up to 50 steps once. Select function Click to change selection function.
  • Page 55 Slide to clean screen function Click icon to pop up the slider and manually drag the icon to the right to clear the current screen writing. Left and right switching function Click icon to switch the left and right positions of more function icons including code scanning, switching function icons, and lower page...
  • Page 56 2) Add page: Click icon to add the page. 3) Delete page: In the open page preview window, click the delete button in the upper right corner of the page thumbnail to delete the page or click at the bottom of the page preview window to delete all pages.

  • Page 57: Document Management

    11.Document management 11.1 Interface introduction Click the file manager icon : Open the file management application, and the external SD card and USB external storage device are displayed on the left side of the file browser. 11.2 Classification display 1) When user clicks "Documents", the main contents are: Word, EXCEL, PDF, TXT files.
  • Page 58 2) When user clicks "Picture", the image format file is displayed. 3) when user clicks "Audio”, the audio format file is displayed. 4) When user clicks "Video", the video format file is displayed.
  • Page 59 5) Searching feature：In the search bar, enter the name of the file that the user needs to find. After clicking Search, the file to be found will be displayed in the main content window, as shown in the figure. 6) Sort: Click icon，the sorting list will pop up.

  • Page 60: Extended Menu

    11.3 Extended Menu Click icon，there are functions such as display settings, favorites, and version information. Display settings User can set the file manager's font display and background color display.
  • Page 61 Favorites 1) File collection: Select the files you want to collect and click on the collection. 2) Viewing files: If you want to view a file or folder, just double-click to open it. 3) Remove the favorite file: Click to select the file or folder to be removed. 4) Exit the favorites: Click outside the Favorites interface to exit.

  • Page 62: Display Method

    About User can view the file browser version information. 11.4 Display Method Icon display The icon display can be divided into a large icon display and a small icon display.

  • Page 63: Toolbar

    List display 11.5 Toolbar Multiple selection Click icon, Multiple folders can be selected at the same time.
  • Page 64 Extension tool When you enter the selected state, the extension toolbar will pop up, which copies, cuts, deletes, renames, compresses, encrypts, and collects functions. File Encryption 1) Enable password protection: Long press to select the file or folder to be protected, click encryption, enter the password to confirm.

  • Page 65: Multi-Screen Interaction

    12.Multi-screen Interaction 12.1 Application note The main function of this application is to wirelessly transmit the content of mobile phones, tablets or computers to the display, and truly achieve the wireless screen transmission function of the projection device and the projected device (note: mobile phones, tablets or computers need to be on the same local area network).

  • Page 66: Special Instructions For Multi-Screen Interactive Interface

    3. Operating description 1) Android mobile phone connection network, scan the multi-screen interactive interface QR code to download and install E-share application software (Apple mobile phone does not need to download); 2) The mobile phone needs to use the same network as the all-in-one. The Android mobile phone can open the E-share to cast the screen, and the Apple mobile phone can open the Air Play to cast the screen.
  • Page 67 In this interface, you can modify the device name and set the connection password. when an Android phone connects to touch screen, it needs to enter the connection password to connect to the screen. Multi-split screen: set the number of split screens Show Device Name on Screen: the device name is displayed on the screen when it is turned on Airplay visible: Airplay visible when it turned on.
  • Page 68 1. IQShare button should be paired with Touch screen The USB port of IQShare button should be inserted into Touch screen and paired with touch screen. The touch screen will display paired successfully after few seconds. Note： A. A Touch screen can be paired with up to 8 IQShare buttons in the same network environment. B.

  • Page 69: Built-In Pc Operation

    13.Built-in PC Operation 1) Select PC signal source to enter PC interface. The following are three ways to select a signal source channel.  Swipe your finger up from the left and right side to bring up a toolbar then click input. ...

  • Page 70: Packing List

    14.Packing List Name Quantity (Set) IQTouch Wall Mounting Bracket Power Cord Remote Control HDMI Cable USB Cable Colorless Writing Pen User Manual Warranty Card Certification...

  • Page 71: Troubleshooting

    15.Troubleshooting Remote Control Check whether there is object between remote control and  panel receiver; Remote control out of order Check whether the battery is installed correctly;  Check whether the battery is drained.  Touch Make sure infrared frames have not been obscured. ...
  • Page 72 This is the general user manual for IQTouch TB1000 interactive touch screens. Some details may be different from the actual product.
