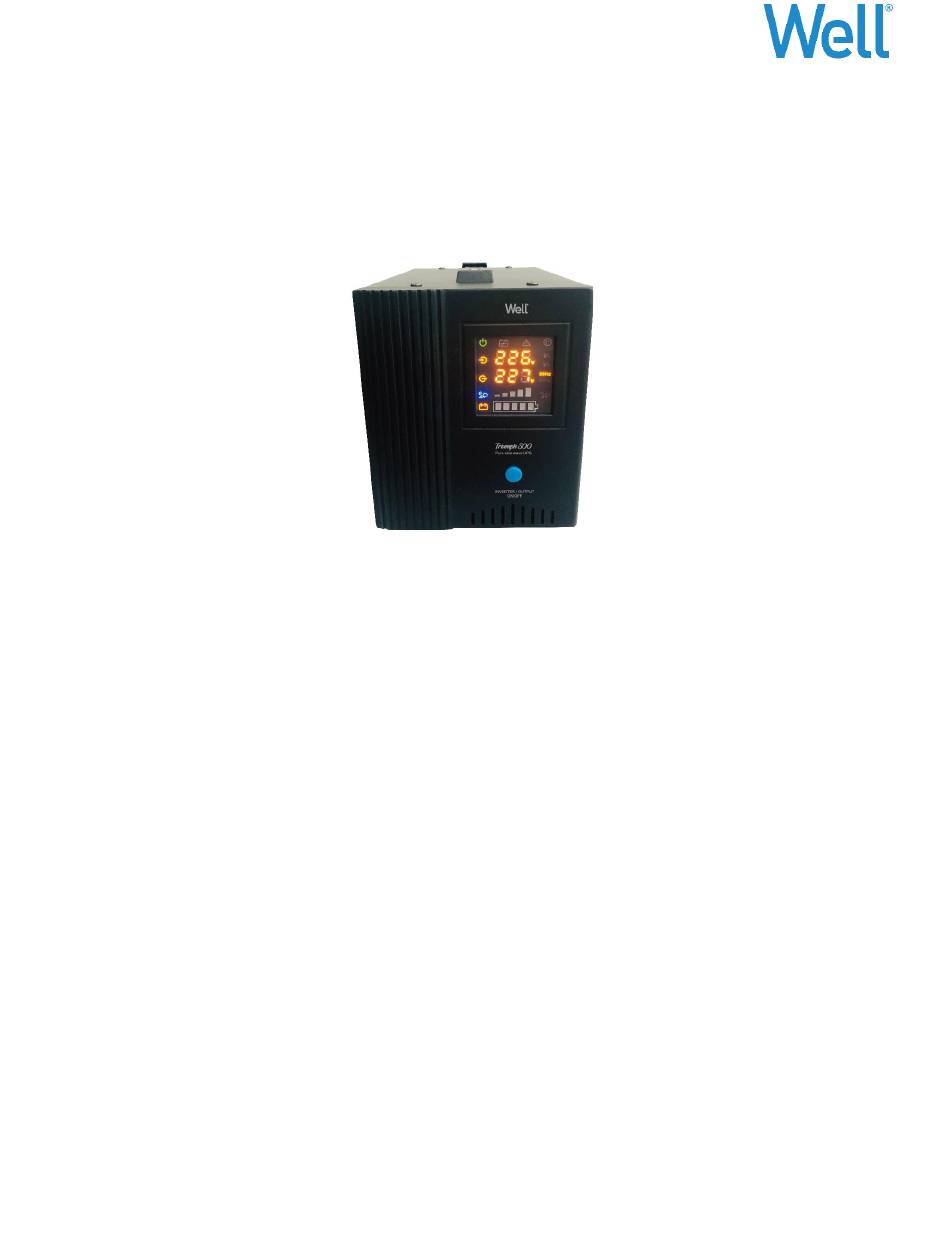

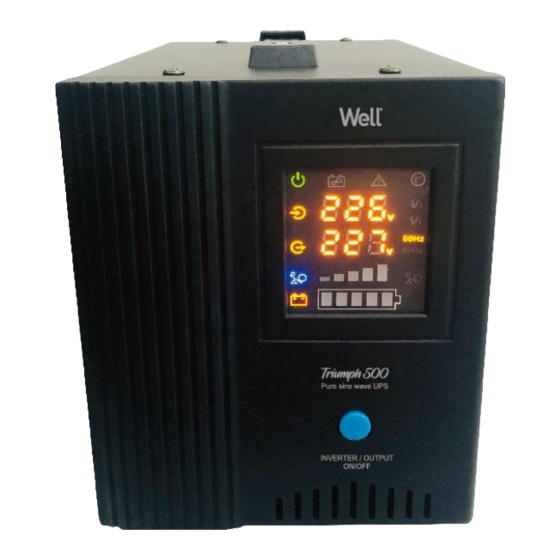

- Page 1 INSTRUCTION MANUAL PURE SINE WAVE INVERTER / UPS Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: UPS-HEATST-TRIUMPH-500VA-WL, UPS-HEATST-TRIUMPH-800VA-WL...
- Page 2 Product features • Inverter, UPS, AVR and charger function; • Toroidal transformer design, high efficiency low static loss, much more energy-saving than old square transformer type design; • 32-bit high speed CPU controlled, swift response speed, more accurate detection; • LED colorful humanistic and friendly operation interface, displays clearly device's working status, input &...
- Page 3 City power input normal, device through AVR supplies output City power input abnormal, battery through inverter supplies AC output Temperature is too high, device cuts off output Battery over voltage, short circuit, high MOSFET’s temperature City power input is over voltage City power input is low voltage Loading exceeds device’s rated power Loading bar showing the loading situation...
- Page 4 1.4 Make sure the city power voltage and frequency matches the device rated; 1.5 The device should be placed in the well grounded condition to ensure the safety; 2. Battery connection: Connect the red cable to battery “+”...
- Page 5 Waste electrical and electronic equipment are a special waste category, collection, storage, transport, treatment and recycling are important because they can avoid environmental pollution and are harmful to health. Submitting waste electrical and electronic equipment to special collection centers makes the waste to be recycled properly and protecting the environment.
