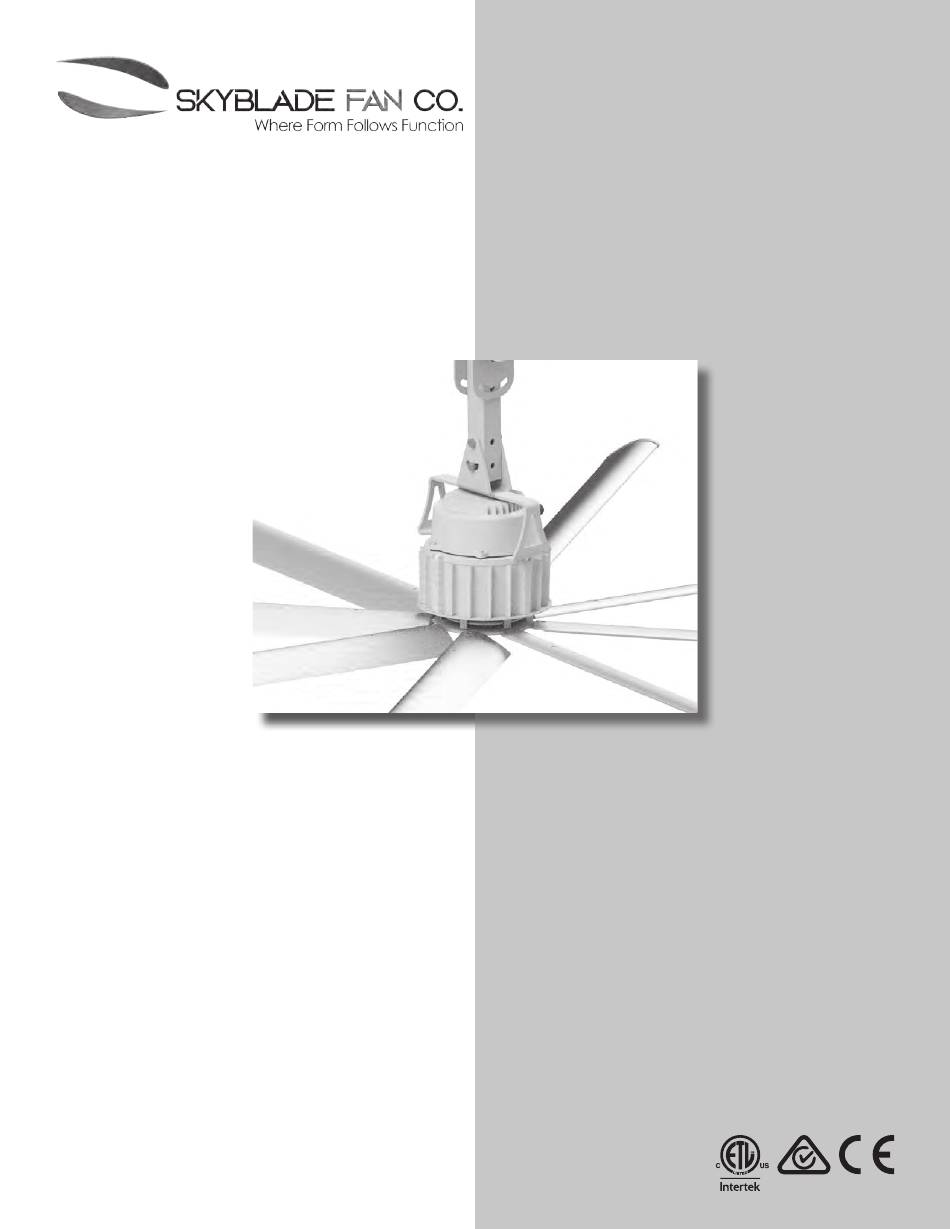

Skyblade Turboprop Series Installation Manual

Custom designed, reduced maintenance, stol technology

Advertisement

Quick Links

Cat.No.SBF1-1
Where Form Follows Fu
Form Follows Function W
Follows Function Where
Function Where Form F
Where Form Follows Fu
TurboProP SerieS
Form Follows Function W
Follows Function Where
6'-14'
Function Where Form F
Where Form Follows Fu
Form Follows Function W
Follows Function Where
Function Where Form F
Where Form Follows Fu
Form Follows Function W
Follows Function Where
INSTALLATION
Function Where Form F
MANUAL
Where Form Follows Fu
Custom Designed
Form Follows Function W
Reduced Maintenance
STOL Technology
Follows Function Where
Function Where Form F
Where Form Follows Fu
Form Follows Function W
Follows Function Where
Function Where Form F
Patent pending

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Turboprop Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Skyblade Turboprop Series

  • Page 1 Where Form Follows Fu Form Follows Function W Follows Function Where Function Where Form F Where Form Follows Fu TurboProP SerieS Form Follows Function W Patent pending Follows Function Where 6’-14’ Function Where Form F Where Form Follows Fu Form Follows Function W...
  • Page 2 électrique, la mort, un incendie et / ou des dommages matériels. Avant d’entreprendre l’installation, l’entretien ou un nettoyage, coupez l’alimentation électrique au panneau de service et bloquez les dispositifs de sectionnement pour éviter une mise en marche accidentelle. Where Form Follows Function SKYbLADe FANS...
  • Page 3 Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Where Form Follows Function SKYbLADe FANS...
  • Page 4: Table Of Contents

    12’ / 3.6M Fan 8” (203 mm) 72” (1829 mm) 9” (229 mm) 38 lbs (17 kg) 1443-8 14’ / 4.3M Fan 8” (203 mm) 84” (2134 mm) 9” (229 mm) 43 lbs. (20 kg) Where Form Follows Function SKYbLADe FANS...
  • Page 5 REV: Bracket (x8) 19.04.10 6001-S _001 THIS DRAWING IS THE EXCLUSIVE PROPERTY OF SKYBLADE FAN COMPANY AND CANNOT BE REPRODUCED OR DISCLOSED TO ANY THIRD PARTY WITHOUT THE AUTHORIZATION OF SKYBLADE FAN COMPANY Gripple Packet Hardware Packet 2 (Blade Assembly)
  • Page 6: Fan Diagram

    VOLTAGE 230/1 230/1 230/1 230/1 230/1 INPUT 230/3 230/3 230/3 230/3 230/3 460/3 460/3 460/3 460/3 460/3 Model Number Ordering Format: SERIES-DIAMETER-BLADES-INPUT VOLTAGE-PHASE Sample Model Number: TBP-1443-823-3 NOTE: 277V power source is not accepted. Where Form Follows Function SKYbLADe FANS...
  • Page 7: Important Information

    When mounting a fan in an area where objects may be lifted or moved into the path of the fan, Skyblade Fans recommends marking or painting hash lines on the floor to alert personnel of the above movement of the fan.
  • Page 8: Mounting Considerations

    3.3 Safety Cable A Skyblade fan should never be run without proper installation of Safety Cables. These are supplied with every fan. You must install safety cable for warranty to be in effect.
  • Page 9: Preparing The Work Site

    Skyblade Fans can be hung from a unistrut, angle irons, or an I-beam. See installation instructions on the following page. Do not mount the fan to single purlins, trusses, or bar joists. Consult a structural engineer for installation methods not covered in the manual.
  • Page 10: Mounting Method 1: Unistrut

    état, et capable de supporter des charges de jusqu’à 650 lb (295 kg). Il est de la seule responsabilité du client de vérifier que la structure du bâtiment est suffisante pour l’installation du ventilateur. Skyblade fans recommande de consulter un ingénieur en structure avant d’attiser installation.
  • Page 11 ATTENTION: Do not tighten the hardware until the upper yoke has been mounted to the unistrut. Grade 5 Hardware (customer supplied) a. (4) 1/2”-13 GR 5 Bolt b. (8) 1/2” Flat Washer c. (4) 1/2” Nylock Nut d. (4) 2-1/2” Square Washer Where Form Follows Function SKYbLADe FANS (PART NAME HERE)
  • Page 12: Mounting Method 2: Angle Iron

    .25”(.6cm) 3”(7.6cm) over 8’ (2.4m) - x 3”(7.6cm) 12’ (3.7m) x.25”(.6cm) *2 pairs of angle irons. Pairs should be placed back to back and fastened in center (see step 2). Height Thickness Width Where Form Follows Function SKYbLADe FANS...
  • Page 13 Align the angle irons to each other and tighten the bolts to 90 ft-lb (122 N-m) using a 3/4” socket with torque wrench. Proceed to step 5.6b. Grade 5 Hardware (customer supplied) a. (2) 1/2”-13 GR 5 Bolt b. (4) 1/2” Flat Washer c. (2) 1/2” Nylock Nut Where Form Follows Function SKYbLADe FANS...
  • Page 14 Grade 5 Hardware (customer supplied): a. (4) 1/2”-13 GR 5 Bolt b. (8) 1/2” Flat Washer c. (4) 2-1/2” Square Washer (see diagram) d. (4) 1/2” Nylock Nut 2.5” (6.4 cm) 9/16” Dia. (1.4 cm) 2.5” (6.4 cm) Where Form Follows Function SKYbLADe FANS...
  • Page 15 8e année, comme illustré. Proceed to step 5.7. Grade 5 Hardware (customer supplied): a. (4) 1/2”-13 GR 5 Bolt b. (8) 1/2” Flat Washer c. (4) 2-1/2” Square Washer (see diagram) d. (4) 1/2” Nylock Nut Where Form Follows Function SKYbLADe FANS...
  • Page 16 (8) 1/2” Flat Washer c. (4) 1/2”-13 Nylock Nut 8-1/4” (20.96 cm) Upper Yoke Top View MATERIAL: XXXXXXXX DRAWN BY: THIS DRAWING IS TH DISCLOSED T Upper Yoke Side View Where Form Follows Function SKYbLADe FANS Page. 16 MATERIAL: ALL DIMENSION ARE I...
  • Page 17: Mounting Method 3: I-Beam

    MouNTiNg MeThoD 3: i-beAM NOTE: Mounting to I-beams requires the purchase of the I-beam Adapter Kit from SkyBlade Fan Company. CAUTION/ATTENTION Install the “Clamping Shims” only if the thickness of the I-beam flange exceeds 3/8” (1cm). The mounting holes of the shim are closer to one side than the other. Make sure this side is facing the I-beam.
  • Page 18: Mounting Method 4: Purlins

    MouNTiNg MeThoD 4: PurLiNS NOTE: Purlin brackets and hardware are available from SkyBlade Fan Company upon request and not included standard. 5.9 Selecting Proper Angle Irons Select the proper angle irons based on the requirements stated under section 5.3. 5.10 Pre-Drill Purlins Drill four 9/16”...
  • Page 19 Purlin Bracket Hardware (per set, supplied): a. (2) 1/4” Formed Steel Purlin Bracket b. (2) 1/4” Steel Purlin Backplate c. (16) 1/2”-13-1 3/4” GR 5 Bolt d. (16) 1/2” Nylock Nut e. (32) 1/2” Flat Washer Where Form Follows Function SKYbLADe FANS...
  • Page 20: Hanging The Fan

    The safety cable is a critical safety feature of the fan and must be installed correctly. Le câble de sécurité est une caractéristique de sécurité essentielle de la soufflante qui doit être installé correctement. Cable End Detail Where Form Follows Function SKYbLADe FANS DRAWN 5/15/2019 sales CHECKED...
  • Page 21 Tighten bolts to 90 ft. lbs. (122 N-m) using a 3/4” socket with torque wrench. Lower Yoke Hardware (supplied): a. (2) 1/2”-13x3 1/2” GR 5 Bolt b. (4) 1/2” Flat Washer c. (2) 1/2”-13 Nylock Nut Where Form Follows Function SKYbLADe FANS...
  • Page 22: Installing Guy Wires

    1. Slide the gripple fastener (as supplied) over the opposite end of the wire. 2. Feed the end of the guy wire through the guy wire loop on the fan motor and then through the gripple, removing any slack from the cable. Where Form Follows Function SKYbLADe FANS...
  • Page 23 Eye Hook (Ceiling) Gripple Hook Tab (Motor) a Beam Clamp a Gripple Hook Tab b Eye Hook b Guy Wire c Gripple Wire Loop c Gripple Fastener Gripple Maximum Angle Ceiling/Beam Guy Wire 45° Maximum Where Form Follows Function SKYbLADe FANS...
  • Page 24: Installing Blades

    Each Soc Cap requires one (1) c. Zinc Split Lock Washer 5/16. Blade Hardware Kit (supplied): a. (8) Soc Cap 5/16-18 x 3/4 b. (8) Soc Cap 5/16-18 x 5/8 c. (16) Zinc Split Lock Washer 5/16 Where Form Follows Function SKYbLADe FANS...
  • Page 25 ALLiNg bLADeS 8.1 Attach Blades to Hub: Where Form Follows Function SKYbLADe FANS...
  • Page 26 Thoroughly inspect the hub, the bolts and brackets within the hub to guarantee clear and proper rotation. If you find that the fan has a bracket that is hitting another object on the hub, contact SkyBlade Fan Company for a resolution. Where Form Follows Function...
  • Page 27 Install wingtips on end of blade after blade has been securely attached to the strut. Fasten wingtip to blade using a 10-32 X 5/8 Button Cap. Wingtip Blade BTN Cap Screw Wingtip Wingtip Hardware Kit (supplied): a. (8) 10-32x3/8 BTN Cap Screw Where Form Follows Function SKYbLADe FANS...
  • Page 28: Electrical

    CAUTION/ATTENTION SkyBlade Fan Company is not liable for any voltage disturbances with explicit reference to electronic magnetic interference (EMI). Voltage disturbance refers to transient overvoltage, voltage unbalance, voltage swells, rapid voltage change, flicker, superimposed signals, harmonic voltages, supply voltage variations, voltage dips and frequency/time deviation.
  • Page 29 à l’état solide. The installation of a SkyBlade Fan must be in accordance with the National Electrical Code, ANSI/NFPA 70-1999, and all local codes. The procedures and techniques outlined in this manual are merely a guide for proper installation.
  • Page 30 Pour éviter un court-circuit, faire très attention de ne pas obtenir des copeaux de métal dans le contrôle. The SkyBlade Fan product warranty will not cover equipment damage or failure that is caused by improper installation. La garantie des produits Skyblade Fan ne couvrira pas les dommages à l’équipement ou de l’échec qui est causé...
  • Page 31 9.2 Running the Motor Wire The SkyBlade TurboProp series’ custom designed chassis makes for running the motor wire in an incognito fashion. The motor wire slot on the top of the chassis allows the power wire to be ran through (or affixed to the side) of the extension bar, then conveniently through the top plate of the chassis and directly in to the motor electrical box.
  • Page 32 If the installation of the fan is required to be wired to a fire alarm emergency shut-off, an external relay will have to be placed by a fire suppression specialist between the voltage line feed and the fan(s). Power Supply MOTOR Where Form Follows Function SKYbLADe FANS...
  • Page 33: Troubleshooting

    Do not run your controller and sensitive equipment on the same power line. c. Install properly sized EM/RFI filter. d. Contact Customer Service at 1-586-806-5107. 5. LED indicator is not blinking in normal fashion. Please contact Skyblade Fans customer service to resolve issue. Where Form Follows Function SKYbLADe FANS...
  • Page 34 Continued on page 35 fan rating label. Please note all delta power configurations are incompatible with Fix incorrect SkyBlade fans. wiring. Is the input voltage correct? Can the speed vary from 0-100% Consult factory. Check splices and wiring properly? at the controller.
  • Page 35 • If the wrong fuse is placed on the breaker and a spike occurs the drive may have been blown. Driver will need to be replaced . Contact Factory NOTE: Fan blades must be ON in order to troubleshoot. Where Form Follows Function SKYbLADe FANS...
  • Page 36: User Servicing Instructions

    8. Administer proper cleaning techniques such as dusting blades, motor, reducer and chassis. If desired, used a water based cleaner to polish blades. If you have any questions, please contact customer service at 1-586-806-5107. Where Form Follows Function SKYbLADe FANS...
  • Page 37 ServiCiNg iNSTruCTioNS Maintenance Log: DATE: MAINTENANCE PERFORMED REPLACEMENT PARTS REQUIRED Replacement Part List: PART NO. DESCRIPTION Where Form Follows Function SKYbLADe FANS...
  • Page 38 NoTeS Where Form Follows Function SKYbLADe FANS...
  • Page 39 NoTeS Where Form Follows Function SKYbLADe FANS...
  • Page 40 SkyBlade Fan Company | Where Form Follows Function SkyBlade and SkyBlade Fans ® ® are the trademarks of SkyBlade Fans. 24501 Hoover Road, Warren, Michigan 48089 USA +1 (586) 806-5107 | sales@skybladefans.com www.SkyBladeFans.com LIMTBP.0321_09...
