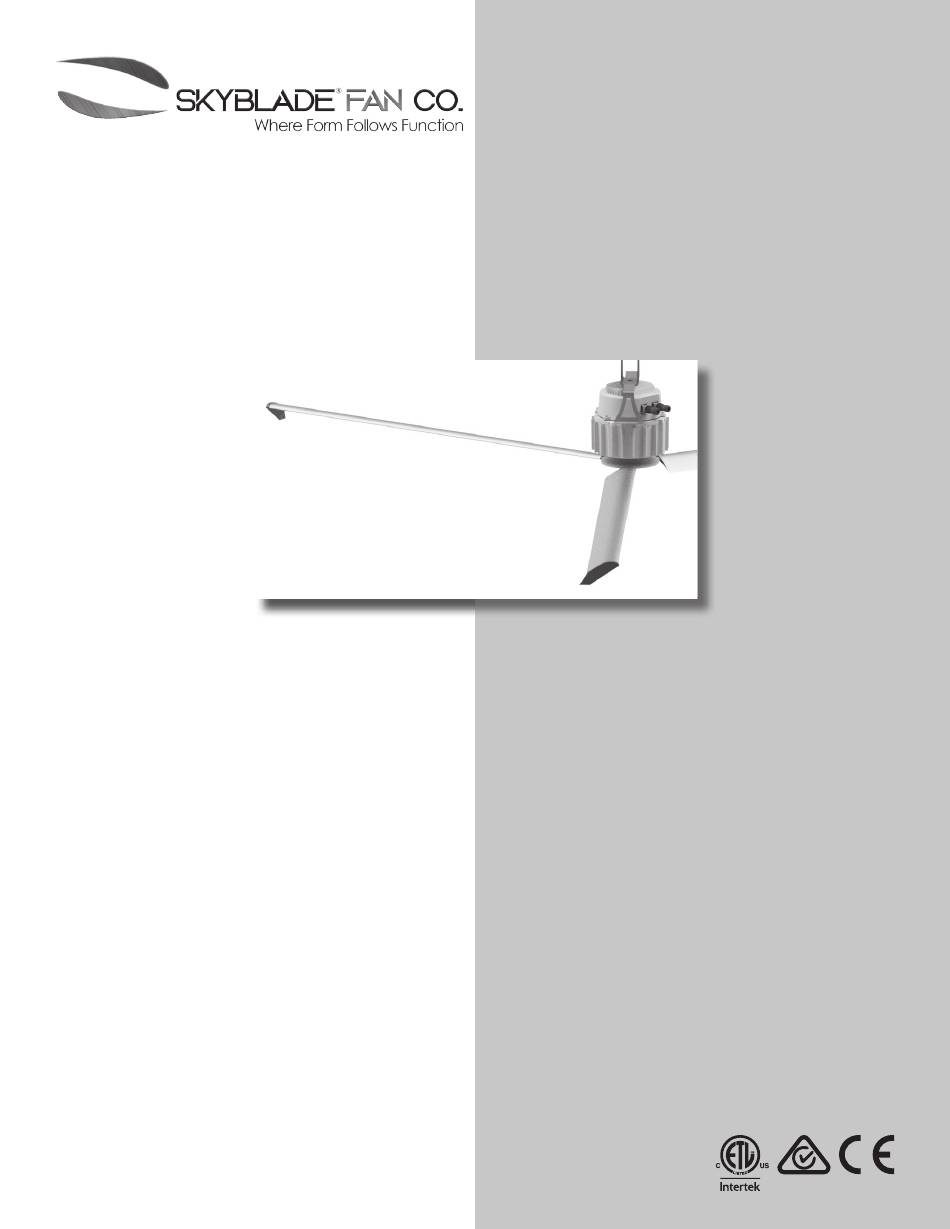

Cat.No.SBF1-1
Where Form Follows Fu
Form Follows Function W
Follows Function Where
Function Where Form F
Where Form Follows Fu
MINI PROP SeRIeS
Form Follows Function W
Follows Function Where
6'-8'
Function Where Form F
Where Form Follows Fu
Form Follows Function W
Follows Function Where
Function Where Form F
Where Form Follows Fu
INSTALLATION
Form Follows Function W
MANUAL
Follows Function Where
Custom Designed
Function Where Form F
Reduced Maintenance
STOL Technology
Where Form Follows Fu
Form Follows Function W
Follows Function Where
Function Where Form F
Where Form Follows Fu
Form Follows Function W
Follows Function Where
Function Where Form F
Patent pending

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI PROP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Skyblade MINI PROP Series

  • Page 1 Where Form Follows Fu Form Follows Function W Follows Function Where Function Where Form F Where Form Follows Fu MINI PROP SeRIeS Form Follows Function W Patent pending Follows Function Where 6’-8’ Function Where Form F Where Form Follows Fu...
  • Page 2 électrique, la mort, un incendie et / ou des dommages matériels. Avant d’entreprendre l’installation, l’entretien ou un nettoyage, coupez l’alimentation électrique au panneau de service et bloquez les dispositifs de sectionnement pour éviter une mise en marche accidentelle. Where Form Follows Function SKYBLADe FANS...
  • Page 3 Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Where Form Follows Function SKYBLADe FANS...
  • Page 4: Table Of Contents

    6’ / 1.8M Fan 8” (203 mm) 60” (1524 mm) 9” (229 mm) 9 lbs. (4 kg) 0824-3 8’ / 2.4M Fan 8” (203 mm) 60” (1524 mm) 9” (229 mm) 10 lbs. (5 kg) Where Form Follows Function SKYBLADe FANS...
  • Page 5: What's In The Box

    PART NUMBER: REV: 19.04.10 6001-S _001 THIS DRAWING IS THE EXCLUSIVE PROPERTY OF SKYBLADE FAN COMPANY AND CANNOT BE REPRODUCED OR DISCLOSED TO ANY THIRD PARTY WITHOUT THE AUTHORIZATION OF SKYBLADE FAN COMPANY Gripple Packet Hardware Packet 2 (Blade Assembly)
  • Page 6: Fan Diagram

    Wingtips: Improves air movement efficiency by reducing drag. SERIES DIAMETER 6’ / 1.8M 8’ / 2.4M BLADES VOLTAGE INPUT 120/230/460 120/230/460 Model Number Ordering Format: SERIES-DIAMETER-BLADES-INPUT VOLTAGE-PHASE Sample Model Number: MP-0824-323-3 NOTE: 277V power source is not accepted. Where Form Follows Function SKYBLADe FANS...
  • Page 7: Important Information

    When mounting a fan in an area where objects may be lifted or moved into the path of the fan, Skyblade Fans recommends marking or painting hash lines on the floor to alert personnel of the above movement of the fan.
  • Page 8: Mounting Considerations

    The maximum torque that must be handed by the mounting system and the building structure will occur at the fans startup. For a 8 foot fan, maximum potential startup torque is 300 ft-lbs. Skyblade Fans use a soft-start technology which allows the rpm to ramp up as desired over 60 seconds. The event of this max torque being applied is unlikely and will only apply due to a failure of the variable frequency drive and its soft start technology.
  • Page 9: Preparing The Work Site

    Skyblade Fans can be hung from a unistrut, angle irons, or an I-beam. See installation instructions on the following page. Do not mount the fan to single purlins, trusses, or bar joists. Consult a structural engineer for installation methods not covered in the manual.
  • Page 10: Mounting Method 1: Unistrut

    état, et capable de supporter des charges de jusqu’à 650 lb (295 kg). Il est de la seule responsabilité du client de vérifier que la structure du bâtiment est suffisante pour l’installation du ventilateur. Skyblade fans recommande de consulter un ingénieur en structure avant d’attiser installation.
  • Page 11 ATTENTION: Do not tighten the hardware until the upper yoke has been mounted to the unistrut. Grade 5 Hardware (customer supplied) a. (4) 1/2”-13 GR 5 Bolt b. (8) 1/2” Flat Washer c. (4) 1/2” Nylock Nut d. (4) 2-1/2” Square Washer Where Form Follows Function SKYBLADe FANS (PART NAME HERE)
  • Page 12: Mounting Method 2: Angle Iron

    .25”(.6cm) 3”(7.6cm) over 8’ (2.4m) - x 3”(7.6cm) 12’ (3.7m) x.25”(.6cm) *2 pairs of angle irons. Pairs should be placed back to back and fastened in center (see step 2). Height Thickness Width Where Form Follows Function SKYBLADe FANS...
  • Page 13 Align the angle irons to each other and tighten the bolts to 90 ft-lb (122 N-m) using a 3/4” socket with torque wrench. Proceed to step 5.6b. Grade 5 Hardware (customer supplied) a. (2) 1/2”-13 GR 5 Bolt b. (4) 1/2” Flat Washer c. (2) 1/2” Nylock Nut Where Form Follows Function SKYBLADe FANS...
  • Page 14 Grade 5 Hardware (customer supplied): a. (4) 1/2”-13 GR 5 Bolt b. (8) 1/2” Flat Washer c. (4) 2-1/2” Square Washer (see diagram) d. (4) 1/2” Nylock Nut 2.5” (6.4 cm) 9/16” Dia. (1.4 cm) 2.5” (6.4 cm) Where Form Follows Function SKYBLADe FANS...
  • Page 15 8e année, comme illustré. Proceed to step 5.7. Grade 5 Hardware (customer supplied): a. (4) 1/2”-13 GR 5 Bolt b. (8) 1/2” Flat Washer c. (4) 2-1/2” Square Washer (see diagram) d. (4) 1/2” Nylock Nut Where Form Follows Function SKYBLADe FANS...
  • Page 16 (4) 1/2”-13x2-1/2” GR 5 Bolt b. (8) 1/2” Flat Washer c. (4) 1/2”-13 Nylock Nut 8-1/4” (20.96 cm) Upper Yoke Top View MATERIAL: XXXXXXXX DRAWN BY: THIS DRAWING IS TH DISCLOSED T Upper Yoke Side View Where Form Follows Function SKYBLADe FANS Page. 16...
  • Page 17: Mounting Method 3: I-Beam

    MOUNTINg MeThOD 3: I-BeAM NOTE: Mounting to I-beams requires the purchase of the I-beam Adapter Kit in lieu of standard Upper Yoke from SkyBlade Fan Company. CAUTION/ATTENTION Install the “Clamping Shims” only if the thickness of the I-beam flange exceeds 3/8” (1cm). The mounting holes of the shim are closer to one side than the other.
  • Page 18: Mounting Method 4: Purlins

    MOUNTINg MeThOD 4: PURLINS NOTE: Purlin brackets and hardware are available from SkyBlade Fan Company upon request and not included standard. 5.9 Selecting Proper Angle Irons Select the proper angle irons based on the requirements stated under section 5.3. 5.10 Pre-Drill Purlins Drill four 9/16”...
  • Page 19 Purlin Bracket Hardware (per set, supplied): a. (2) 1/4” Formed Steel Purlin Bracket b. (2) 1/4” Steel Purlin Backplate c. (16) 1/2”-13-1 3/4” GR 5 Bolt d. (16) 1/2” Nylock Nut e. (32) 1/2” Flat Washer Where Form Follows Function SKYBLADe FANS...
  • Page 20: Hanging The Fan

    The safety cable is a critical safety feature of the fan and must be installed correctly. Le câble de sécurité est une caractéristique de sécurité essentielle de la soufflante qui doit être installé correctement. Cable End Detail Where Form Follows Function SKYBLADe FANS...
  • Page 21 Tighten bolts to 90 ft. lbs. (122 N-m) using a 3/4” socket with torque wrench. Lower Yoke Hardware (supplied): a. (2) 1/2”-13x3 1/2” GR 5 Bolt b. (4) 1/2” Flat Washer c. (2) 1/2”-13 Nylock Nut Where Form Follows Function SKYBLADe FANS...
  • Page 22: Installing Guy Wires

    1. Slide the gripple fastener (as supplied) over the opposite end of the wire. 2. Feed the end of the guy wire through the guy wire loop on the fan motor and then through the gripple, removing any slack from the cable. Where Form Follows Function SKYBLADe FANS...
  • Page 23 Eye Hook (Ceiling) Gripple Hook Tab (Motor) a Beam Clamp a Gripple Hook Tab b Eye Hook b Guy Wire c Gripple Wire Loop c Gripple Fastener Gripple Maximum Angle Ceiling/Beam Guy Wire 45° Maximum Where Form Follows Function SKYBLADe FANS...
  • Page 24: Installing Blades

    XX.XX.XX XXXX _001 THIS DRAWING IS THE EXCLUSIVE PROPERTY OF SKYBLADE FAN COMPANY AND CANNOT BE REPRODUCED OR a. (3) Soc Cap 5/16-18 x 5/8 DISCLOSED TO ANY THIRD PARTY WITHOUT THE AUTHORIZATION OF SKYBLADE FAN COMPANY b. (3) Soc Cap 5/16-18 x 3/4 c.
  • Page 25 DRAWN DATE: PART NUMBER: REV: XX.XX.XX XXXX _001 THIS DRAWING IS THE EXCLUSIVE PROPERTY OF SKYBLADE FAN COMPANY AND CANNOT BE REPRODUCED OR DISCLOSED TO ANY THIRD PARTY WITHOUT THE AUTHORIZATION OF SKYBLADE FAN COMPANY Where Form Follows Function SKYBLADe FANS...
  • Page 26 Thoroughly inspect the hub, the bolts and brackets within the hub to guarantee clear and proper rotation. If you find that the fan has a bracket that is hitting another object on the hub, contact SkyBlade Fan Company for a resolution. Where Form Follows Function...
  • Page 27 DRAWN BY: DRAWN DATE: PART NUM XX.XX.XX XXXX THIS DRAWING IS THE EXCLUSIVE PROPERTY OF SKYBLADE FAN COMPANY AN Wingtip DISCLOSED TO ANY THIRD PARTY WITHOUT THE AUTHORIZATION OF Wingtip Hardware Kit (supplied): a. (3) BTN Cap Screw 10-32 X 3/8...
  • Page 28: Electrical Installation

    CAUTION/ATTENTION SkyBlade Fan Company is not liable for any voltage disturbances with explicit reference to electronic magnetic interference (EMI). Voltage disturbance refers to transient overvoltage, voltage unbalance, voltage swells, rapid voltage change, flicker, superimposed signals, harmonic voltages, supply voltage variations, voltage dips and frequency/time deviation.
  • Page 29 à l’état solide. The installation of a SkyBlade Fan must be in accordance with the National Electrical Code, ANSI/NFPA 70-1999, and all local codes. The procedures and techniques outlined in this manual are merely a guide for proper installation.
  • Page 30 Pour éviter un court-circuit, faire très attention de ne pas obtenir des copeaux de métal dans le contrôle. The SkyBlade Fan product warranty will not cover equipment damage or failure that is caused by improper installation. La garantie des produits Skyblade Fan ne couvrira pas les dommages à l’équipement ou de l’échec qui est causé...
  • Page 31: Electrical

    9.2 Running the Motor Wire The SkyBlade Mini Prop series’ custom designed chassis makes for running the motor wire in an incognito fashion. The motor wire slot on the top of the chassis allows the power wire to be ran through (or affixed to the side) of the extension bar, then conveniently through the top plate of the chassis and directly in to the motor electrical box.
  • Page 32 If the installation of the fan is required to be wired to a fire alarm emergency shut-off, an external relay feed and the fan(s). will have to be placed by a fire suppression specialist between the voltage line Power Supply MOTOR Where Form Follows Function SKYBLADe FANS...
  • Page 33: Troubleshooting

    Do not run your controller and sensitive equipment on the same power line. c. Install properly sized EM/RFI filter. d. Contact Customer Service at 1-586-806-5107. 5. LED indicator is not blinking in normal fashion. Please contact Skyblade Fans customer service to resolve issue. Where Form Follows Function SKYBLADe FANS...
  • Page 34 Continued on page 35 rating label. Note all delta power configurations are incompatible with Fix incorrect SkyBlade fans. wiring. Is the input voltage correct? Can the speed vary from 0-100% Consult factory. Check splices and wiring properly? at the controller.
  • Page 35 • If the wrong fuse is placed on the breaker and a spike occurs the drive may have been blown. Driver will need to be replaced . Contact Factory NOTE: Fan blades must be ON in order to troubleshoot. Where Form Follows Function SKYBLADe FANS...
  • Page 36: Parts

    Black Wing Tip PP-054 Hub Cylinder (Silver) PP-190.3 3 Blade Boomerang Bracket PP-064.3 Hub Plate (3 Silver Mini Blade) PP-228 Driver - 1 ph PP-078 Safety Plate PP-230 Driver - 3 ph PP-084 Trantorque Bushing Where Form Follows Function SKYBLADe FANS...
  • Page 37: User Servicing Instructions

    8. Administer proper cleaning techniques such as dusting blades, motor, reducer and chassis. If desired, used a water based cleaner to polish blades. If you have any questions, please contact customer service at 1-586-806-5107. Where Form Follows Function SKYBLADe FANS...
  • Page 38 USeR SeRvICINg INSTRUCTIONS Maintenance Log: DATE: MAINTENANCE PERFORMED REPLACEMENT PARTS REQUIRED Replacement Part List: PART NO. DESCRIPTION Where Form Follows Function SKYBLADe FANS...
  • Page 39 NOTeS Where Form Follows Function SKYBLADe FANS...
  • Page 40 SkyBlade Fan Company | Where Form Follows Function SkyBlade and SkyBlade Fans ® ® are the trademarks of SkyBlade Fans. 24501 Hoover Road, Warren, Michigan 48089 USA +1 (586) 806-5107 | sales@skybladefans.com www.SkyBladeFans.com LIMMP.0123_18...
