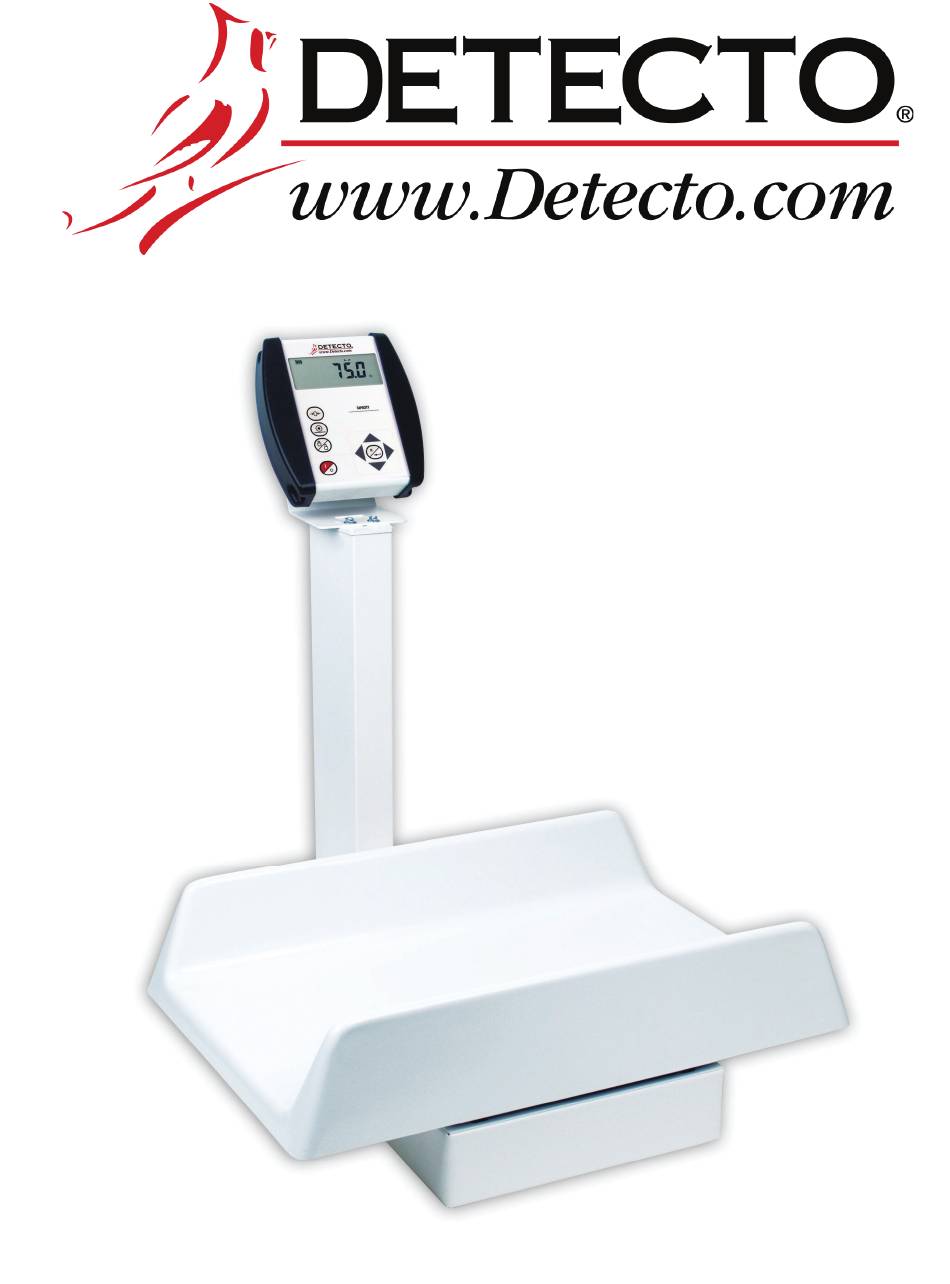

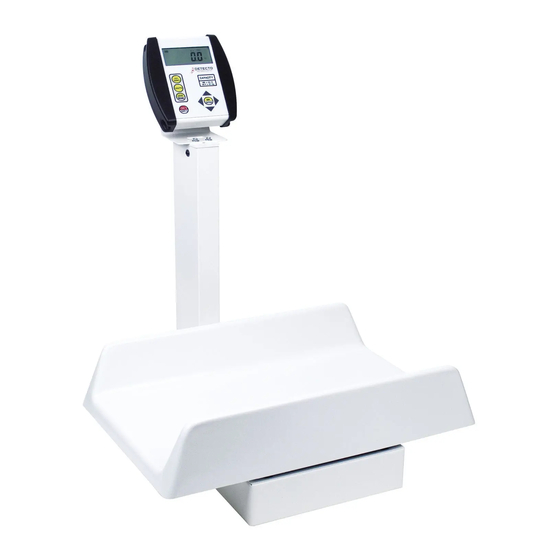

  • Page 1 DIGITAL Pediatric Scale Models 8435/8435KG Owner’s Manual 8525-M316-O1 Rev B 8435 Owner’s...

  • Page 2: Proper Disposal

    You may find the booklet "How to Identify and Resolve Radio TV Interference Problems" prepared by the Federal Communications Commission helpful. It is available from the U.S. Government Printing Office, Washington, D.C. 20402. The stock No. is 001-000-00315-4. 8525-M316-O1 Rev B 8435 Owner’s...

  • Page 3: Specifications

    SPECIFICATIONS Capacity …..…..…..… Model 8435, 130 lb x 0.1 lb (Model 8435KG, 59 kg x 0.05 kg) Tray Size ...…..….. 22 in L x 14.7 in W x 4.5in D (56 cm L x 37 cm W x 11 cm D) Shipping Weight …..…...

  • Page 4: Scale Assembly

    2. Using a Phillips screwdriver, install the eight screws and washers to secure the column to the scale base as shown in Figure 2. Figure 2. - Install eight screws and washers to secure column to scale base 8525-M316-O1 Rev B 8435 Owner’s...

  • Page 5: Indicator Installation

    3. Attach baby tray to scale platform using the 2 flat head screws remove in step 1. DO NOT OVER-TIGHTEN THE SCREWS. 4. The scale is now ready for operation. Figure No. 6 8525-M316-O1 Rev B 8435 Owner’s...

  • Page 6: Ac Power Adapter

    It will take approximately 8 to 10 hours to fully recharge the batteries in the display. Charging the batteries for more than 10 hours will not damage them. NOTE: The indicator may be operated while the batteries are charging. 8525-M316-O1 Rev B 8435 Owner’s...

  • Page 7: Battery Installation/Replacement

    Refer to the steps on page 3. 12. The scale is now ready for operation. For more information on setup and operation of the indicator, see the 750 Owner’s Manual (8555-M483-O1). Figure No. 9 8525-M316-O1 Rev B 8435 Owner’s...

  • Page 8: Operation

    6. When the weight is stable (STABLE annunciator will turn on), read the weight display. 7. If a printer is connected to scale, press the PRINT key to print a ticket. 8. Remove the baby from baby tray. 8525-M316-O1 Rev B 8435 Owner’s...
  • Page 9 REPLACEMENT PART IDENTIFICATION Item Qty. Part Number Description 0033-0532-0A TOP PLATE ASSY 0033-0533-0A PLATFORM ASSY 0033-0534-0A LOAD CELL ASSY 0033-0546-08 BASE FEET 33P50 BABY TRAY DIGITAL WEIGHT INDICATOR Not Shown 8525-M316-O1 Rev B 8435 Owner’s...

  • Page 10: Statement Of Limited Warranty

    (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • Page 11 This warranty sets forth the extent of our liability for breach of any warranty or deficiency in connection with the sale or use of the product. Detecto will not be liable for consequential damages of any nature, including but not limited to, loss of profit, delays or expenses, whether based on tort or contract.
  • Page 12 Cardinal Scale Manufacturing Co. 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 Technical Support: 1-866-254-8261 E-mail: tech@cardet.com 8525-M316-O1 Rev B 04/20 8525-M316-O1 Rev B 8435 Owner’s...
