SP tools SP61005 User Manual

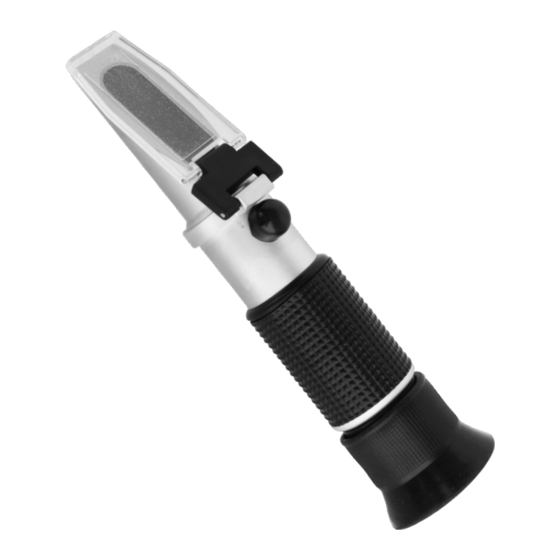

Hand-held refractometer

USER MANUAL

AFTER SALES SUPPORT:

WWW.SPTOOLS.COM

IMPORTANT

ALL PERSONS WHO ARE TO USE THIS EQUIPMENT MUST THOROUGHLY READ

AND UNDERSTAND THIS INSTRUCTION MANUAL PRIOR TO OPERATION.

SP61005

HAND-HELD

REFRACTOMETER

RETAIN THESE INSTRUCTIONS

AND ATTACH RECEIPT TO

MANUAL FOR FUTURE

NOTE: Proof of purchase must be retained by

the customer as it will be required in the

event of a claim under warranty.

AUSTRALIA: Visit the website's contact page to get in

touch with your local service department.

INTERNATIONAL: Use the county selector to get in touch

with your service department in your country or region.

REFERENCE

Table of Contents

Need help?

Do you have a question about the SP61005 and is the answer not in the manual?

Page 1 USER MANUAL SP61005 HAND-HELD REFRACTOMETER RETAIN THESE INSTRUCTIONS AND ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE NOTE: Proof of purchase must be retained by the customer as it will be required in the event of a claim under warranty. AUSTRALIA: Visit the website’s contact page to get in AFTER SALES SUPPORT: touch with your local service department.
Page 2 CONTENTS Introduction Parts Diagram Operation Steps Warning - Maintenance Warranty Details INTRODUCTUCTION For Hand Held refractometer Parts Diagram: Operation Steps: Step1. Open daylight plate, and place 2-3 drops of distilled water on the main prism. Close the daylight plate so the water spreads across the entire surface of the prism without air bubbles or dry spots.
Page 3 Step3. Look into the eyepiece and turn the calibration screw till the boundary between the upper blue field and the lower white field meet exactly on the zero scale, such as shown in the image. That is the end of the calibration process. Make sure the ambient room temperature is correct for the solution you are using (20℃/68℉).
Page 4 To the extent permitted by law and subject to this Limited Warranty, and as part of the terms of the sale of the equipment or part thereof: SP Tools shall not be liable for any form of loss, damage, cost, injury or harm of any kind (whether direct, indirect, special or consequential) howsoever arising from the use or supply of the equipment to the purchaser.
