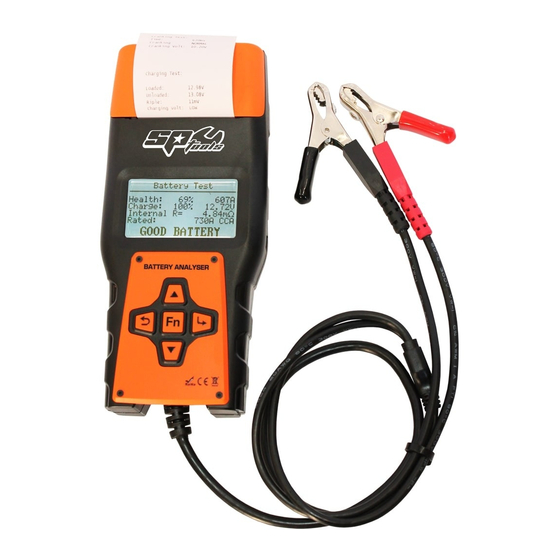

Battery analyser w/ built-in printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
AFTER SALES SUPPORT:
WWW.SPTOOLS.COM
IMPORTANT
ALL PERSONS WHO ARE TO USE THIS EQUIPMENT MUST THOROUGHLY READ
AND UNDERSTAND THIS INSTRUCTION MANUAL PRIOR TO OPERATION.
SP61065
BATTERY
ANALYSER w/
BUILT-IN PRINTER
RETAIN THESE INSTRUCTIONS
AND ATTACH RECEIPT TO
MANUAL FOR FUTURE
NOTE: Proof of purchase must be retained by
the customer as it will be required in the
event of a claim under warranty.
AUSTRALIA: Visit the website's contact page to get in
touch with your local service department.
INTERNATIONAL: Use the county selector to get in touch
with your service department in your country or region.
REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP61065 and is the answer not in the manual?

Questions and answers

Related Manuals for SP tools SP61065

Summary of Contents for SP tools SP61065

  • Page 1 USER MANUAL SP61065 BATTERY ANALYSER w/ BUILT-IN PRINTER RETAIN THESE INSTRUCTIONS AND ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE NOTE: Proof of purchase must be retained by the customer as it will be required in the event of a claim under warranty.

  • Page 2: Table Of Contents

    CONTENTS Introduction Technical Parameters Technical Specifications Intended Use Scope of Delivery Safety Precautions & Warnings Tool Description Internal Resist Explanation Voltage Explanation. Operating Instructions Before Testing Product Set up Operation & Test Battery Test Cranking Test Charging System Test Review Data Print Data Cleaning &...

  • Page 3: Introduction

    INTRODUCTUCTION Product Profile The SP61065 Battery Tester adopts what is currently the world's most advanced conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps (CCA) capability of the vehicle starting battery, and its state of health. This tool assists maintenance personnel to find the problem quickly and accurately.

  • Page 4: Technical Parameters

    This device is intended for automotive and or marine, trade or commercial applications, in dry, non-explosive environments 0 to 50°C (32 to 122 F°) Scope of Delivery • User Manual: Instructions on tool operations. • SP61065 Tester / Printer with cable and terminal clamps. • Thermal print paper • USB cable •...

  • Page 5: Safety Precautions & Warnings

    Safety Precautions & Warnings To prevent personal injury or damage to vehicles and/or the Battery Analyser, read this instruction manual first and observe the following safety precautions at a minimum whenever working on a vehicle: Always perform automotive testing in a safe environment. Wear safety eye protection that meets the AS/NZS 1337.1 standards.

  • Page 6: Tool Description

    Tool Description 1. LCD DISPLAY -- Backlit display Indicates test results 2. ENTER BUTTON -- Confirms a selection (or action) from a menu 3. EXIT BUTTON -- Cancels a selection or returns to menu 4. Up Key -- Moves up through menu and sub menu items 5.

  • Page 7: Voltage Explanation

    Voltage Explanation Normally, it is 100% charged when the battery voltage is 12.60V or above. • 100% Charged = Battery voltage 12.60V or above • 75% Charged = Battery voltage 12.45V • 50% Charged = Battery voltage 12.15V • Discharged condition = Battery voltage less than 12.00V Operating Instructions If testing batteries of low-frequency use, it is necessary to cycle (charge and discharge) the battery several times before testing, normally 3-5 times will achieve a reliable test result.

  • Page 8: Product Setup

    Product Setup The tool allows you to make the following adjustments and settings: • Language – Select the desired language • Function setup – Set the one-click-key function • Contrast adjustment – Adjusts the contrast of the LCD display • Time Settings: –...

  • Page 9: Operation & Test

    Contrast 1) From System Setup menu, use Enter button to select contrast. 2) Use UP and DOWN button to select the contrast Contrast value and press Enter button to save your selection and return to previous menu. Time Setting From System Setup menu, use Enter button to select time setting.
  • Page 10 Battery System Standard and Rating The SP61065 battery tester will test each battery according to the selected system and rating. Use UP/DOWN key to select according to the actual system standard and rating marked on the battery. See in the below picture, the arrow indicated location.
  • Page 11 Battery Test Result Battey test result includes 5 types as follows 1) Good Battery Health:96% 490A Charge:100% 12.64V The battery is without any problem, Ω Internal R=6.1m Please be relaxed to use! Rated: 500A GOOD BATTERY 2) Good, Recharge Health:78% 440CCA Good battery but low power, recharge before using.

  • Page 12: Cranking Test

    Cranking Test Tester prompts as following: Voltage type 2. 24V Use the Up/Down button to select 12V or 24V cranking system, press the key to select. Tester will go to next screen. Cranking Test START ENGINE Starting the engine as prompted, tester will automatically complete the cranking test and display the result.

  • Page 13: Charging System Test

    Charging Test Please choose "Charging Test" and press Enter key, select 12V or 24V from next screen to choose correct charging system test. NOTE: Do not shut down the engine during the test. Do the steps according to the following instructions.

  • Page 14: Review Data

    Charging Test Result: 1) Charging Volt: Normal - Charging system shows the generator output normal, no problem detected. 2) Charging Volt: Low - Charging volt of the charging system is low. Check drive belt of the generator whether slip or running off. Check the connection between generator and battery is normal or not.

  • Page 15: Print Data

    Print time: Year/Month/Day 2019/02/01 16:14:20 Print Data ------------------------------------------ Battery Test: Choose the function of Print and press Enter. GOOD BATTERY Charge: 100% Voltage:12.64V Main Menu Health: 96% 1. Battery Test Measured: 490CCA 2. Cranking Test Select Input: CCA 3. Charging Test Rated: 500A 4.
  • Page 16 Then open the Print software Choose the COM Port NO. If there are some data history in print software, please kindly clear them. Choose the function of Print in the tool Main Menu 1. Battery Test 2. Cranking Test 3. Charging Test 4.
  • Page 17 5，Then it will enter the sub-menu as below Print Data Print Battery Print Cranking Print Charging Print All Choose the information you want to print. Once the data is transferred to the computer, the print software will show the information below.

  • Page 18: Cleaning & Maintenance

    Cleaning and Maintenance Keep your Battery Analyser Electrical System Tester & Report Printer: • Dry, clean and free from oil, water and grease. • Use a mild detergent on a clean cloth to clean the outside of the tool, when necessary. •...

  • Page 19: Warranty Details

    To the extent permitted by law and subject to this Limited Warranty, and as part of the terms of the sale of the equipment or part thereof: SP Tools shall not be liable for any form of loss, damage, cost, injury or harm of any kind (whether direct, indirect, special or consequential) howsoever arising from the use or supply of the equipment to the purchaser.
