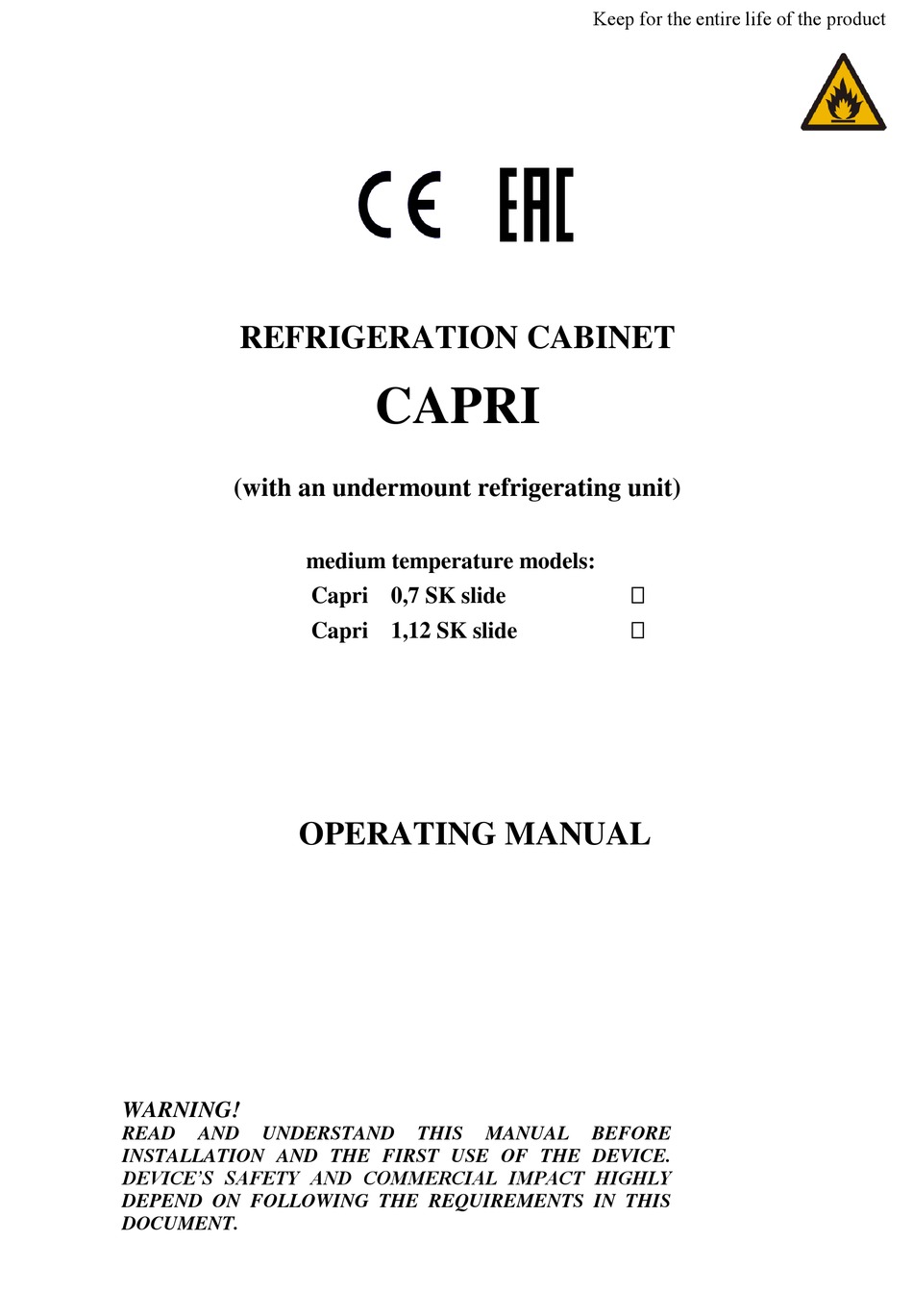

REFRIGERATION CABINET
(with an undermount refrigerating unit)
WARNING!
READ
AND
UNDERSTAND
INSTALLATION AND THE FIRST USE OF THE DEVICE.
DEVICE'S SAFETY AND COMMERCIAL IMPACT HIGHLY
DEPEND ON FOLLOWING THE REQUIREMENTS IN THIS
DOCUMENT.
CAPRI
medium temperature models:
Capri 0,7 SK slide
Capri 1,12 SK slide
OPERATING MANUAL
THIS
Keep for the entire life of the product
MANUAL
BEFORE
Advertisement
Table of Contents
Related Manuals for GGMgastro CAPRI
Summary of Contents for GGMgastro CAPRI
- Page 1 Keep for the entire life of the product REFRIGERATION CABINET CAPRI (with an undermount refrigerating unit) medium temperature models: Capri 0,7 SK slide Capri 1,12 SK slide OPERATING MANUAL WARNING! READ UNDERSTAND THIS MANUAL BEFORE INSTALLATION AND THE FIRST USE OF THE DEVICE.
-
Page 2: General Data
INTRODUCTION This Operating Manual (hereinafter Manual or RE), that also includes certificate data, applies to series of Capri refrigerated wall-sited undermount cabinets (hereinafter referred to as cabinet or device). Data listed below provides information as well as guidelines for consumers and maintenance specialists regarding: −... - Page 3 1. 7. Store the device in a storage facility or under a shed and in a shipping container provided by the manufacturing company, with storage temperature above minus 35°С and humidity level under 80%. Storage conditions group 4 according to GOST 15150.
-
Page 4: Technical Specifications
2. TECHNICAL SPECIFICATIONS 2. 1. Main technical specifications of the device are as specified in table 1. Table 1 Parameter value Parameter name 0,7SK slide 1,12SK slide Inner volume, m 0.64 1.04 Active volume, m 0.60 0.98 Effective volume temperature with environment temperature 25° and from 0 to relative humidity level 60%, °C plus 7... -
Page 5: Package Contents
3. PACKAGE CONTENTS 3. 1. Package contents are as per table 2. Table 2. Quantity, pcs. Name 0,7SK slide 1,12SK slide Cabinet Operating manual − Rack-shelf 6.540.334 − Rack-shelf 6.540.340 Shelf bracket 7.297.001 Handle 03-2-0024 Support 301319.008 Self-driving screw 4,2х14 sharp 4. - Page 6 5. UNPACKING, ASSEMBLY AND PUTTING INTO OPERATION 5. 1. Inside the premise put the device on wooden pallet and transport it with the fork lift or lift cart with carrying capacity equal or higher than device's gross weight. TO AVOID DAMAGING THE REFRIGERATING AND ELECTRICAL SYSTEMS THE DEVICES HAS TO BE PLACES ON A WOODEN PALLET FOR IT TO BE MOVED WITH A FORK LIFT! 5.
- Page 7 6. GRID CONNECTION. SAFETY MEASURES 6.1. The electric equipment meets the standing requirements for safety, set forth in the technical regulations, adopted by Customs Union. 6.2. Supply voltage range should not deviate from minus 10% to plus 10% from its nominal figure, provided in table 1 section 2 in this Manual.
- Page 8 Pic. 2 Control panel Controller (1) serves to automatically maintain set temperature level in the refrigerated enclosure and control the evaporator defrosting process. Manufacturers setting provide the optimal performance of the device. Changing the controller settings must be conducted by qualified technical personnel of the service provider, and in accordance with the controller manual.
- Page 9 2. Violating the recommendations, set forth in article 1.3 of this Manual might lead to the glass doors fogging, which does not constitute a malfunction. 3. Frequent door opening may lead to temperature increase in the effective volume. When loading the device, equipped with two doors, do not open both slide- doors at the same time, load the items through one door at the time, try to minimize the time the doors are opened.
- Page 10 8. DISPOSAL. 8. 1. After the expiration of the terms of service, the device should be taken out of service and the one of the following decisions should be made: disposal, repairing, checking the condition and calculating a new term of service. 8.
-
Page 11: Maintenance Record
9. MAINTENANCE RECORD. WARNING: INSTALLATION, COMMISSIONING, TECHNICAL MAINTENANCE AND REPAIRS SHOULD BE PERFORMED BY SPECIALIST TECHNICIANS FROM A SPECIALISED ORGANIZATION (SERVICE PROVIDER) IN A STRICT COMPLIANCE WITH STANDING LABOR SAFETY STANDARDS. DO NOT MAKE ANY ALTERATIONS IN THE PRODUCT DESIGN. WARNING! THE SIGN, SAYING "INFLAMMABLE"... - Page 12 10. LIST OF POSSIBLE MALFUNCTIONS AND FIXES. Table 4. Defect name, external and other Probable reason How to fix signs 1. Device is connected to the power grid but is not working. 1.1. The controller display is No power in the power Check the voltage in the power dark.
- Page 13 3.5. Fan is on, compressor is off. Compressor jams. Replace the compressor. Compressor stator feed-through receives normal voltage. Compressor engine humming. 4. Compressor shuts down after a short while 4.1. Compressor thermal Condenser fan engine does Check the contacts. Replace the protection triggers not work condenser fan engine.
- Page 14 Freezing moisture in the Dehydrate the system with the throttling device. After technological dehydrating filter. switching off the throttling Vacuum the refrigerating system device for 3-4 hours and then before refilling it. If this does not switching on, or heating the solve the problem, replace the throttling device...
-
Page 15: Manufacturer Warranty
11. Smell inside the device's Lack of regular or thorough Carefully wash the interior volume interior volume. cleaning inside the interior of the device. volume. Enable ventilation for 3-4 hours. The device is kept turned off for prolonged periods of times. - Page 16 expenses, incurred by providing the qualified personnel. The responsibility to present the evidence of guilt lies on the Buyer. 11. 11. In case of the Buyer's neglect to observe the above-mentioned articles, the manufacturer will have the right to immediately interrupt the warranty without further notice.
- Page 17 APPENDIX A Sectional view of the cabinet 0,7SK slide; 1,12SK slide 1. Effective volume. 2. Engine compartment. 3. Air cooler (evaporator). 4. Compressor and condenser. 5 Controller. 6. Diode lamp. 7. Frame. 8. Door. 9. Rack- shelf. 10. Machine section shield. 11. Lighting box.
- Page 18 APPENDIX B Medium temperature refrigeration cabinet 0,7SK slide; 1,12SK slide Basic circuit diagram. А1 – compressor and condenser; А2 – controller; EL1,EL2, EL3*,EL4* – LED lamp; М – evaporator fan; RK1 – temperature sensor; SA – lighting switch; U1 – power source for LED lamps;...
