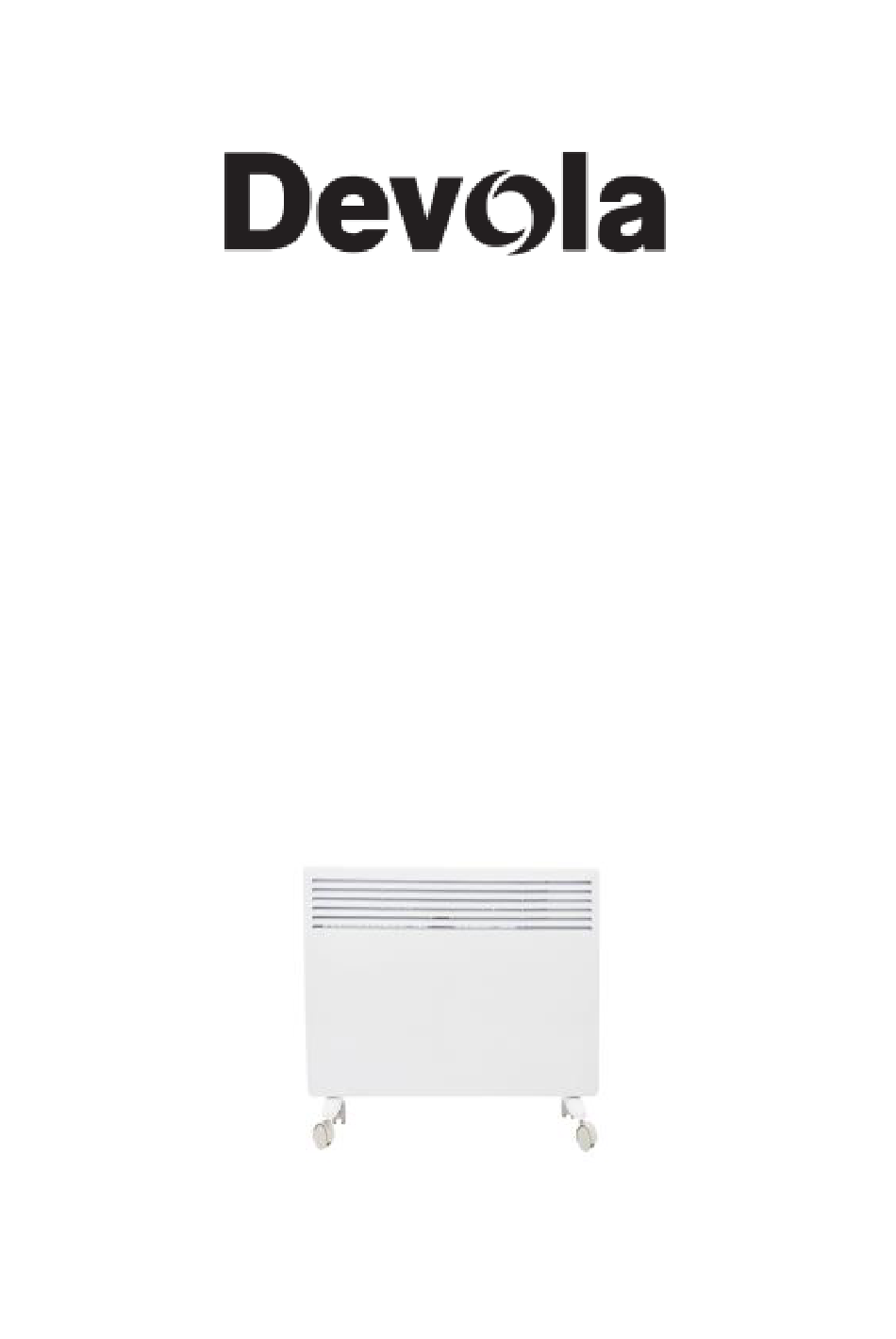

- Page 1 ELECTRIC CONVECTOR HEATER SLIMLINE PANEL HEATER WITH DIGITAL TIMER MODEL(s): DVM10WF DVM15WF DVM20WF DVM24WF User Instructions Please read and save these instructions...
-
Page 2: Safety Instructions
Safety Instructions BEFORE FIRST USE Read and follow all the instructions in this manual even if you feel you are familiar with the product and find a place to keep it handy for future reference. NOTE: The rating of this product (as marked on the product rating label) is based on specific loading tests. - Page 3 ·Switch off and leave to cool before moving. ·Do not operate with cord coiled up as a build up of heat is likely, which could be sufficient to become a hazard. ·The use of an extension cord with this appliance is not recommended. ·Do not remove plug from power socket until the appliance has been switched off.
-
Page 4: Circuit Diagram
Appliance Overview Fig.1 Air Outlet Control Panel Power Switch Castor Wheel Stand Circuit Diagram Heating element Tip over switch KSD thermostat KSD thermostat Temperature sensor Switch... -
Page 5: Installation
Installation Warning 1. Fix the heater correctly on the wall or place the heater in the sturdy position. 2. The heater should be installed so that the controls cannot be touched by a person using a bath or shower. 3. The heater should be installed so that it is not located directly under a socket outlet. Clearances Minimum 1000mm Air outlet... -
Page 6: Control Panel
Control Panel Fig.2 Control Panel 1. Power Indicator 8. Select Full/Half Capacity Heat Mode 2. Half Power Indicator (LO) 9. Power/Set Button 3. Full Power Indicator (HI) 10. Timer Indicator 4. Heating Indicator 11. Time Indicator 5. Temperature Measure (℃) 12. - Page 7 Wi-Fi Reset • Hold the heat capacity button (8) for 5 seconds to re-set the Wi-Fi. Child Lock 1. When the unit is in operation, press the up (6) and down (7) buttons simultaneously for 3 seconds. The control panel will now be locked. 2.
- Page 8 Connecting to the App – Smart Life 1. Plug the heater into mains supply suitable for a BS plug. 2. Switch the heater on via the power switch on the right-hand side of the unit (when front facing). Note: you do not need to switch the unit on via the power button (9) to connect the device to the Smart Life app.
- Page 9 Using the App 1. Use the + and – button on the app to adjust the desired temperature 2. Press the Switch button to turn the unit on & off 3. Press the Gear button to select 1 (Low Heat) or 2 (High Heat) 4.
- Page 10 Considerations if the device fails to connect: Double check that you are connecting to a 2.4GHz network. If it is not you will need to look at splitting your SSID. Google, YouTube, your network provider are some sources to assist with this. Ensure the network connection is strong and secure.
- Page 11 Specifications Model Number DVM10WF DVM15WF DVM20WF DVM24WF Rated Power 500W/1000W 750W/1500W 1000W/2000W 1200W/2400W Rated Voltage 220-240V~ 50Hz Dimensions(mm) W460 x D107 x W595 x D107 x W830 x D107 x W950 x D107 x H400 H400 H400 Room Coverage (㎡) IP Rating IP24 Cable Length...
- Page 12 Electronic room temperature control plus week timer [no] Other control options Room temperature control, with presence detection [no] Room temperature control, with open window detection [yes] With distance control option [no] With adaptive start control [no] With working time limitation [no] With black bulb sensor [yes]...
-
Page 13: Warranty
This product is covered by a standard parts or replacement warranty for a period of 12 months from the date of purchase. Extend your warranty for 12 months for free by visiting www.devola.co.uk/warranty. Incorrect installation and failure to follow correct operating instructions are excluded. Consequential costs such as labour charges or damage to surroundings are expressly excluded.
Need help?
Do you have a question about the SLIMLINE DVM10WF and is the answer not in the manual?
Questions and answers
Heater set for 21 all day. Earlier the room got warm, but currently says its at 15 and room feels chilly,but 21 is still set. Any ideas?u
The DEVOLA SLIMLINE DVM10WF heater may show a temperature of 15°C while set to 21°C due to open window detection. If the ambient temperature rapidly falls by 3°C or more, the heater automatically shuts down. This could prevent it from reaching the target temperature.
