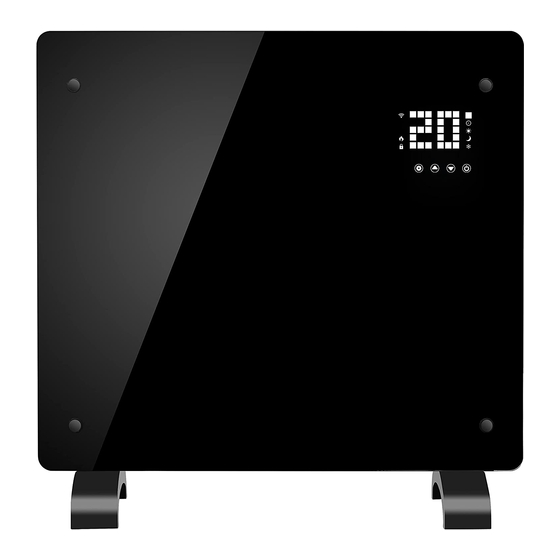

- Page 1 with Wi-Fi Control Instruction Manual Please read the manual carefully prior to use.
-
Page 2: Safety Instructions
Safety Instructions • Read the manual before you use the heater. Keep the manual and ensure it stays with the heater if you give it to a new owner. • Before use, check that the heater and all supplied accessories are present and intact. -
Page 3: Installation Instructions
into a bathtub or other water receptacle. • Do not use the heater in the immediate surroundings of a bath, shower or swimming pool. • Children of less than 3 years should be kept away unless continuously supervised. • Children aged between 3 and 8 years should only switch the appliance on/off provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 4: Wall Mounted Installation
Wall Mounted Installation 4 Hook Type Bracket 1. Take out 4 brackets, 6 expansion screws and 6 screws out from the box and fix 2 brackets onto the wall according to the distances between holes of the bracket, as depicted in the picture below. - Page 5 3. Holding the sides of the heater, align the brackets and corresponding holes and slide into position ensuring it is fastened securely.
- Page 6 A. Wi-Fi Connection B. Working Status-The flame icon is displayed if the heater is in operation C. Keyboard Lock D. Timer E. Comfort Mode F. Eco Mode G. Anti-frost H. Setting J. Down K. Power Switch/Wi-Fi Setting...
-
Page 7: Heater Control Panel
Heater Control Panel • First start by turning the heater on. The heater will start in standby mode, displaying the Wi-Fi icon and the current room temperature in °C. • Press the ON/OFF button to initiate heating. When the heater is switched on the heating icon and the Eco mode icon will illuminate by default. - Page 8 Connecting to Wi-Fi 1. To connect your heater to the Wi-Fi, the first step is to download the Smart Life app onto your smartphone or tablet. You can find the app by scanning the QR code below or searching “Smart Life” in the Google Play or Apple app store.
- Page 9 Once the icon is flashing, go to the app and press Add a Device. Select the device type(heater)in the Small Home Appliances tab and confirm that the indicator is flashing. You will then be prompted to enter your Wi-Fi password. This allows the app to find your heater using your Wi-F...
- Page 10 4. The app will then display its connecting screen. NOTE if the heater is failing to connect, press and hold the button for three further seconds. It will then switch to its secondary connection mode. The heater has two connection modes: one where the icon flashes slowly (once per second) and one where the icon flashes fast (three times per...
- Page 11 Using the Smart Life App You can use the app to control multiple devices. The status of your devices is shown on the device list: • Offline (device is turned off at the wall) • Turned Off (device is in standby mode) •...
- Page 12 You can change the heater’s current mode by tapping the mode buttons. You can adjust the mode’s temperature using the + and – buttons when you’re on that mode. Scheduling your Heating You can program your heating by creating a schedule of “events”, where the heater switches on or off.
-
Page 13: Other Features
Other Features Scenes “Scenes” bring all your devices together to respond to environmental conditions. Triggers of events include the temperature, humidity levels, air quality, sunrise and sunset, and device behavior. So, for example, you could set your windows to close every time your heater switches on;... -
Page 14: Technical Data
Technical Data Type Voltage Frequency Power Category DVPW1000B/DVPW1000WH 230V 50/60Hz 1000W DVPW1500B/DVPW1500WH 230V 50/60Hz 1500W DVPW2000B/DVPW2000WH 230V 50/60Hz 2000W ERP LABEL Model identifier(s): DVPW1000B/DVPW1000WH/DVPW1500B/DVPW1500WH/DVPW2000B/DVPW2000WH Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local... - Page 15 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
-
Page 16: Warranty
This product is covered by a standard parts or replacement warranty for a period of 12 months from the date of purchase. Extend your warranty for 12 months for free by visiting www.devola.co.uk/warranty. Incorrect installation and failure to follow correct operating instructions are excluded.
