This wiring is for the ModBox

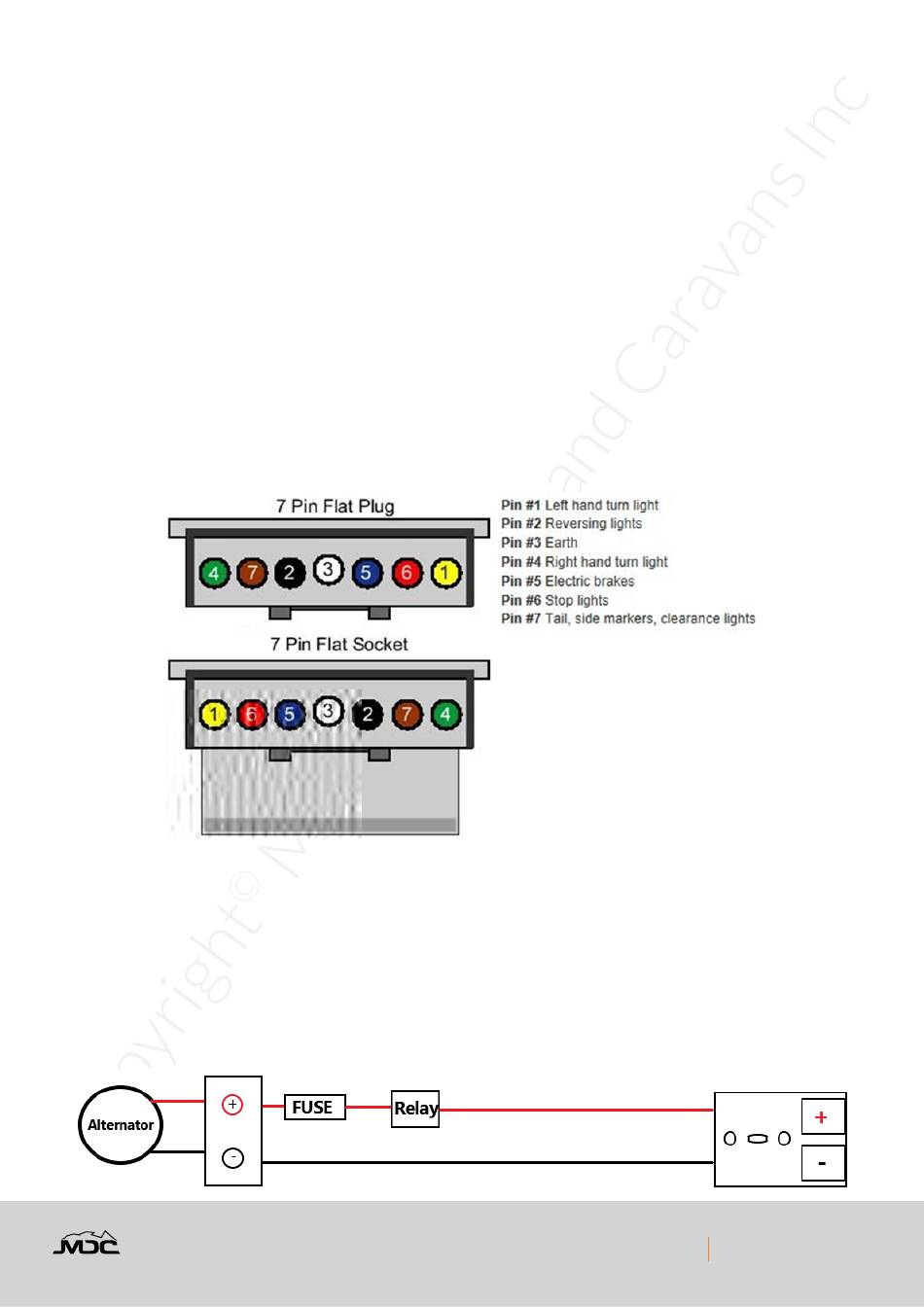

Trailer Lights Australia

Plug type – 7 Pin Flat (7 pin round by request)
Pin 1 Yellow Left Indicator
Pin 2 Black Reversing Signal
Pin 3 White Earth Return
Pin 4 Green Right Indicator
Pin 5 Blue Service Brakes
Pin 6 Red Brake Lights
Pin 7 Brown Taillights, clearance lights and side markers

Charging Camper

Plug Type – 50 amp Anderson Plug
Vehicle without smart alternator:
The Anderson plug can be connected to the start battery on the vehicle and should include the following to protect the
start battery.
1. 50 amp relay to stop power supply when vehicle is not running
2. 50 amp fuse or circuit breaker at the battery

Vehicle with smart alternator:

The Anderson plug can be connected to the start battery on the vehicle and should include the following to protect the
start battery.
1. a) A DC to DC charger will need to be installed in the camper to activate the smart alternatorthrough
the vehicle ECU to sense the camper batteries and charge to full capacity.
b) The vehicle smart alternator function will need to be turned off in the vehicles ECU to fully charge
the camper batteries.
2.50 amp relay to stop power supply when vehicle is not running
3.50 amp fuse or circuit breaker at the battery
