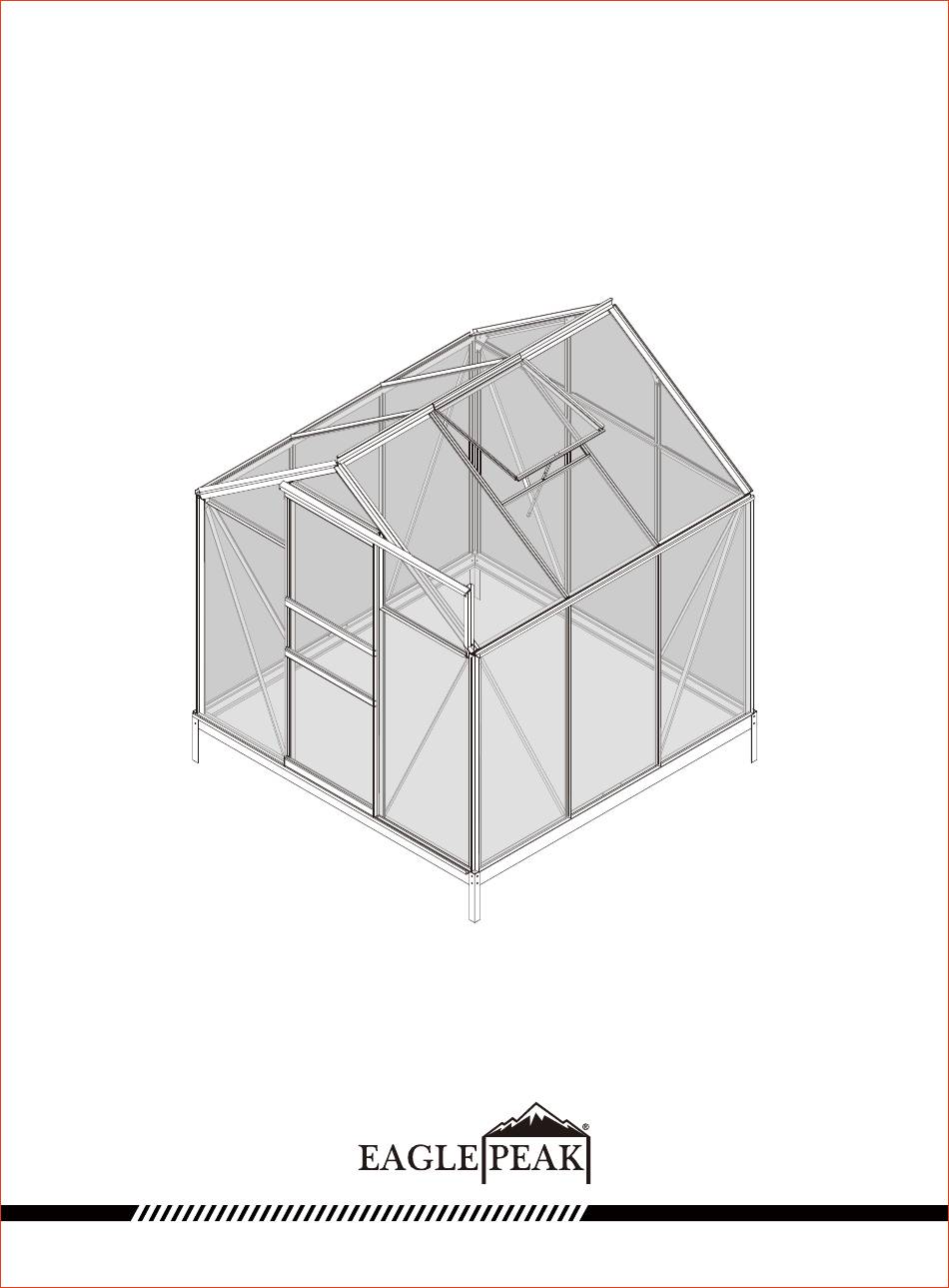

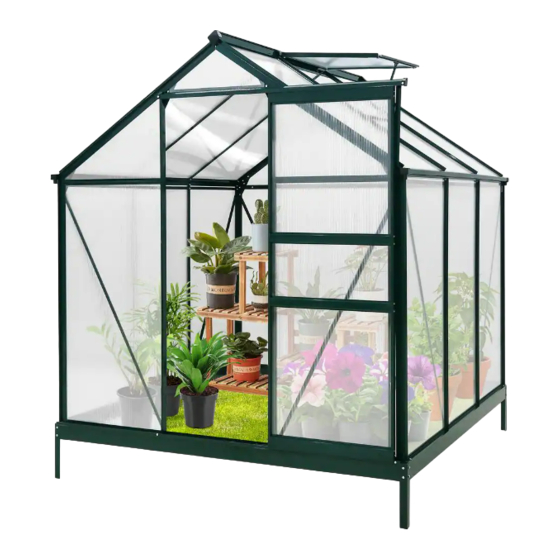

INSTRUCTION MANUAL
EAGLE PEAK 6 ft x 6 ft PC GREENHOUSE
Do not return your greenhouse to the place of purchase. For
warranty service, repair parts, or product questions please contact
Eagle Peak through the website and we'll reply immediately.
Thank you for choosing Eagle Peak !

Advertisement

loading
Need help?

Need help?

Do you have a question about the IM GHPC36-GRN-AZ and is the answer not in the manual?

Questions and answers

Related Manuals for Eagle Peak IM GHPC36-GRN-AZ

Summary of Contents for Eagle Peak IM GHPC36-GRN-AZ

  • Page 1 INSTRUCTION MANUAL EAGLE PEAK 6 ft x 6 ft PC GREENHOUSE Do not return your greenhouse to the place of purchase. For warranty service, repair parts, or product questions please contact Eagle Peak through the website and we'll reply immediately.
  • Page 2 Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the greenhouse. Please check with your local governing authority/local municipal codes regarding installation of structures before assembly. Caution! Proper placement of your greenhouse is essential. Do not place the product underneath electrical lines.
  • Page 3 IMPORTANT: · Please read and understand this manual before any assembly. Before beginning assembly of product, make sure all parts are present. Compare parts with packaging contents list. · If any part is missing, or if you have any questions, contact the service center at 1-(844)-805-0378 (toll free).
  • Page 4 Part List F-B07 G-P2 G-P1 F-07 F-19 F-08 F-19 F-06 F-24 F-18 F-09 F-B06 F-26 G-P2 F-12 F-18i F-25 F-B05 G-P3L G-P1 G-P1 F-27 F-20 F-17i F-B06 F-48 F-13 F-28 F-05 F-10 F-23 F-14b F-30 F-21 F-04 F-48 G-P3R F-18 F-01 G-P1 F-B05...
  • Page 5 PC Board Rear F-31a F-31a F-31a F-34 F-35 F-35 F-34 F-33a F-31b F-32a F-34 F-35 F-37 F-36 F-34 F-40 F-34 F-35 F-35 F-34 F-32a F-33a F-38 F-39 F-31a F-31a F-38 Front Notes: 1. Remove approximately 2 inches of film from all sheet edges before installing. Remove all film immediately after the constructions completed.
  • Page 6 Part List BASE Label Length Sketch F-01 F-02 1882 F-03b 1833 F-04 1833 F-B13 WALL AND ROOF F-05 1240 F-06 1105 F-07 1105 F-08 1650 F-09 1650 F-23 1240 F-24 1100 F-48 F-10 1644 F-11 1644...
  • Page 7 Part List Label Length Sketch F-B05 1836 F-B06 1833 F-17i F-18i 1815 F-18 1815 F-29 1360 F-30 1328 F-B07 1833 F-31a 1217x585 F-31b 618x585 F-32a 412x585 F-33a 412x585 F-34 1238x585 F-35 1110x585 F-36 540x585 F-40 F-19...
  • Page 8 Part List WINDOW Label Length Sketch F-20 F-25 F-26 F-27 F-28 F-37 577x583 DOOR F-12 572.5 F-13 1240 F-14b F-15 F-16b 1615 F-21 F-22b F-38 590x598 F-39 251x598...
  • Page 9 Part List PLASTIC Label Length Sketch G-P1 G-P2 G-P3L G-P3R SCREW F-B14 F-B15a ST4x10 F-B16 ST4x8 8 mm...
  • Page 10 Step 1 F-02 F-02 F-02 F-02 F-01 F-02 F-02 F-01 F-01 F-02 F-01 F-B14...
  • Page 11 Step 2 F-04 F-04 F-03b F-04 F-04 F-04 F-03b F-04 F-04 F-03b F-B14...
  • Page 12 Step 3 F-05 F-05 F-05 F-05 F-05 F-B13 F-05 F-B13 F-B14...
  • Page 13 Step 4 F-19 F-19 F-18i F-05 F-19 F-19 F-18i F-18i F-19 F-B14...
  • Page 14 Step 5 F-18i F-18 F-05 F-29 F-18 F-29 F-29 F-B13 F-18 F-29 F-B13 F-29 F-18 F-B14...
  • Page 15 Step 6 F-19 F-30 F-30 F-19 F-30 F-B13 F-30 F-19 F-B13 F-30 F-30 F-19 F-B14...
  • Page 16 Step 7 F-08 F-10 F-09 F-17i F-17i F-11 F-08 F-30 F-08 F-18i F-08 F-09 F-10 F-19 F-11 F-17i F-17i F-30 F-B14...
  • Page 17 Step 8 F-23 F-23 F-23 F-04 F-23 F-23 F-23 F-18 F-B13 F-23 F-23 F-B14...
  • Page 18 Step 9 F-31a F-31a F-34 F-31a F-34 F-34 F-34 F-34 F-31a F-34 F-31a F-31a F-34...
  • Page 19 Step 10 11.2 11.1 F-B06 11.1 11.2 F-B06 F-B06 F-05 F-23 F-23 F-B06 F-B14...
  • Page 20 Step 11 F-33a F-31b 10.1 F-48 F-18i F-32a F-48 F-48 F-32a F-48 10.2 F-33a F-48 10.1 10.2 F-33a F-17i F-48 F-18i F-48 F-31a F-31a F-31b F-18i /F-17i F-32a F-33a F-48 F-48 F-31a F-B14...
  • Page 21 Step 12 F-08 12.1 F-09 12.2 12.3 F-10 F-11 12.1 12.2 F-08 F-18i 12.3 F-17i F-B14...
  • Page 22 Step 13 F-07 13.2 13.1 13.1 F-06 F-19 F-06 F-19 13.3 F-07 F-19 13.1 13.2 13.3 13.3 F-06 F-06 F-07 F-07 F-19 F-19 F-06 F-07 F-19 F-B14...
  • Page 23 Step 14 F-07 14.1 F-06 F-B07 14.1 14.1 F-B07 F-06 F-07 F-B14 F-B07 F-B14...
  • Page 24 Step 15 F-40 F-12 15.1 15.1 15.1 F-B14 F-19 F-12 F-40 F-12 F-40 F-B14...
  • Page 25 Step 16 F-24 16.1 F-24 16.3 16.2 F-B14 16.2 16.2 16.1 F-24 F-24 F-B06 F-B14 16.3 F-23 F-24 F-B07 F-24 F-24 F-B14...
  • Page 26 Step 17 F-35 F-35 F-35 F-35 F-36 F-35 F-35 F-24 F-36 F-35...
  • Page 27 Step 18 F-B05 F-28 F-B05 F-36 18.1 18.1 F-B05 F-24 F-B06 F-28 F-36 F-28 F-B05 F-28...
  • Page 28 Step 19 F-13 19.1 19.2 F-21 19.1 F-12 F-13 F-B14 F-13 19.2 19.2 F-13 F-21 F-13 F-21 F-B14...
  • Page 29 Step 20 F-25 20.1 F-26 F-37 F-26 20.3 20.2 F-27 F-20 20.1 20.2 F-25 20.3 F-26 F-27 F-B16 F-27 F-20 F-37 F-20 F-B16 F-B14...
  • Page 30 Step 21 F-B07 21.1 Attention: After the skylight is installed into the chute of the Peak Beam (FC07), it must slide in the correct position before closing the skylight, otherwise it may cause failure to close or even damage. 21.1 F-25 F-B07...
  • Page 31 Step 22 F-14b F-22b F-22b F-16b F-B15a F-16b 22.1 F-38 F-B16 F-15 F-B15a 22.2 F-39 F-15 F-38 F-B16 F-B15a F-22b 22.3 F-22b F-14b F-38 22.1 22.2 F-39 F-B16 F-16b F-B15a F-14b F-15 22.3 F-22b F-B15a F-B16 F-B15a F-B16...
  • Page 32 Step 23 23.1 F-B14 23.2 F-B14 23.3 23.1 23.2 F-22b F-22b F-13 F-03b 23.3 F-B14 F-B14...
  • Page 33 Step 24 G-P1 G-P2 24.1 F-B05 G-P2 G-P3L G-P1 G-P1 G-P1 24.5 24.2 24.1 24.3 24.4 24.1 G-P3R G-P1 24.2 24.3 G-P1 G-P3L F-13 F-B05 24.4 24.5 F-B07 F-13 G-P1 G-P3R G-P2 G-P3L G-P2 G-P3R F-B14...
  • Page 34 Step 25 Attention: Make sure the skylight is in the correct position before closing it. F-20...
  • Page 35 Step 26 Advice For additional strength, you can also use some glue or tapes between the polycarbonate panel and the aluminum frame to enhance the stability. Note Silicone sealant and glue gun are not included in our tool kit. You can buy them locally. Only use silicone sealant suitable for aluminum.
