OfficeSource PBTR60 Assembly Instructions

Thank you for purchasing Borders desk mounted partition system. Before you begin assembly, please check that

you have all the parts listed below for the appropriate kit purchased. If you do not, please contact the dealer that

sold you this product.

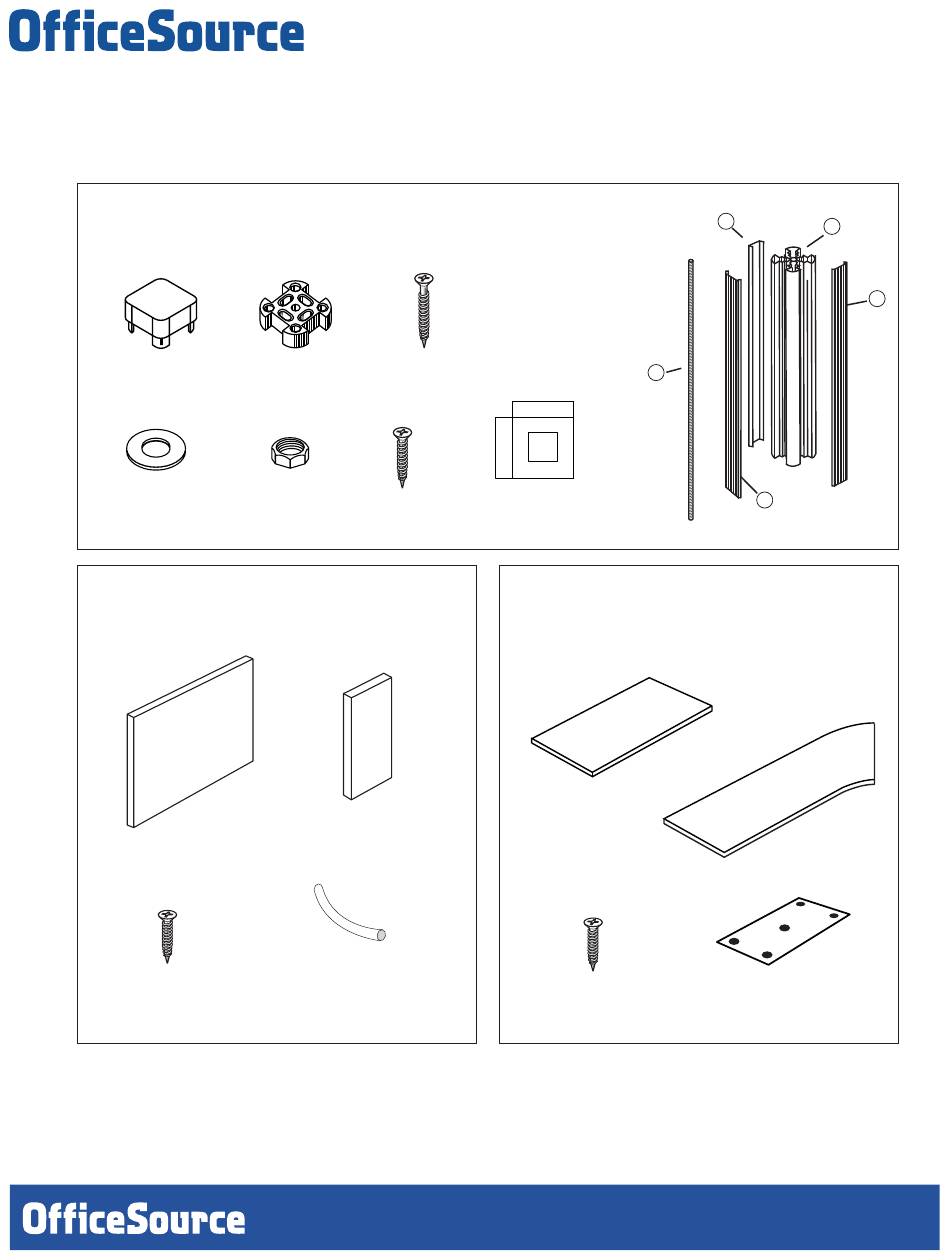

Top Cap x 1

Mounting Plate x 1 1 1/4" Screw x 4

Washer x 1

Locknut x 1

PAN EL PARTS KIT

Regular Panel x 1

3/4" Screw x 8

(with glazed panel kit only)

BORDERS

ASSEMBLY INSTRUCTIONS

Assembly Instructions

DIVI DER POST PARTS KIT

1" Screw x 4

Filler Panel x 1

Neoprene Strip x 2

PBTR60

a. Divider post x 1

b. Cover strip x 3

c. Threaded Rod x 1

Template x 1

TR AN SACTION TOP

PARTS KIT

(Not recommended for use on 24" posts)

Regular OR

Corner Panel x 1

3/4" Screw x 8

www.officesourcefurniture.com

Flat Bracket x 2

Table of Contents

Need help?

Do you have a question about the PBTR60 and is the answer not in the manual?

Page 1 BORDERS ® PBTR60 ASSEMBLY INSTRUCTIONS Assembly Instructions Thank you for purchasing Borders desk mounted partition system. Before you begin assembly, please check that you have all the parts listed below for the appropriate kit purchased. If you do not, please contact the dealer that sold you this product.
Page 2 ® PBTR60 ASSEMBLY INSTRUCTIONS STEP 1. ATTACH MOUNTING PLATE Fold sides of template downward and position template tight against work surface corner. Expose double sided tape and position mounting plate inside the template opening. Remove the template and install the short 1”...
Page 3 ® PBTR60 ASSEMBLY INSTRUCTIONS STEP 2. MOUNT DIVIDER POST Place divider post over mounting plate. Screw threaded rod through divider post and into mounting plate. Place washer then nut on rod and finger tighten only. STEP 3. SLIDE PANELS INTO PLACE Insert a 3/4”...
Page 4 ® PBTR60 ASSEMBLY INSTRUCTIONS STEP 5. STACKING ON PANELS Note: When using 2 stacked 12” panels, 24” high posts must be used. Attach first level of panels as described in Step 3. Insert 2nd level of panels between 24” high posts in same fashion.
