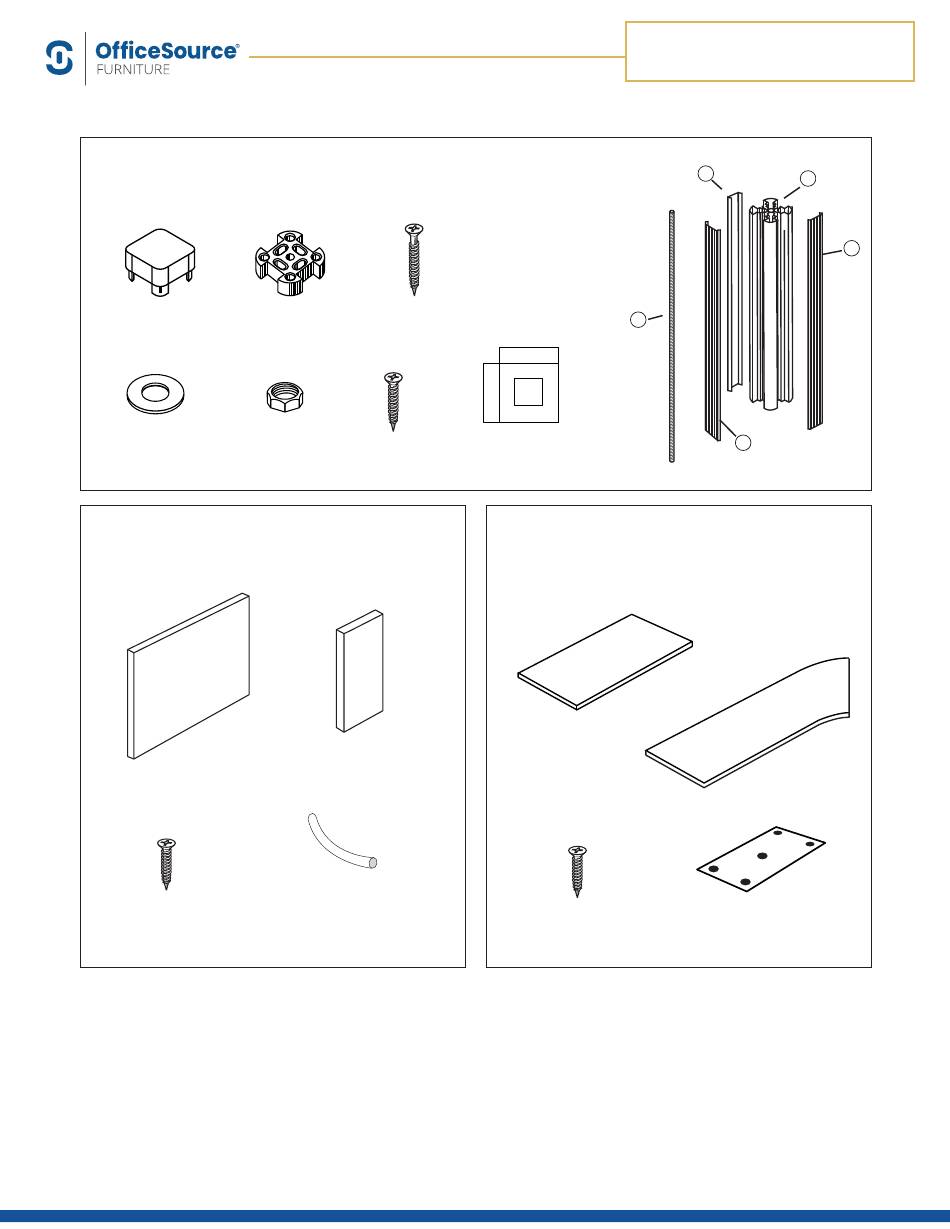

Thank you for purchasing Borders desk mounted partition system. Before you begin assembly, please check that
you have all the parts listed below for the appropriate kit purchased. If you do not, please contact the dealer that
sold you this product.
Top Cap x 1
Mounting Plate x 1 1 1/4" Screw x 4
Washer x 1
PAN EL PARTS KIT
Regular Panel x 1
3/4" Screw x 8
Last Updated: 3/2023
ASSEMBLY INSTRUCTIONS
Assembly Instructions
DIVI DER POST PARTS KIT
Locknut x 1
1" Screw x 4
Filler Panel x 1
Neoprene Strip x 2
(with glazed panel kit only)
®
PB21266
ASSEMBLY INSTRUCTIONS
a. Divider post x 1
b. Cover strip x 3
c. Threaded Rod x 1
c.
Template x 1
TR AN SACTION TOP
PARTS KIT
(Not recommended for use on 24" posts)
Regular OR
Corner Panel x 1
3/4" Screw x 8
www.officesourcefurniture.com
MODEL NO. PB21266
b.
a.
b.
b.
OR
Flat Bracket x 2
