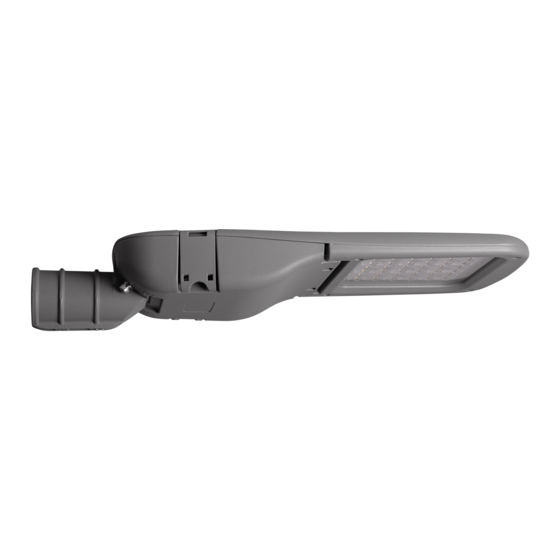

Versa L LED
Manual instrucciones
Instruction manual
Especificaciones/ Specifications
Aislamiento eléctrico/
Electrical isolation
Índice de estanqueidad/
Sealing rating
Protección contra impactos/
Impact resistance
Nº LED/
LED Number
Peso/
Weight
Altura Máx. de instalación/
Sealing rating
Máx. sup. proyectada al aire/
Maximum surface wind exposed
1/8
julio 2021
julio 2021
Ñ
CI
IP66
IK08
48 LED
6,5kg
20m
0,179m
2
E
640
