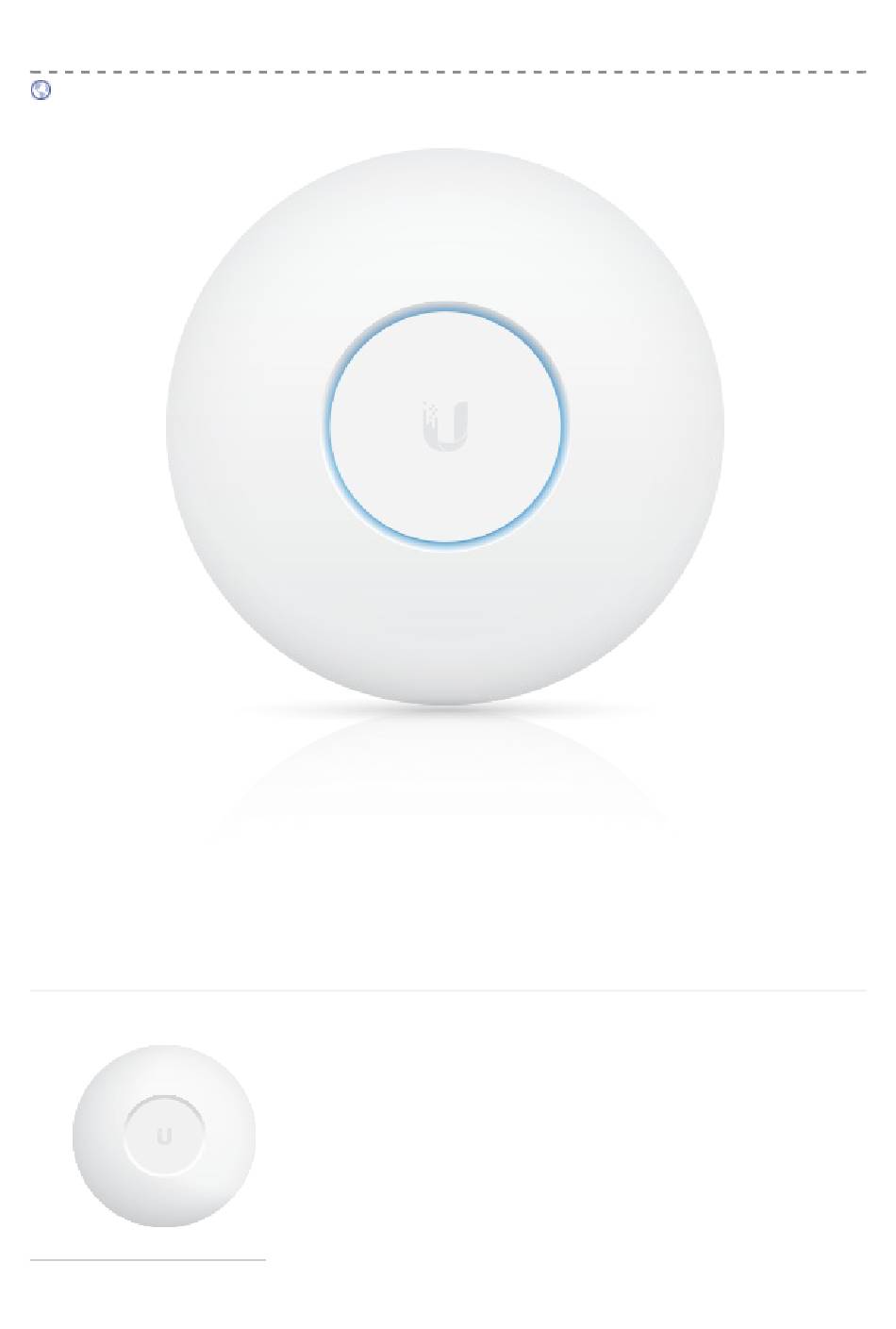

- Page 1 UAP-XG Quick Start Guide dl.ubnt.com/qsg/UAP-XG/UAP-XG_EN.html Package Contents UniFi AP XG 1/45...
- Page 2 Mounting Plate Ceiling Backing Plate Ceiling Screws (Qty. 4) Keps Nuts (Qty. 4) T-Bar Mounts (Qty. 2) 2/45...
-
Page 3: Installation Requirements
T-Bar Screws (Qty. 2) Allen Wrench Wall Screws (Qty. 4) Screw Anchors (Qty. 4) Cable Feed Plug Gigabit PoE (50V, 1.2A)* Power Cord* Installation Requirements Phillips screwdriver Drill and drill bit (8 mm for wall mounting or 3 mm for ceiling tile mounting) 3/45... -
Page 4: Outdoor Installation Requirements
Cat6A UTP cable for indoor installations Outdoor Installation Requirements IMPORTANT: The UAP-XG may be installed outdoors under an eave or other protected location. Do not install the UAP-XG in an open environment. Mounting location should be at least 60 cm (2 ft) from the edge of the eave or ceiling. - Page 5 Security Slot If you need to remove the UniFi AP from the Mounting Plate, insert a flat, thin object like a zip tie or large paper clip in the Security Slot to release the Lock Tab and turn the UniFi AP counterclockwise.
-
Page 6: Mounting Plate
LAN and DHCP server. For 10 Gbps operation, connect the UAP-XG to an 802.3bt PoE switch. Note: The UAP-XG can also be powered using a 50V, 1.2A Gigabit PoE adapter. For instructions on using the adapter, see Powering the UniFi AP. -
Page 7: Wall Mount
The UAP-XG can be mounted on a wall, ceiling tile, drop ceiling T-rail (up to 40 mm), or electrical junction box. Perform the steps for the appropriate installation. Note for UniFi AP replacement: The holes marked “A” on the Mounting Plate line up with the holes of mounting brackets used for previous UniFi AP models. - Page 8 8/45...
- Page 9 Optional 9/45...
- Page 10 10/45...
- Page 11 11/45...
- Page 12 12/45...
- Page 13 13/45...
- Page 14 14/45...
- Page 15 15/45...
- Page 16 Optional 16/45...
- Page 17 17/45...
-
Page 18: Ceiling Mount
Ceiling Mount 18/45... - Page 19 19/45...
- Page 20 20/45...
- Page 21 21/45...
- Page 22 22/45...
- Page 23 23/45...
- Page 24 24/45...
- Page 25 25/45...
- Page 26 26/45...
- Page 27 T-Bar Mount 27/45...
- Page 28 28/45...
- Page 29 29/45...
- Page 30 30/45...
- Page 31 31/45...
- Page 32 32/45...
- Page 33 33/45...
- Page 34 34/45...
- Page 35 35/45...
- Page 36 Junction or Outlet Box Mount 1. Use the legend printed on the Mounting Plate to select the appropriate mounting holes for your installation. 36/45...
- Page 37 2. Pull the Ethernet cable through the Mounting Plate, and attach the Mounting Plate to the junction or outlet box using at least two screws (not included). Note: For in-wall applications, position the Mounting Plate with the Arrow pointing upwards. 37/45...
- Page 38 38/45...
- Page 39 39/45...
- Page 40 40/45...
- Page 41 41/45...
- Page 42 IMPORTANT: Using the 10 GbE port requires enabling flow control on the upstream switch port’s configuration for maximum performance. Connecting to an 802.3bt PoE Switch Connect the Ethernet cable from the UAP-XG directly to a PoE port on the switch. 42/45...
-
Page 43: Specifications
Specifications 43/45... - Page 44 UAP-XG 228 x 228 x 50 mm Dimensions (8.98 x 8.98 x 1.97") Weight 1300 g (2.87 lb) without Mount (1) 10/100/1000 RJ45 Ethernet Port Networking Interface (1) 1/10 Gbps ICM Ethernet Port Buttons Reset Power Method PoE 802.3bt Power Supply 50VDC, 1.2A Gigabit PoE Adapter...
-
Page 45: Declaration Of Conformity
UAP-XG Radio Rates 800 Mbps 1.7 Gbps 2.4 GHz 5 GHz Antenna Integrated Internal Antenna Antenna Gain 6 dBi 8 dBi 2.4 GHz 5 GHz Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2 WEP, WPA-PSK, Wireless Security WPA-Enterprise (WPA/WPA2, TKIP/AES) Wall/Ceiling/Junction Box (Kits Mounting...
