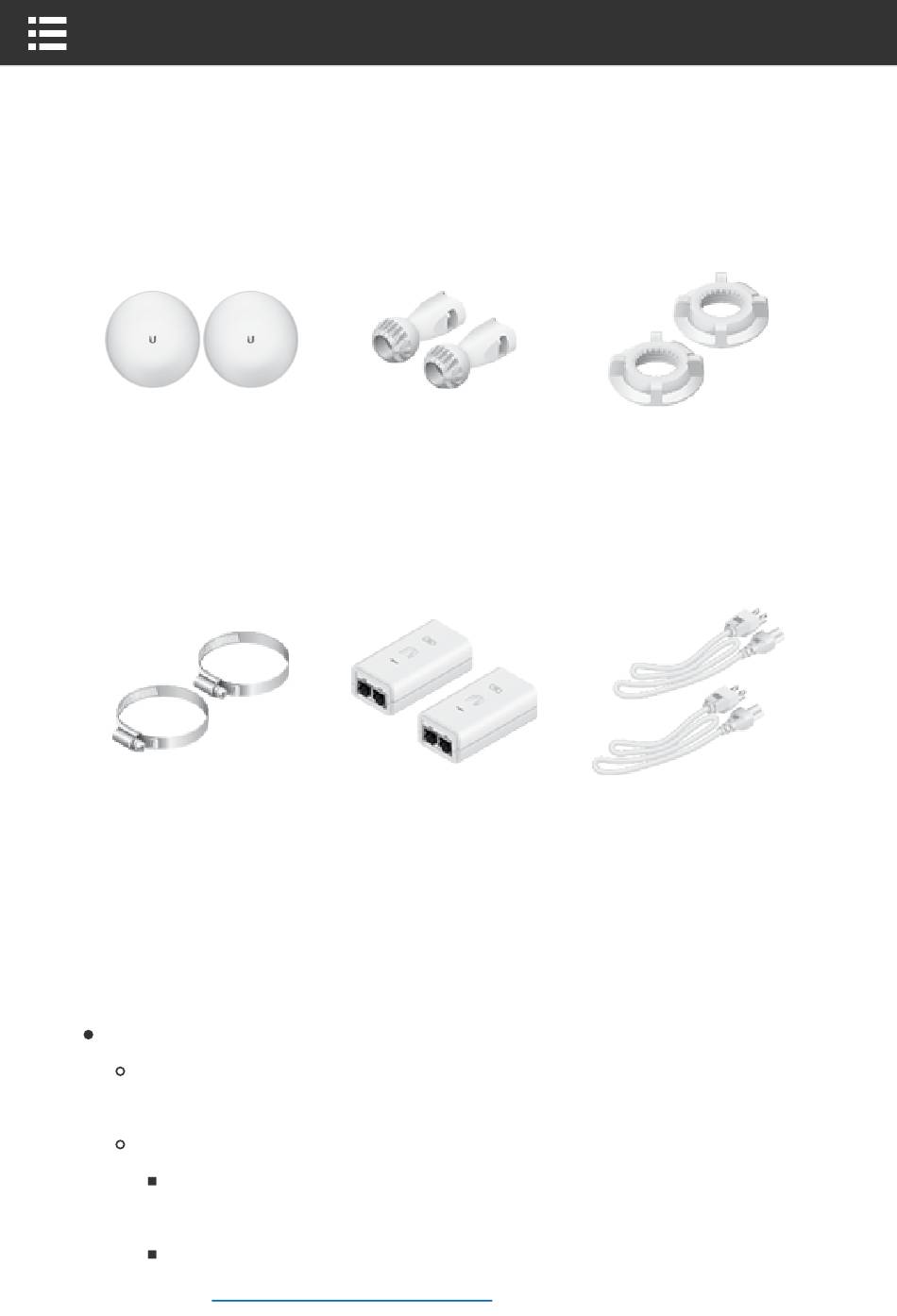

Package Contents
UBB (Qty. 2)
Metal Strap (Qty. 2)
System Requirements
One of the following:
UniFi Cloud Key (1.0.5 or newer) or UniFi Dream Machine
(1.0.1 or newer)
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or newer
recommended)
UniFi Controller software v5.12.x (or newer), available
at:
ui.com/download/unifi
UBB Quick Start Guide
Ball Joint Mount (Qty.
2)
Gigabit PoE (48V,
0.32A) with Mounting
Bracket (Qty. 2)
Lock Ring (Qty. 2)
Power Cord (Qty. 2)
Advertisement
Table of Contents
Related Manuals for UniFi UBB
Summary of Contents for UniFi UBB
- Page 1 0.32A) with Mounting Bracket (Qty. 2) System Requirements One of the following: UniFi Cloud Key (1.0.5 or newer) or UniFi Dream Machine (1.0.1 or newer) Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.6 (1.8 or newer recommended) UniFi Controller software v5.12.x (or newer), available...
-
Page 2: Installation Requirements
UniFi Network App (iOS or Android™) or Web Browser (Google Chrome preferred) Installation Requirements Pole-mounting: 8 mm socket wrench or screwdriver Wall-mounting: wall fastener (not included) The device needs to have clear line of sight to the sky for proper GPS operation. -
Page 3: Hardware Overview
Hardware Overview System LED Flashing White Initializing. Factory defaults, waiting for White integration. Device is busy; do not touch or Alternating unplug it. This usually indicates that a White/Blue process such as a firmware upgrade is taking place. Successfully integrated into a network Blue and working properly. - Page 4 The 60 GHz link cannot be established or has dropped due to bad weather. If the UBB fails over to 5 GHz, the LED will remain red. When the 60 GHz link is re-established, the LED will turn blue or the custom color...
- Page 5 Remote UBB radio (bridged LAN) This Gigabit Ethernet port is used to connect the power and should be connected to the LAN. It will receive its IP address from the DHCP server via the wireless link to the local UBB radio.
-
Page 7: Hardware Installation
Hardware Installation For each UBB radio, go to the appropriate mounting “Wall Mounting”. instructions: Pole Mounting or Pole-Mounting... -
Page 8: Wall Mounting
Wall Mounting The device must be mounted directly to a wood stud or other structurally stable surface to avoid damage to the mounting hole when you adjust the aim. Optional Accessory To enhance stability, you can use the NanoBeam® Wall Mount Kit, model NBE-WMK (sold separately). -
Page 9: Installation Instructions
Note: Center screw included. Two optional screws (not included) provide additional stability. Installation Instructions... - Page 10 Fastener (not included) NanoBeam Wall Mount Kit...
- Page 11 Aiming Visually aim the UBB radios at each other:...
-
Page 12: Connecting Power
Connecting Power For each UBB radio:... - Page 13 WARNING: The switch port must comply with the power specifications listed in the Specifications section of this Quick Start Guide.
- Page 14 Optional Adopting the UBB The UBB radios are pre-paired. For each UBB radio, you have the following options: “Using the UniFi Network App” “Using the UniFi Network Software” Note: If a link is lost due to configuration changes, you can reset both UBB radios to re-establish the link.
- Page 15 Using the UniFi Network App...
- Page 16 5. The System LED will turn blue to confirm that it has been successfully adopted. Using the UniFi Network Software 1. From the UniFi Network Controller dashboard, click Devices in the left menu bar.
-
Page 17: Specifications
2. On the Devices screen, locate the UBB in the list of devices under the Model column. To adopt the UBB, click Adopt. 3. The System LED will turn blue to confirm that it has been successfully adopted. Specifications Dimensions 140 x 140 x 90 mm (5.51 x 5.51 x... - Page 18 Bluetooth for Management Enclosure UV-Resistant Polycarbonate Power Method 802.3af Supported Passive Power over Ethernet (48V) Power Supply UniFi PoE Switch 48V, 0.32A Gigabit PoE Adapter (Included) Max. Power Consumption Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph)
-
Page 19: Safety Notices
Worldwide 2400 - 2483.5 Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. - Page 20 safety outlet. a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire. b. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.
-
Page 21: Limited Warranty
e. Protective bonding must be installed in accordance with local national wiring rules and regulations. Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes... -
Page 22: Important Note
This radio transmitter has been approved by FCC. ISED Canada CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 23: Avis Important
with any other antenna or transmitter. AVIS IMPORTANT Déclaration sur l’exposition aux rayonnements Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans un environnement non contrôlé. Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y ait une distance minimale de 20 cm entre l’élément rayonnant et vous. -
Page 24: Weee Compliance Statement
Note: This device meets Max. TX power limit per ETSI regulations. Note: Fixed service or any restrictions for authorization of use shall follow local country regulations. The following apply to products that operate in the 5 GHz frequency range: Note: This device is restricted to indoor use only when operating in the 5150 - 5350 MHz frequency range within all member states. - Page 25 a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
- Page 26 Radiation Exposure Statement This equipment complies with radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
-
Page 27: Online Resources
Country List AT BE BG CY CZ DE DK EE EL ES FI FR HR IE IT LV LT LU MT NL PL PT RO BFWA (Broadband Fixed Wireless Access) members noted in blue Note: This device meets Max. TX power limit per ETSI regulations. - Page 28 Online Resources © 20202020 Ubiquiti Inc. All rights reserved.
