AVL DITEST COUNTER User Manual page 18

Commissioning
Exhaust Gas Probe, Hose
1
3
v

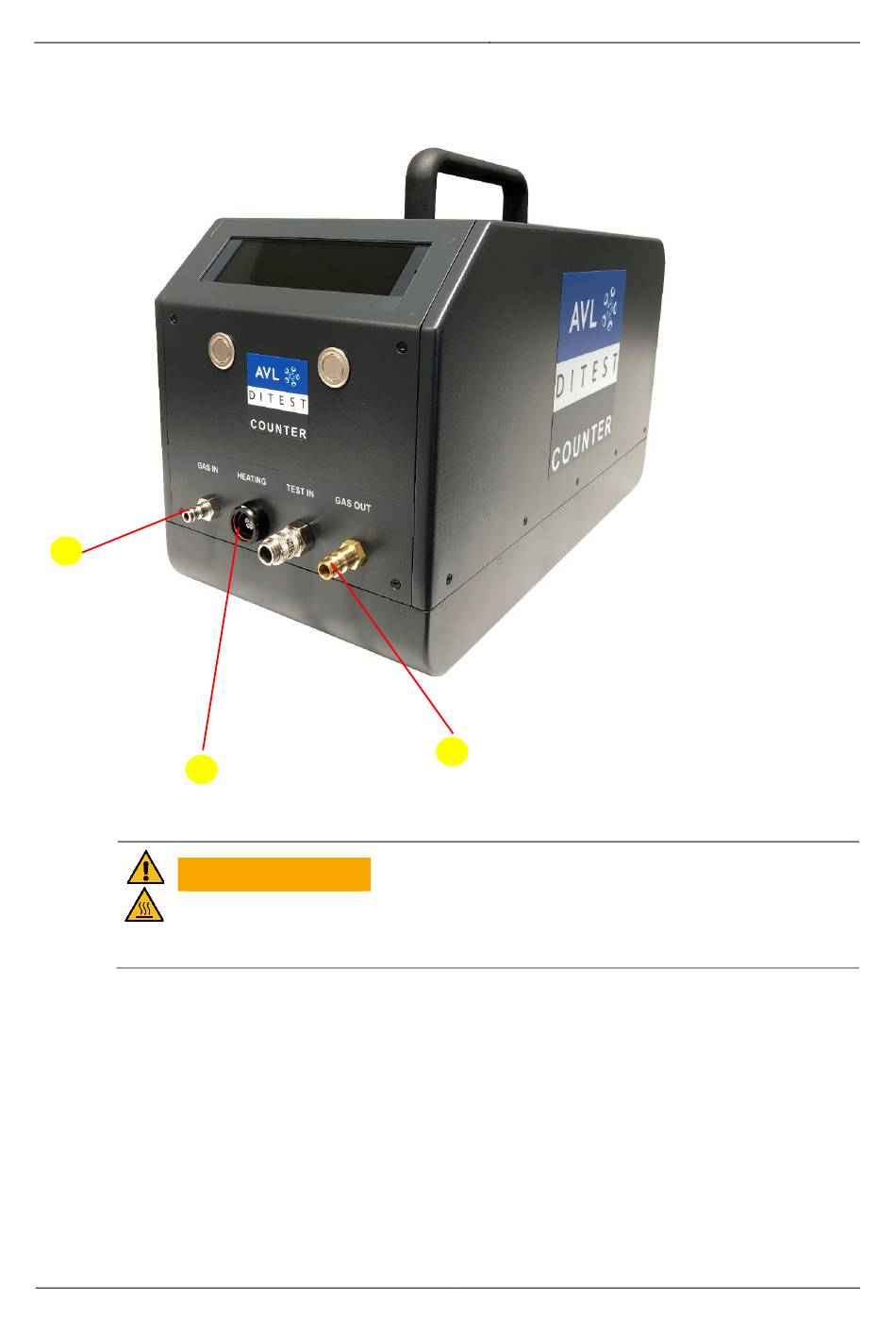

Fig. 6: Connecting the AVL DiTEST Counter on the front side
v
Risk of burns from hot parts
The heating hose connection heats up to over 55 °C. Wear safety gloves when handling the
hose.
1. Connect the heating hose to the "GAS IN" connection (1).
2. Connect the heating cable to the "HEATING" connection (3).
3. Connect the exhaust gas probe with the connecting hose to the "GAS IN"
connection (1).
4. Make sure that the exhaust gas can flow out unhindered at "GAS OUT" (2).
