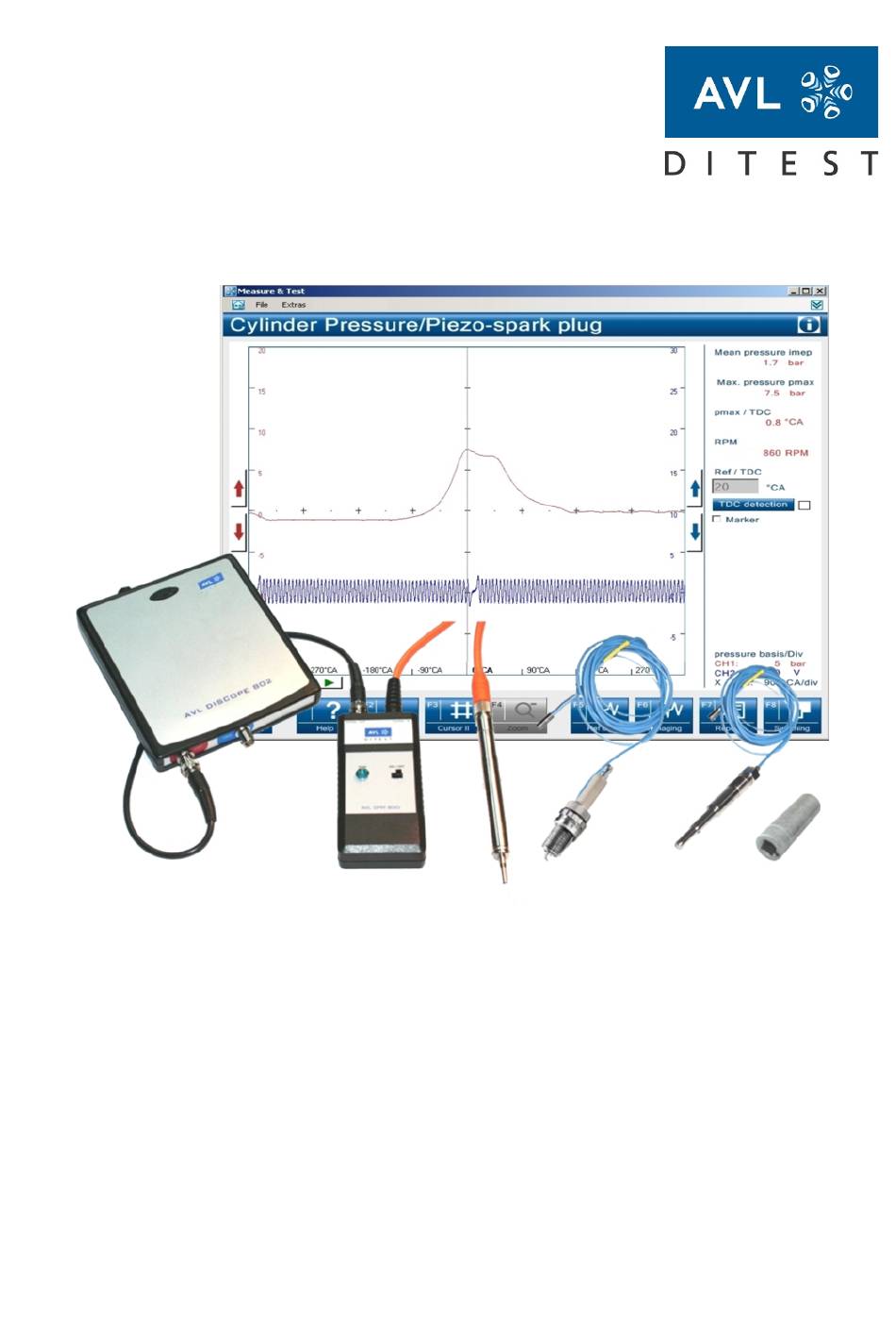

USER MANUAL
AVL DITEST DPM 800
ID number:
AT7639E
Revision:
02
Issued:
03 / 2018
Data subject to alteration. All
data valid at time of printing.
FUTURE SOLUTIONS FOR TODAY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPM 800 and is the answer not in the manual?

Questions and answers

Related Manuals for AVL DITEST DPM 800

Summary of Contents for AVL DITEST DPM 800

  • Page 1 USER MANUAL AVL DITEST DPM 800 ID number: AT7639E Revision: Issued: 03 / 2018 Data subject to alteration. All data valid at time of printing. FUTURE SOLUTIONS FOR TODAY...
  • Page 2 The contents of this publication, as a whole or in part, may not be reproduced in any form or passed on to third parties without the prior written consent of AVL DiTEST. This publication was written exercising reasonable care. AVL DiTEST can therefore not accept...

  • Page 3: Warnings And Safety Information

    AVL DiTEST DPM 800 Warnings and safety information Warnings and safety information This equipment manual contains important warnings and safety information which must be observed by the user. The product is only intended for a very specific application described in the equipment manual.
  • Page 4 Warnings and safety information AVL DiTEST DPM 800 User manual...

  • Page 5: Summarized Safety Instructions

    AVL DiTEST DPM 800 Summarized of safety information Summarized safety instructions DANGER Risk of fatal injury from electric current on vehicles with high-voltage systems. Dangerous high voltages capable of delivering fatal electric shocks are present on the HV energy store (HV battery) and the components connected to it.
  • Page 6 Summarized of safety information AVL DiTEST DPM 800 WARNING Risk of injury due to rotating parts Perform any work in the engine compartment while engine and ignition are turned off! Do not touch any rotating parts, such as, assemblies of electric generator, radiator fan and their drives (e.g.

  • Page 7: Safety Information

    (Due to the special construction of the piezo-electric pressure-sensing sparkplug, the insulation can break down if the electrode gap is too large.) AVL DiTEST DPM800 Piezo-electric glow plug pressure sensor adaptor NOTICE Choice of piezo-electric glow plug pressure sensor adaptor: Using the wrong piezo-electric glow plug pressure-sensor adaptor can lead to electrical and mechanical damage extending even to major engine damage.
  • Page 8 Safety information AVL DiTEST DPM 800 User manual...

  • Page 9: Table Of Contents

    Installing the AVL DiX 2.0 software ................2-1 Updating AVL DiX 1.0 to AVL DiX 2.0 ................2-2 Activating the AVL DiTEST DPM 800 with the AVL DiScope 802 present ....2-3 Measuring ..................3-1 Taking a reading ......................3-1 3.1.1...
  • Page 10 Contents AVL DiTEST DPM 800 VIII User manual...

  • Page 11: General Introduction

    Please note that Version 2.0 of AVL DiX is required to operate the AVL DiTEST DPM 800. For general guidance on using the AVL DiScope 802, please refer to the AVL DiScope 802 device manual.

  • Page 12: Safety Instructions

    General introduction AVL DiTEST DPM 800 Safety instructions This documentation contains important warnings and safety instructions which have to be observed by the user. Only through compliance with these requirements and safety measures it is possible to ensure correct and safe operation.

  • Page 13: Operation Of Pc Programs

    AVL DiTEST DPM 800 General introduction Standard text formats: bold Important text/text passages, parameter italic On screen dialogs and messages CAPITAL LETTERS Device designation and operating conditions MenuMenu item Selection of menu command through tapping on buttons List formats: Step-by-step instructions in a specified sequence •...
  • Page 14 General introduction AVL DiTEST DPM 800 User manual...

  • Page 15: Initial Use

    AVL DiTEST DPM 800 Initial use Initial use Installing the software Information To install the software you must have administrator permissions. You must have Version 2.0 of AVL DiX installed on your AVL DiX station. If necessary, update AVL DiX to Version 2.0.

  • Page 16: Updating Avl Dix 1.0 To Avl Dix 2.0

    Initial use AVL DiTEST DPM 800 Updating AVL DiX 1.0 to AVL DiX 2.0 All connected modules must be switched off (set AVL DiLink 480 master switch on rear panel to "0") as the current drivers are not available at the point of installation.

  • Page 17: Activating The Avl Ditest Dpm 800 With The Avl Discope 802 Present

    Shows the contents of the dongle shows the contents of the dongle, which should include the following entries: LIC SCOPE [XA7003] LIC DIX SCOPE DPM [XA7038] 11. Finish activation of the AVL DiTEST DPM 800 by clicking Next. User manual...
  • Page 18 Initial use AVL DiTEST DPM 800 User manual...

  • Page 19: Measuring

    AVL DiTEST DPM 800 Measuring Measuring Taking a reading Switch off the vehicle's engine. Unscrew the sparkplug (glow plug). Carefully feed the lead for the piezo-electric pressure-sensing sparkplug (glow plug pressure sensor adaptor) through the adaptor socket (A). In the adaptor socket there is a slot (B) through which the lead can pass through the socket without being damaged.
  • Page 20 Take care not to cross the thread when screwing on the lead. Fig. 3-2 Screw the lead from the AVL DiTEST DPM 800 power supply unit SIGNAL OUT connection (E) to the AVL DiTEST DPM 800 amplifier (D), see Fig. 3-3.
  • Page 21 Measuring Connect the CH1 connection on the AVL DiScope 802 to the SIGNAL OUT socket on the AVL DiTEST DPM 800 power supply unit using the connecting lead (F), see Fig. 3-4. Fig. 3-4 Connect the on-board engine speed/TDC sensor to connection CH2 (I) on the AVL DiScope 802.
  • Page 22 Measuring AVL DiTEST DPM 800 Start AVL DiX as described in the AVL DiScope 802 device manual. Select the mode Diagnostic I Measure & test I Enginetest I Petrol (if testing cylinder pressure with the piezo-electric pressure-sensing sparkplug) Diesel (if testing cylinder pressure with the piezo-electric glow plug pressure sensor adaptor), see Fig.
  • Page 23 AVL DiTEST DPM 800 Measuring Enter the TDC offset, if known, and select the number of strokes per engine cycle, see Fig. 3-7. Information Only by entering the correct TDC offset can meaningful readings be obtained. You can find out the TDC offset.
  • Page 24 Measuring AVL DiTEST DPM 800 Click Next. The results of the test are shown. Fig. 3-8 As well as the internal cylinder pressure (red trace, channel 1) and the on-board engine speed/TDC signal (blue trace, channel 2), the following relative readings are shown in the area (A): Mean pressure, imep: This is the indicated mean pressure, i.e.

  • Page 25: Setting The Pressure Sensor Sensitivity

    AVL DiTEST DPM 800 Measuring 3.1.1 Setting the pressure sensor sensitivity To obtain optimum representation of the measured data, you have to set the sensitivity of the piezo-electric pressure-sensing sparkplug (glow plug pressure sensor adaptor). The figures are printed on the top of the...

  • Page 26: Determining Tdc

    Measuring AVL DiTEST DPM 800 3.1.2 Determining TDC Information Only by entering the correct TDC offset can meaningful readings be obtained. See also Fig. 3-7. Starting from the results screen (display mode), see Fig. 3-8, proceed as follows: Put the engine into non-firing overrunning mode.
  • Page 27 AVL DiTEST DPM 800 Measuring Using the button, scroll forwards to when the cylinder was overrunning. You can identify when the cylinder was overrunning by: - a low maximum pressure - a raised engine speed (>2000 rpm) - a distinctly evident negative pressure following gas expansion after TDC see Fig.
  • Page 28 Measuring AVL DiTEST DPM 800 By selecting the option box you can display cursors marking the maximum pressure and the detected reference marker position of the on-board engine speed/TDC sensor signal. Fig. 3-13 3-10 User manual...

  • Page 29: Signal Representation

    AVL DiTEST DPM 800 Measuring 3.1.3 Signal representation The basic signal setting is chosen so that analysable signals are displayed at idling speed. At higher speeds and loads, the pressure conditions change and the signals behave accordingly. In order to obtain optimum signal representation for your particular application, proceed as follows: On the results graph screen (display mode), Fig.

  • Page 30: Tips On Testing

    Secure the leads and the AVL DiTEST DPM 800 amplifier in the car. AVL DiTEST DPM 800 Connection Box The AVL DiTEST DPM 800 Connection Box is equipped with a 9V PP3 battery. Switch off the AVL DiTEST DPM 800 Connection Box after completing the test.

  • Page 31: Care And Maintenance

    Cleaning Before cleaning the AVL DiTEST DPM 800, disconnect all leads and switch off the AVL DiTEST DPM 800 amplifier. Only clean the AVL DiTEST DPM 800 with a dry cloth.
  • Page 32 Care and maintenance AVL DiTEST DPM 800 Carefully slide the battery cover (N) on the back of the AVL DiTEST DPM 800 Connection Box downwards. Fig. 4-2 Take out the battery (O) and disconnect the terminals (P). Connect a new battery and insert it in the AVL DiTEST DPM 800 power supply unit.

  • Page 33: Product Specifications

    Consisting of: Connection Box not including 9V PP3 battery BO7725 Battery, 9V, PP3 E HI0001 AVL DiTEST DPM 800 amplifier GG1407 Adaptor socket to fit piezo-electric pressure-sensing sparkplug or E.g. GG7405 or glow plug pressure sensor adaptor ordered WG0140 or WG0200 …...
  • Page 34 Product specifications AVL DiTEST DPM 800 User manual...

  • Page 35: Warranty

    For the execution the date of the shipping note to the final customer does apply. Event of damage or loss In the event of damage or loss, please contact the respective AVL DiTEST office / the respective AVL DiTEST partner in your country.
  • Page 36 Warranty AVL DiTEST DPM 800 User manual...

  • Page 37: Technical Data

    AVL DiTEST DPM 800 Technical data Technical data Piezo-electric pressure-sensing sparkplug Piezo-electric pressure-sensing Sparkplug with integral pressure sensor manufactured to sparkplug: customer specifications (Order form – AT7657D/E) Piezo-electric glow plug pressure sensor adaptor Piezo-electric glow plug pressure Glow plug adaptor with integral pressure sensor...
  • Page 38 - AVL DiScope 802, CH1 or CH2 CE mark: CE mark: The manufacturer hereby declares that the AVL DiTEST DPM 800 complies with the provisions of the EC Directives cited below including all relevant amendments: - EN 61010-1 (Safety Requirements) - EN 61326-1 (EMC)
