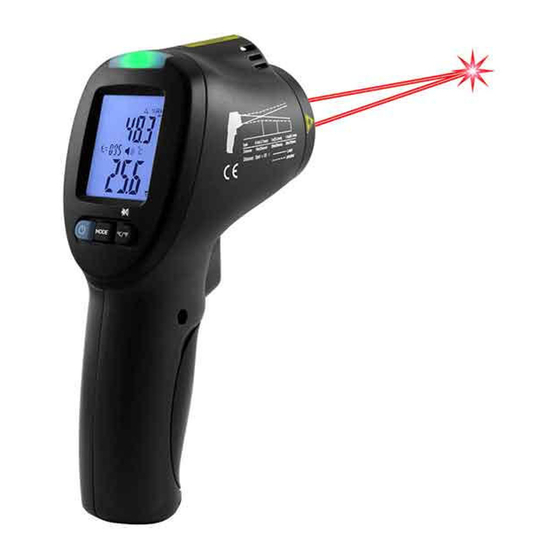

- Page 1 IR Thermometer with Dewpoint 800111 Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ............3 FEATURES ..............4 MATERIALS SUPPLIED ..........4 CARE AND MAINTENANCE ........4 FRONT PANEL DESCRIPTION .........5 LCD DISPLAY .............6 SET UP ................7 MEASUREMENT PROCEDURES ......8 SPECIFICATIONS ............11 WARRANTY ..............12... -
Page 3: Introduction
INTRODUCTION The Sper Scientific IR Thermometer with Dewpoint (800111) allows residential and commercial consumers to quickly detect areas prone to mildew growth with a simple scanning motion. Aim the thermometer at questionable areas and view the large multi-line backlit LCD display. The automatic color-coded light alerts the user of areas prone to mold and mildew growth. -
Page 4: Features
Wipe the thermometer with a nonabrasive cloth. Do not use solvents on the thermometer. Never store the thermometer in a wet case. Repairs or services not covered in this manual should be performed by qualified personnel only. Please contact Sper Scientific to speak with a technician. -
Page 5: Front Panel Description
FRONT PANEL DESCRIPTION 1. POWER 2. MODE 3. TEMPERATURE UNIT °C/°F 4. TRI-COLORED ALERT LIGHT 5. TRIGGER/HOLD... -
Page 6: Lcd Display
LCD DISPLAY 1. Current Emissivity 2. Audible Alarm Activated 3. Hold Function Activated 4. Dewpoint 5. Air Temperature 6. IR Laser Guide Activated 7. Low Battery Indicator 8. Relative Humidity 9. °F or °C units 10. D-value Bar graph 11. Surface Temperature (IR) Reading... -
Page 7: Setup
SETUP Battery Installation This thermometer uses one 9V battery. To install the battery before first use: 1. Flip open the battery cover, located on the hand grip, using one of the two finger tabs. 2. Carefully install a 9V battery into the snap closure, ensuring correct polarity. -
Page 8: Measurement Procedures
Setting the Audible Alarm 1. Press and hold °C/°F to turn the audible alarm on/off. 2. The icon will appear on the screen to indicate that the audible alarm is underway. Note: The audible alarm sounds in a pulse format during the amber warning and continuously during the red warning. - Page 9 5. To hold value of interest on the LCD, press the trigger. This will allow you to move away from the object while the screen will still contain the data. *Note: while HOLD is underway, the audible alarm will stop. The red indicator will remain lit according to its moisture level.
- Page 10 Light Alarm type D-Value* Moisture Color Possibilities Green None Surface temp. is Presence of greater than 1/3 moisture is not of the difference likely between the air temperature and the dew point. Orange Repeating Surface temp. is Conditions alert between 1/3 and are favorable to 2/3 of the moisture collecting...
-
Page 11: Specifications
SPECIFICATIONS Range Resolution Accuracy Ambient Air -22 to 212°F ±4°F (2°C) from Temperature (-30 to 100°C) 32 to 482°F (0 to 250°C) ±6°F (3.5°C) below freezing Infrared -58 to 482°F ±2% of reading or Thermometer (-50 to 250°C) ±2ºC whichever is Temperature greater Relative... -
Page 12: Warranty
WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of five (5) years from the date of purchase, and agrees to repair or replace any defective unit without charge. If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available.
