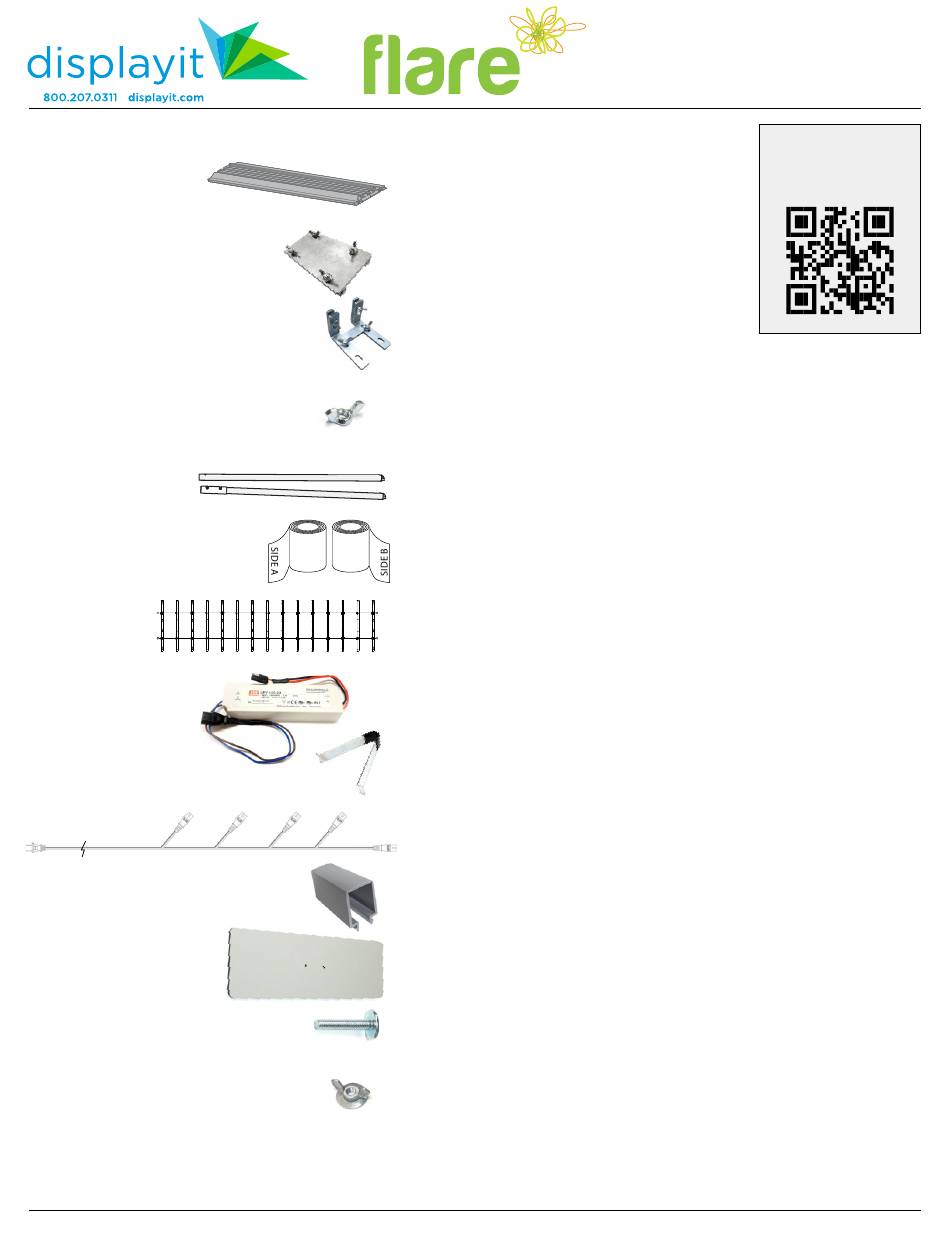

Parts List
14 - Frame perimeter pieces
(See Diagram 1 for details)
10 - Flat Connecting Brackets with Wing Nuts
4 - Corner Brackets with Wing Nuts
4 - Extra Wing Nuts
(1/4-20 Thread Size)
3 - Vertical Support Sets
(1 Set includes two poles and a plastic lock tube)
2 - Flare Spacing Rulers (Side A and Side B)
8 - Double-Sided Curtain Lights
8 - Power Supplies with Velcro (100 Watts)
36 - Light Mount Clips*
2 - 10 Foot Power Cords with 5 Quick-Connects
6 - Wire Management Clips
5 - Flare Feet
12 - T-Bolts for Flare Feet*
12 - Washer Wing Nuts for Flare Feet*
(1/4-20 Thread Size)
After-Hours Emergency: Call or Text 678.723.5343
20' (230" x 92") Flare
Assembly Instructions Page 1
* Includes extras provided
Need Help?
Scan the QR code or go to
displayit.com/flare-guide
to watch an assembly video.
Flare v3.2 Updated 9/4/2019
Advertisement
Table of Contents
Related Manuals for displayit Flare
Summary of Contents for displayit Flare
- Page 1 (1/4-20 Thread Size) 3 - Vertical Support Sets (1 Set includes two poles and a plastic lock tube) 2 - Flare Spacing Rulers (Side A and Side B) 8 - Double-Sided Curtain Lights 8 - Power Supplies with Velcro (100 Watts)
- Page 2 20’ (230” x 92”) Flare Assembly Instructions Page 2 1. Upack the frame. Save all foam pieces for repacking later. Lay out the frame pieces as seen in Diagram 1. Frame perimeter pieces are labeled with stickers matching Diagram 1 to make this step easier.
- Page 3 20’ (230” x 92”) Flare Assembly Instructions Page 3 Press Lock Tube Slide Lock Tube 5. Unroll the included spacing rulers and 6. Install each suport pole as noted on the ruler (Diagram 2). place them on the ground inside the A.
- Page 4 20’ (230” x 92”) Flare Assembly Instructions Page 4 Center Channel 7. Attach the bottom of the curtain light to the center 8. Attach the power supplies to the frame via the velcro channel of the frame using light clips (Diagram 3).
- Page 5 20’ (230” x 92”) Flare Assembly Instructions Page 5 Graphic Installation Caution! Installing silicone-edged graphics is techniqe sensitive; Practice will shorten installation time. Handle graphics with care with clean hands in a clean environment. Cloth or latex gloves recommended. Keep graphics away from sharp objects.
- Page 6 20’ (230” x 92”) Flare Assembly Instructions Page 6 Packing Instructions Failure to follow packing instructions may result in damaged items. Box #3 - Round Support Poles Box #4 - Power Supplies, Feet, wires, & Small Hardware Box #1 - 4 Curtain Lights...
