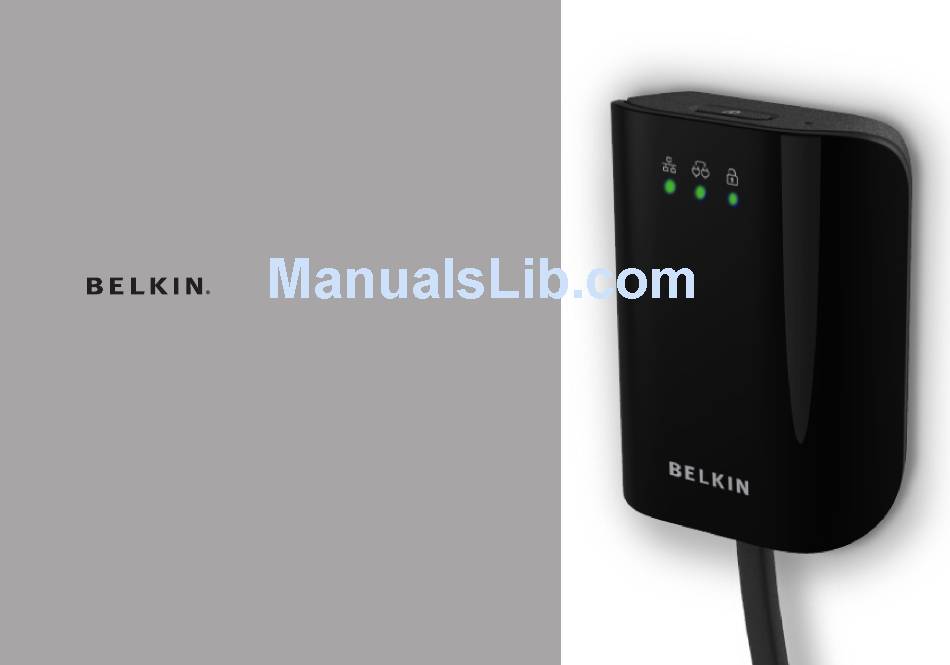

- Page 1 Powerline AV Networking Adapter User Manual PM01146ea-A F5D4074v2...
- Page 2 TAble of CoNTeNTs sections table of contents 1 Introduction ......... . . 1 Features .
- Page 3 . These Adapters also use xtendnet technology to ensure the most robust powerline network in the market . Each additional Belkin Powerline AV or Gigabit Powerline Adapter that is plugged in is capable of repeating the data signal for maximum coverage of your home .
- Page 4 INTrodUCTIoN sections table of contents features • Up to 200Mbps* bandwidth over standard home power lines • HomePlug signal easily passes through circuit breaker • 128-bit AES encryption ensures data security • Encryption completed by hardware, without sacrifice to bandwidth •...
-
Page 5: Product Specifications
INTrodUCTIoN sections table of contents Product specifications Computer Interface: IEEE 802 .3/802 .3u Operating Temperature: 32–104 degrees F (0–40 degrees C) Storage Temperature: -4–176 degrees F (-20–80 degrees C) Humidity: Max . 5%–90% (non-condensing) *The standard transmission rate—200Mbps—is the physical data rate . Actual data throughput will be lower . -
Page 6: System Requirements
INTrodUCTIoN sections table of contents Power led Solid Green Power on Power off Blinking Green Encryption setting up Solid Green Encryption setup successful Double Flash Fail in encryption Powerline link led Powerline data transmitting Blinking or receiving Link rate excellent: greater Color Green than 80Mbps Color Amber... -
Page 7: Hardware Setup
INsTAllINg ANd seTTINg UP The AdAPTers sections table of contents overview Installation of the Powerline AV Networking Adapter takes only seconds and does not require setting up long wires throughout the house . Simply plug the units directly into any available wall outlet and connect to any device with an Ethernet port . -
Page 8: Changing The Network Password
CoNfIgUrATIoN sections table of contents overview The Adapter uses 128-bit AES encryption to block access from the outside . By default, the protection is enabled . However, it is recommended that you change the default network password with the “Encryption” button located on the units . Powerline AV Networking Adapter Changing the Network Password With both Adapters plugged into the wall, press the “Encryption”... -
Page 9: Resetting To Factory Defaults
CoNfIgUrATIoN sections table of contents Adding Another Adapter to the Network If the default network password has been changed, a new Adapter will have to load the new password before it can join the network . Press the “Encryption” button on an encrypted unit for more than 1 second, but less than three seconds . - Page 10 Tech support* *National call rates may apply You can find additional support information on our website www .belkin . com through the tech-support area . If you want to contact technical support by phone, please call the number you need from this list* .
- Page 11 Modifications The FCC requires the user to be notified that any changes or modifications to this device that are not expressly approved by Belkin International, Inc ., may void the user’s authority to operate the equipment . europe – eU declaration of Conformity This device complies with the essential requirements of the R&TTE...
- Page 12 International, Inc., limited lifetime Product Warranty What this warranty covers. Belkin International, Inc . (“Belkin”) warrants to the original purchaser of this Belkin product that the product shall be free of defects in design, assembly, material, or workmanship . What the period of coverage is.
- Page 13 Belkin reserves the right to review the damaged Belkin product . All costs of shipping the Belkin product to Belkin for inspection shall be borne solely by the purchaser . If Belkin determines, in its sole discretion, that it is impractical to ship the damaged equipment to Belkin, Belkin may designate, in its sole discretion, an equipment repair facility to inspect and estimate the cost to repair such equipment .
- Page 14 Spain Italy © 2009 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Apple, AirPort, Mac, Mac OS, and AppleTalk are trademarks of Apple Inc., registered in the U.S. and other countries. Windows, Windows Vista, NT, and Microsoft are either...
