20
Appendix A: The Optional Wall Mount

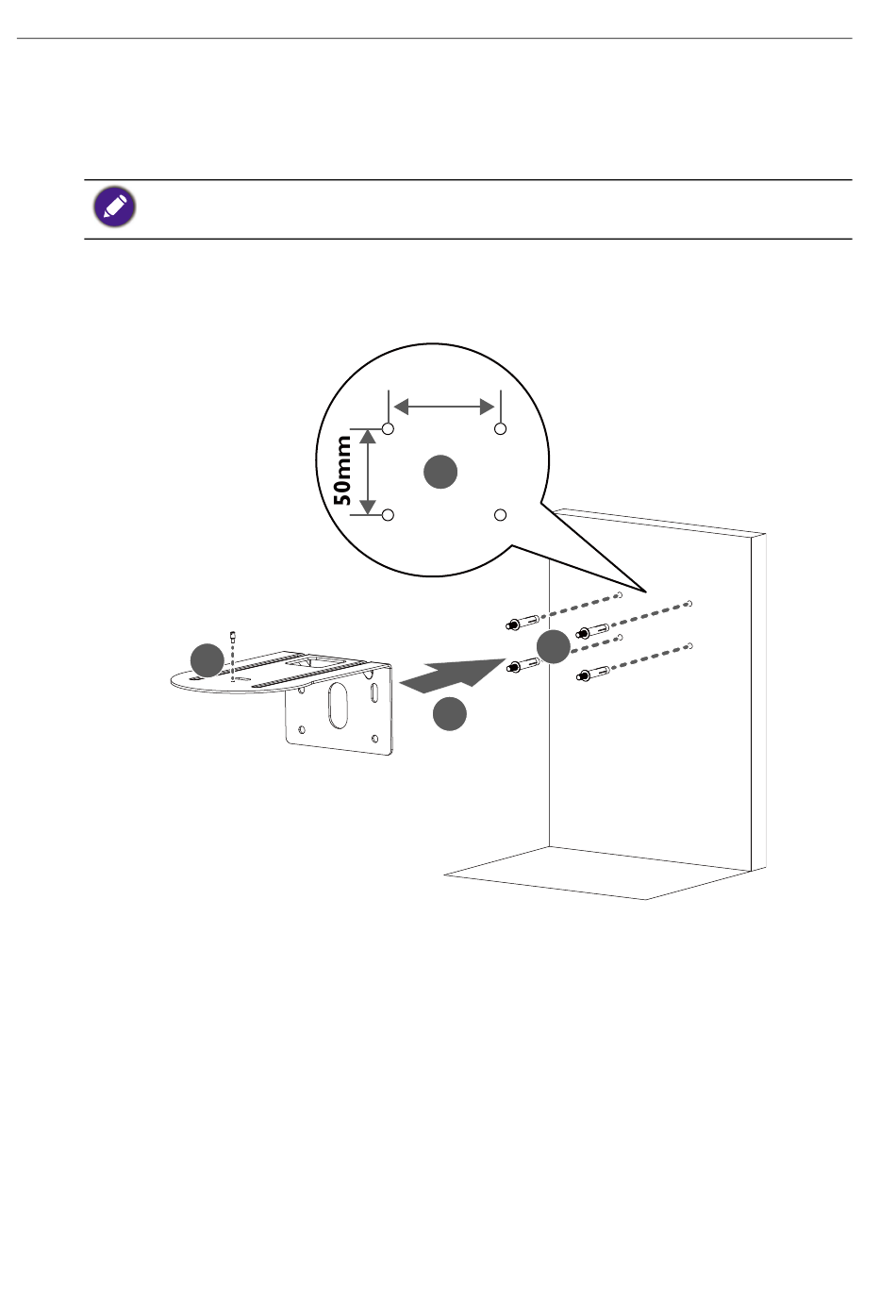

Installing the wall mount

To install the wall mount:
1. Choose the location on the wall for the mount and then mark the four screw anchor
installation points on the wall.
The screw holes on the mount for the measure 100mm x 50mm.
2. Install the four screw anchors into the wall at the marked points.
3. Install the mount onto the screw anchors.
4. Install the bracket stopper onto the top side of the wall mount.
100mm
1
2
4
3
