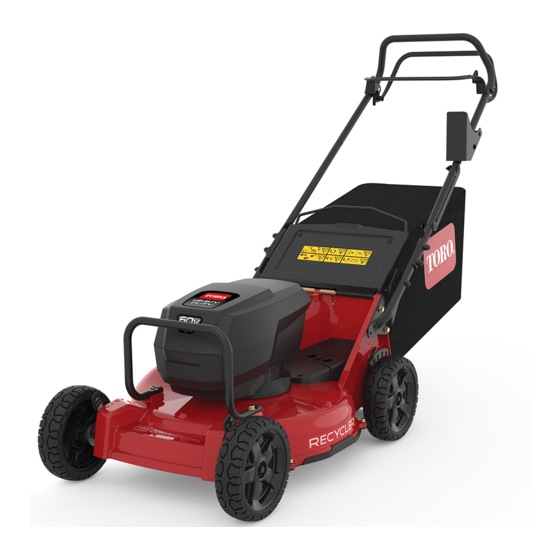

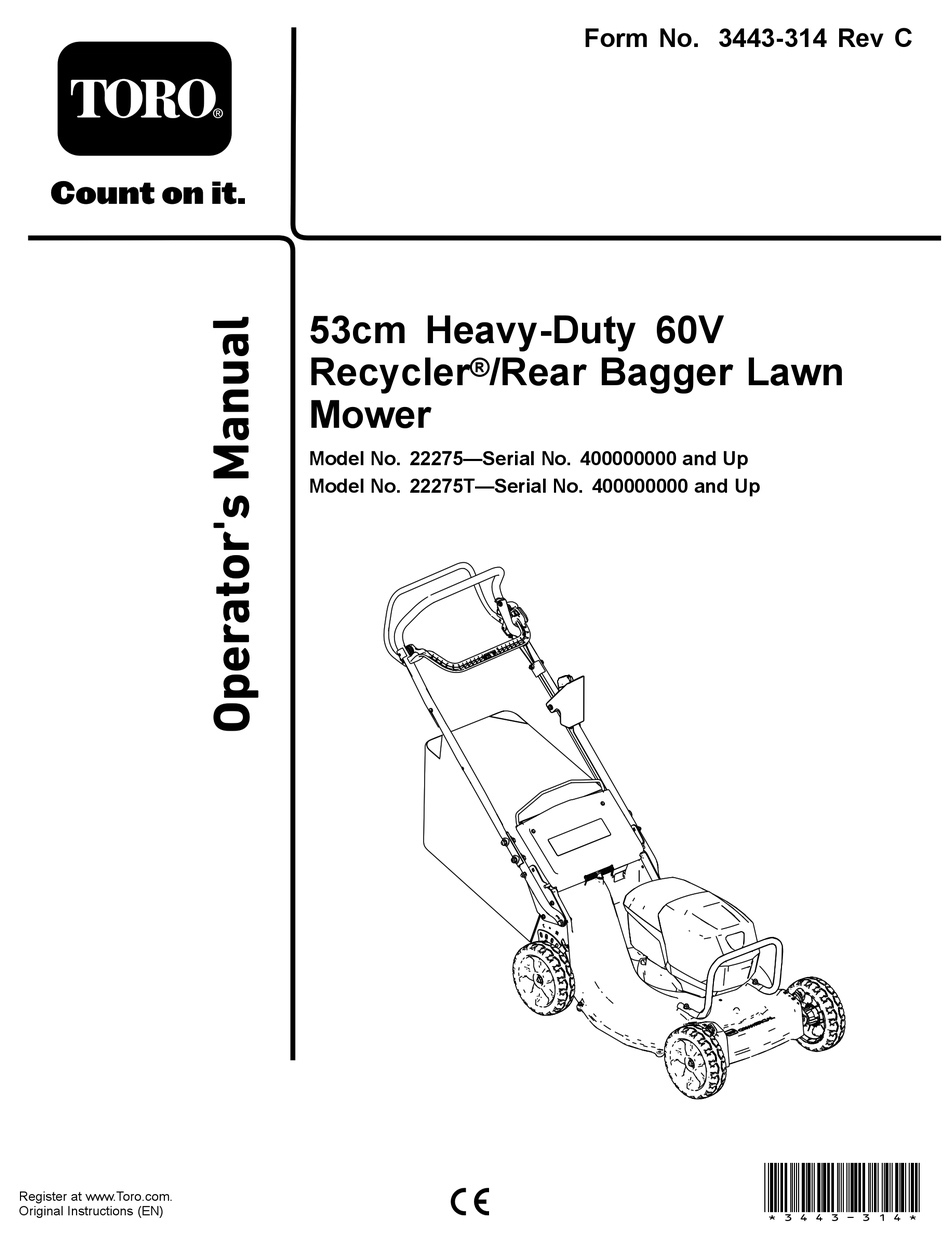

- Page 1 Form No. 3443-314 Rev C 53cm Heavy-Duty 60V Recycler ® /Rear Bagger Lawn Mower Model No. 22275—Serial No. 400000000 and Up Model No. 22275T—Serial No. 400000000 and Up *3443-314* Register at www.Toro.com. Original Instructions (EN)
- Page 2 2), which signals a hazard that may cause charger. serious injury or death if you do not follow the Visit www.Toro.com for more information, including recommended precautions. safety tips, training materials, accessory information, help finding a dealer, or to register your product.
-
Page 3: Table Of Contents
Replace any damaged or unreadable labels. Use only the battery pack specified by Toro. Using other accessories and attachments may increase the risk of injury and fire. Plugging the battery charger into an outlet that is not 100 to 240 V can cause a fire or electric shock. - Page 4 Charge the battery pack with only the battery do the job better and safer at the rate for which it charger specified by Toro. A charger suitable for was designed. 1 type of battery pack may create a risk of fire when used with another battery pack.
- Page 5 68°C (154°F) or incinerate Do not attempt to repair the machine except as it. Replace the battery pack with a genuine Toro indicated in the instructions. Have an Authorized battery pack only; using another type of battery Service Dealer perform service on the machine pack may cause a fire or explosion.
-
Page 6: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal137-9490 137-9490 1. Read the Operator’s 4. Keep away from open decal144-3175 144-3175 Manual. - Page 7 decal131-0822 131-0822 decal140-8472 1. Self-propel drive—Attention; premature wear of the 140-8472 transmission may occur if the belt is over-tightened; before servicing or performing maintenance, read the Operator's 1. Read the Operator’s 3. Residential Manual. Manual. 2. Do not discard. 4. Double insulated decal112-8760 112-8760 1.
-
Page 8: Setup
Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Mounting hardware (not included) Mount the battery charger (optional). – No parts required Remove the cable guard. Upper handle assembly Lower handle Bolt (5/16 x 1-3/4 inches) Assemble the lower handle. -
Page 9: Removing The Cable Guard
Removing the Cable Guard No Parts Required Procedure g328502 Figure 4... -
Page 10: Assembling The Lower Handle
Assembling the Lower Handle Parts needed for this procedure: Upper handle assembly Lower handle Bolt (5/16 x 1-3/4 inches) Flange locknut (5/16 inch) Curved washer Procedure Assemble the lower handle as shown in Figure g340673 Figure 5 1. Flange locknut (5/16 inch) 4. -
Page 11: Installing The Handle
Installing the Handle No Parts Required Procedure g351011 Figure 6... -
Page 12: Installing The Cable Guard
Installing the Cable Guard No Parts Required Procedure g350108 Figure 7 Assembling the Grass Bag No Parts Required Procedure g238450 Figure 8... -
Page 13: Product Overview
Specifications Product Overview Appropriate Temperature Ranges Charge/store the battery pack 5°C (41°F) to 40°C (104°F)* Use the battery pack at -30°C (-22°F) to 49°C (120°F)* Use the machine at 0°C (32°F) to 49°C (120°F)* *Charging time will increase if you do not charge the battery pack within this range. -
Page 14: Before Operation
Operation Before Operation Installing the Battery Pack Important: Use the battery pack only in temperatures that are within the appropriate range; refer Specifications (page 13). Make sure that the vents on the battery are clear of any dust and debris. Lift up the battery-compartment lid (A of Figure 11). -
Page 15: Adjusting The Cutting Height
Adjusting the Cutting Height WARNING Adjusting the cutting-height levers could bring your hands into contact with a moving blade and result in serious injury. • Shut off the motor, remove the electric-start button, and wait for all moving parts to stop before adjusting the cutting height. -
Page 16: Adjusting The Handle Height
Adjusting the Handle Height You can raise or lower the handle in 1 of 3 positions that is more comfortable for you (Figure 13). g331956 Figure 13 Remove both handle bolts and corresponding nuts. Move the handle to the desired height position. Secure the handle with the previously removed bolts and corresponding nuts. -
Page 17: During Operation
During Operation Starting the Machine Ensure that the battery pack is installed in the machine; refer to Installing the Battery Pack (page 14). Insert the electric-start button into the electric starter switch (A of Figure 14). Squeeze the blade-control bar and hold it to the handle (B of Figure 14). - Page 18 g303153 Figure 15 Removing the Grass Bag DANGER The machine can throw grass clippings and other objects through an opening in the machine housing. Objects thrown with enough force could cause serious personal injury or death to you or to bystanders. •...
-
Page 19: Operating The Self-Propel Drive
Operating the Self-Propel Drive To operate the self-propel drive, squeeze the self-propel drive bar toward the handle and hold it in place (Figure 16). g337279 Figure 17 1. A position 2. M position Shutting Off the Machine Release the blade-control bar (A of Figure 18). -
Page 20: Operating Tips
• Slow down your mowing speed if the machine • does not cut the leaves finely enough. Replace the blade when necessary with a Toro replacement blade. Cutting Grass • Grass grows at different rates at different times of the year. -
Page 21: After Operation
After Operation To remove the battery pack, slide the battery backward out of the charger. Refer to the following table to interpret the LED Charging the Battery Pack indicator light on the battery charger. Indicator Indicates Important: The battery pack is not fully charged light when you purchase it. -
Page 22: Cleaning Under The Machine
Cleaning under the Machine Service Interval: After each use To ensure the best performance, keep the underside of the machine clean and clean under the machine g002600 soon after you have completed mowing. Be especially Figure 21 careful to keep the kickers free of debris (Figure 20). -
Page 23: Maintenance
Maintenance Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Tighten any loose fasteners. After the first 25 hours • Inspect the mower blades for wear or damage. • Inspect the accelerator for wear or damage. • Check the stopping time of the blade brake. The blade must stop within 3 seconds Before each use or daily of releasing the blade-control bar;... -
Page 24: Maintaining The Blade
Maintaining the Blade Inspecting the Blade Service Interval: Before each use or daily—Inspect Always mow with a sharp blade. A sharp blade cuts the mower blades for wear or cleanly and without tearing or shredding the grass damage. blades. Carefully examine the blade for sharpness and wear, Shut off the machine and wait for all moving especially where the flat and the curved parts meet parts to stop. - Page 25 Removing the Blade Carefully examine the accelerator for excessive wear (Figure 25). Because sand and abrasive material can Grasp the end of the blade using a rag or a wear away the metal (especially in the area shown thickly padded glove. as item 2 in Figure 25), check the accelerator before...
-
Page 26: Cleaning The Wheels
Torque the blade bolt to 82 N∙m (60 ft-lb). battery pack or remove any of its components. WARNING Contact your local municipality or your authorized Toro distributor for more information on how to responsibly Operating the machine without the recycle the battery. -
Page 27: Storage
Storage To prepare the machine for off-season storage, perform the recommended maintenance procedures; refer to Maintenance (page 23). Always shut off the machine, wait for all moving parts to stop, and allow the machine to cool before adjusting, servicing, cleaning, or storing it. Store the machine in a cool, clean, dry place. -
Page 28: Troubleshooting
Troubleshooting Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Problem Possible Cause Corrective Action The machine does not run or does not run 1. - Page 29 Problem Possible Cause Corrective Action The LED indicator light on the battery 1. The battery charger and/or battery 1. Unplug the battery charger and move charger is red. pack is over or under the appropriate the battery charger and battery pack temperature range.
- Page 30 Notes:...
- Page 31 Notes:...
- Page 32 The Toro Company (“Toro”) respects your privacy. When you purchase our products, we may collect certain personal information about you, either directly from you or through your local Toro company or dealer. Toro uses this information to fulfil contractual obligations - such as to register your warranty, process your warranty claim or to contact you in the event of a product recall - and for legitimate business purposes - such as to gauge customer satisfaction, improve our products or provide you with product information which may be of interest.
