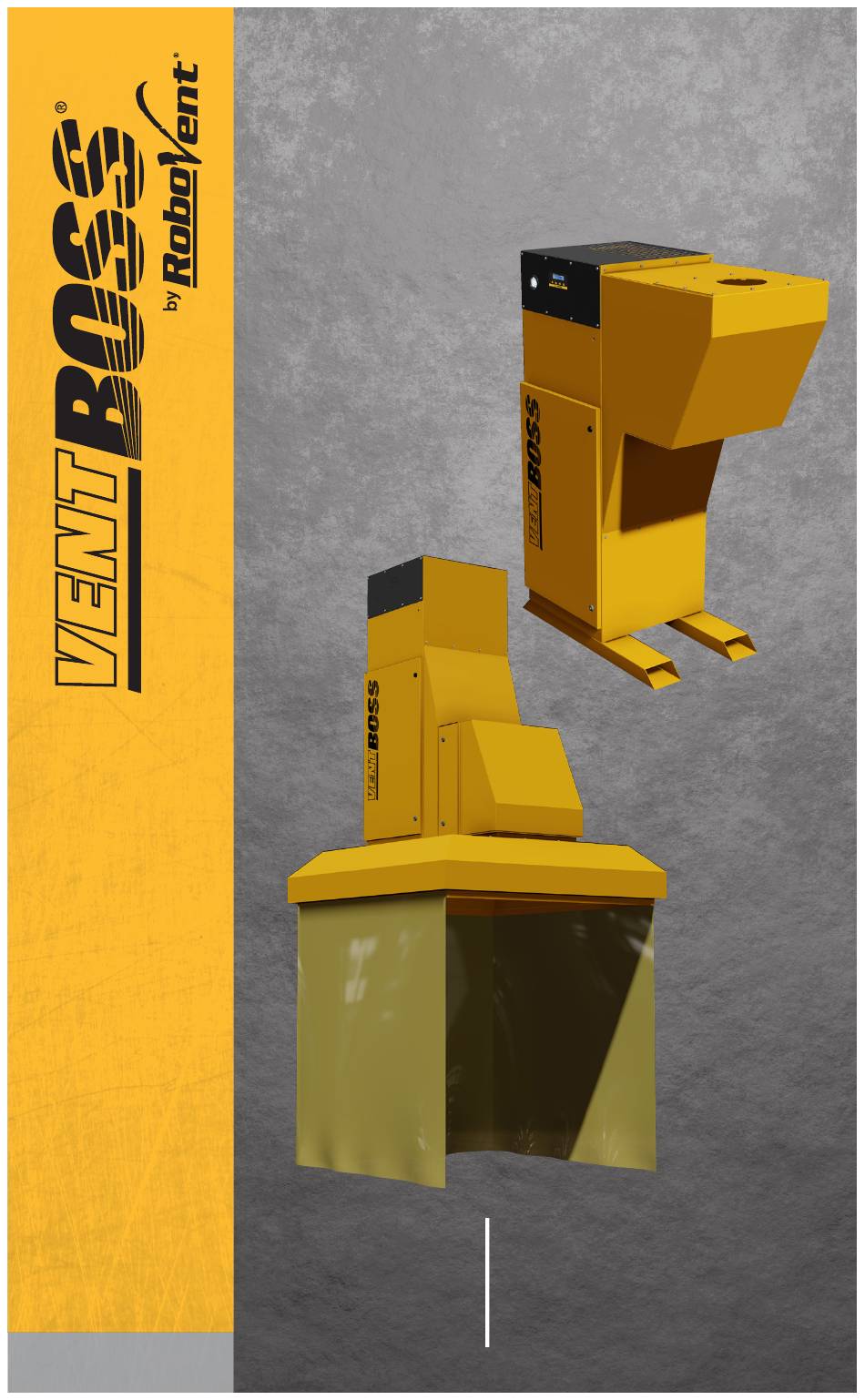

- Page 1 SERIES 300 SPACE SAVER COLLECTORS MODELS S310 S311 S312 S313 S314 S315 S316 S317 S318 S319 S320 S321 OWNER'S Installation, Operation S350 MANUAL & Maintenance...
- Page 3 Installation, Operation & Maintenance Models: Models: Models: S310 S316 S320 S350 S311 S317 S321 S312 S318 S313 S319 S314 S315 Manufactured by: RoboVent 37900 Mound Road Sterling Heights, MI 48310 (855) 558.VENT www.ventboss.com ©2017 RoboVent Product Group, Inc. All rights reserved.
- Page 4 CONGRATULATIONS! Dear Customer, Thank you for purchasing a VentBoss product. This manual will help you use the many features available to customize the unit to your specific welding needs. When your VentBoss needs scheduled maintenance, keep in mind that VentBoss has specially trained staff in servicing our equipment.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions ....Section 100....Page 6 Features of the Series 300 . -
Page 6: Important Safety Instructions
SECTION 100 IMPORTANT SAFETY INSTRUCTIONS CAUTION: Failure to follow all instructions may result in electric shock, bodily injury and possibly severe damage to the unit. CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein, may result in electrical shock. -
Page 7: Features Of The Series 300
SECTION 200 FEATURES OF THE SERIES 300 COLLECTORS 1. Quiet Operation A built-In acoustic lining of high density sound absorbing materials has been implemented as part of the blower compartment. The acoustically designed plenum greatly reduces motor and blower noise levels and decreases ambient noise to the facility. - Page 8 SECTION 200 FEATURES OF THE SERIES 300 COLLECTORS (continued) 5. High Performance Blower The aluminum Acoustafoil blower is the heart of the VentBoss Series 300 units. The backward inclined centrifugal blower is dynamically balanced when the complete unit is assembled, prior to the unit being approved to ship from the VentBoss assembly plant.
-
Page 9: Receiving & Inspection
SECTION 300 RECEIVING & INSPECTION Receiving VentBoss equipment is typically shipped on skids or in crates. The number of skids/ crates will vary, depending on the type, size and accessories ordered. These skids/ crates are too heavy to lift by hand, and will need to be unloaded by an industrial fork- truck or similar equipment. -
Page 10: Equipment Configurations
Delivering over 1500 CFM of air filtration power, the VentBoss 300 Series S310 collector can be placed into any area where welding is performed. - Page 11 Delivering over 1500 CFM of air filtration power, the VentBoss 300 Series collector can be placed into any area where welding is performed. Models S315, S316, S317, S318 and S319 can be wall mounted or hung from the roof or overhead structure.
- Page 12 SECTION 400 EQUIPMENT CONFIGURATIONS (continued) Models: S320 and S321 The VentBoss S320 and S321 operate on a “Back Draft” S321 principle. They can potentially draw the smoke from as far as 30" away from the worker as shown in the diagram.
-
Page 13: Installation
SECTION 500 INSTALLATION Electrical Hook Up To operate your new VentBoss Series 300 collector, you will simply need to place it in positon and connect your 460 Volt, 3 phase power supply to the provided Electrical Disconnect shown (Figure 3). Electrical connections should only be done by a licensed electrician and in accordance with NEC and all applicable local codes. - Page 14 SECTION 500 INSTALLATION Wall Bracket Installation (Figure 6) Attach wall mount hanger B to wall in four places using concrete anchors I and 3/8-16 UNC - 1 hex bolts H. Attach cabinet hanging bracket A to cabinet in two places using 1/2-20 UNF - 1 hex bolts E. Attach bottom cabinet hanging bracket C to cabinet in four places using 3/8-16 UNC - 1.5 hex head tapping screws D.
- Page 15 SECTION 600 OPERATION Pulsing the VentBoss Series 300 Collector (Cleaning the Cartridge Filter) VentBoss Series 300 Collectors come equipped with a Manual Pulsing System located on the front or right side of the collector. To operate, compressed air must be hooked up to the air inlet. (See Compressed Air Hook-Up Section 500) After each days use or when the filter differential FIGURE 7...
- Page 16 SECTION 600 OPERATION (continued) The Fume Arms have two adjustment points that can be changed at any time to give the arm greater flexibility. Friction disks, located at the base of the arm and at the first hinge point, can be tightened or loosened with a 7/8”...
- Page 17 FIGURE 11 The RoboVent Pro-Series uses the SnapLock Front Load System which is a specially designed lift mechanism and a front load track that locks the cartridge filter in place with a single action lever.
- Page 18 SECTION 700 MAINTENANCE (continued) the system is greatly increased. Typically, these baffles should be removed and cleaned with a hot detergent solution every month. Filters that are bent or deformed beyond repair should be replaced. See Equipment Specifications Sheets for ordering proper replacements. CAUTION! DO NOT replace these baffle filters with anything other than what was originally installed in your unit.
- Page 19 SECTION 800 TROUBLESHOOTING The VentBoss Series 300 Collector is making excessive noise. Check the following: 1. Make sure the blower wheel is not hitting against the bottom filter plate. 2. Check that all motor bolts are securely tightened. 3. Make sure motor bearings are good. (Amperage rating will be higher than normal.) 4.
- Page 21 APPENDIX A FUME ARM INSTALLATION, OPERATION & MAINTENANCE...
- Page 22 APPENDIX A: INSTALLATION, OPERATION & MAINTENANCE General Description & Reservations VentBoss Base Mount Fume Arms are meant for capturing the welding dusts and gases as well as fine dusts, straight at the emission source, in order to avoid expanding the impurities in the process room and being inhaled by people.
- Page 23 APPENDIX A: INSTALLATION, OPERATION & MAINTENANCE (continued) The suction hood can be equipped with a halogen spotlight to light up the workspace. In order to install the extraction arm on the wall or column use a wall bracket. It can also be suspended at the end of the RO-type extension arm.
- Page 24 APPENDIX A: INSTALLATION, OPERATION & MAINTENANCE (continued) Connection diagram for hoods with halogen spot-lights: Fume Arm Assembly 1. Take out the VentBoss extraction arm from the package and put it stably on an even surface. 2. Pull the arm segments apart until you obtain the 45° angle. 3.
- Page 25 APPENDIX A: INSTALLATION, OPERATION & MAINTENANCE (continued) Pic. 1 Pic. 2 In case when the extraction arm is installed on a wall bracket, it is important to carry out levelling of the bracket surface while mounting it on a wall. If the bracket is not levelled, the extraction arm is likely not to keep the requested by User work position and tend to fall into one position only (Pic.
- Page 26 APPENDIX A: INSTALLATION, OPERATION & MAINTENANCE (continued) Pic. 3 Pic. 4 VentBoss Fume extraction arms are delivered in cardboard packages in a partly assembled state. Before the extraction arm is installed at the work place – it is important to bring the device into completely assembled state (according to the enclosed instruction).
- Page 27 APPENDIX A: INSTALLATION, OPERATION & MAINTENANCE (continued) Hood with light • Prior to work, start the extraction fan and make sure the ventilation discharge ductwork is functioning. • Set the hood into suitable position: not more than 30 cm from the welding arc, and not less than 20 cm –...
- Page 28 APPENDIX A: INSTALLATION, OPERATION & MAINTENANCE (continued) Using Your VentBoss Fume Arm The construction guarantees a safe and reliable function without continuous servicing and special handling. The adjustment of the ERGO extraction arm consists mainly in corrections within the frictional joints. The frictional brakes are placed in each joint of the d evice and their function is to give the balance and self-supporting properties of the whole extraction arm and ensure an easy manoeuvring during the operation.
- Page 29 APPENDIX A: INSTALLATION, OPERATION & MAINTENANCE (continued) Maintenance & Repair In order to obtain appropriate capture efficiency of the suction hood, clean its surface and the inlet wire-mesh net from the deposited dusts and impurities. In case of welding dusts, additionally – sprinkle the hood with an anti-spattering liquid to avoid adhesing the welding chippings.
- Page 30 APPENDIX A: INSTALLATION, OPERATION & MAINTENANCE (continued) Range of Fume Extraction Arm: ERGO-M/Z 2400 2400 2200 2200 2000 2000 1800 1800 1600 1600 Type D {mm} E {mm} F {mm} L {mm} 1400 1400 ERGO-L/Z-2 65,51 79,72 28,27 90,79 1200 1200 1000 1000...
- Page 31 APPENDIX A: INSTALLATION, OPERATION & MAINTENANCE (continued) 1000 1100 me fl ow [m³/h] fl ow [m³/h] Volume fl ow [m³/h] Range of Fume Extraction Arm: ERGO-D/Z 1800 1600 1400 1200 1000 1000 1200 1400 1600 1800 2000 2200 2400 2600 2000 2200 2400...
- Page 32 37900 MOUND ROAD STERLING HEIGHTS, MICHIGAN 48310 USA 855.558.VENT • WWW.VENTBOSS.COM © 2017 RoboVent...
