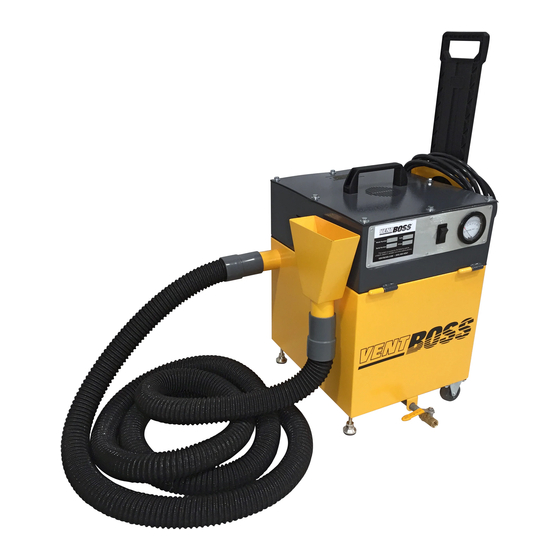

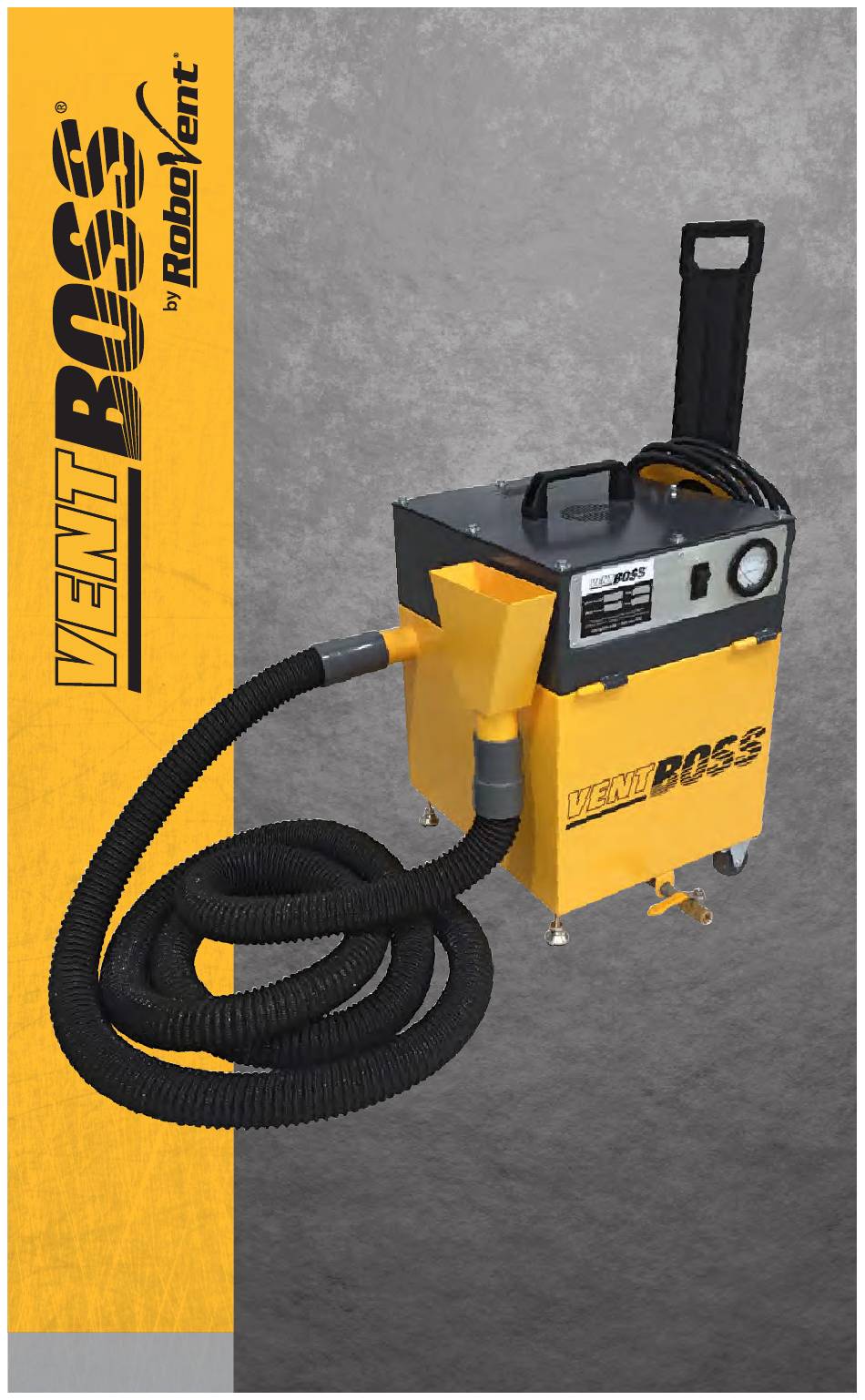

- Page 1 OWNER'S MANUAL Installation, Operation & Maintenance SERIES 100 TOUGH PORTABLES MODEL G130...
- Page 3 OWNER’S MANUAL Installation, Operation & Maintenance G130 Manufactured by: RoboVent 37900 Mound Road Sterling Heights, MI 48310 (855) 558.VENT www.ventboss.com ©2015 RoboVent Product Group, Inc. All rights reserved.
- Page 4 CONGRATULATIONS! Dear Customer, Thank you for purchasing a VentBoss product. This manual will help you use the many features available to customize the unit to your specific welding needs. At VentBoss we are committed to making your facility a safe and healthy environment for your workers.
- Page 5 TABLE OF CONTENTS Important Safety Instructions ....Section 100....Page 6 Features of the G130 .
- Page 6 SECTION 100 IMPORTANT SAFETY INSTRUCTIONS Failure to follow all instructions may result in electric shock, bodily injury and/or destruction of the unit Use of controls, adjustments, or performance of procedures other than those specified herein, may result in electrical shock. IMPORTANT SAFETY INSTRUCTIONS 1.
- Page 7 The unique vertical design increases filter life by 30% to 40% over traditional horizontal filter placement. 3. Simple Controls: The VentBoss G130 Portable is easy to use. Power up with the manual on/off switch and monitor filter condition with the built-in minihelic gauge.
- Page 8 FIGURE 5 cartridge. 10. Extraction Hose: The VentBoss G130 includes a 15' x 2" diameter flex hose and flared cone with magnetic base attachment for quick and easy positioning for effective fume extraction. Figure 5 11.
- Page 9 SECTION 300 RECEIVING & INSPECTION Receiving VentBoss equipment is typically shipped on skids or in crates. The number of skids/ crates will vary, depending on the type, size and accessories ordered. These skids/ crates are too heavy to lift by hand, and will need to be unloaded by an industrial fork- truck or similar equipment.
- Page 10 Fume Guns. The VentBoss G130 will support one smokeless fume gun. GENERAL OPERATION The core of the VentBoss G130 Portable is the industrial 1700 watt high efficiency motor with tangential discharge. The extra long life high performance blower generates up to 110"...
- Page 11 MAINTENANCE Replacing the Filter Cartridge The durable, high grade A15 filter of the VentBoss G130 Portable can be back pulsed by connecting an air source to the ball valve at the bottom front of the unit (see Figure 4) or removed and cleaned with compressed air to deliver hours of filtration.
- Page 12 SECTION 600 Parts List Part # Description V-DFLMP-150-1-CAB Cabinet HPB-8-120 Motor/Blower MHG-60 Minihelic Filter Gauge 0"-100" EX-10D12-A15 Amber15 Filters (Nano MERV 15) MM-12121 Metal Mesh 12" x 12" x 1" FPC-CH Collapsible Handle PLUMB-029 3/8" Ball Valve FPC-LFP Leveling Foot Pad WHEEL-001 2"...
- Page 14 37900 Mound Road Sterling Heights, Michigan 48310 USA 855.558.VENT • WWW.VENTBOSS.COM © 2015 RoboVent Product Group...
