Summary of Contents for Blastrac BMP-265
- Page 1 Original Instructions in English language OPERATING INSTRUCTIONS BMP-265 E/B VERSION 2.3...
-
Page 2: Maintenance Log
Inspection comments Inspection before initial operation on: __________________________________________ __________________________________________ Date of initial operation: __________________________________________ Serial number & Year of manufacture: __________________________ _____________ Recurring inspections / maintenance log Date / Hour counter Findings Repairs / Cleaning Test *Competent person... -
Page 3: Table Of Contents
Table of contents Maintenance log 1. Introduction 2. Machine description Accessories 3. Safety Work area safety Personal safety Machine safety Electrical safety Petrol version safety Dust collector safety Maintenance safety Transport safety Signs on the machine 4. Initial operation Checkpoints of electrical power supply Checkpoints of the petrol engine Checkpoints of the machine Manual moving of the machine... -
Page 4: Introduction

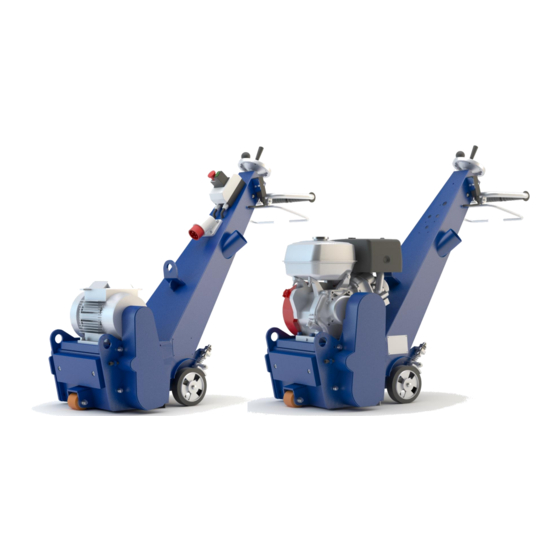

2. Machine description The Blastrac scarifier BMP-265 can be supplied with a 400 volt electric motor or with a combustion engine. The intended use of this scarifier is to roughen up existing horizontal surfaces and removing coatings. It can be used on almost any surface (concrete, asphalt, stone and steel). -
Page 5: Accessories
Deadman switch cord Deadman switch Brake handle Fine adjustment adjustable bolt for brake pressure MPL272 Accessories MPL60 The cutters for the BMP-265 are: MPD265SL272S Drum complete with MPL272 MPD265SL60S Drum complete with MPL60 MPD265SL75S Drum complete with MPL75-1 MPL272SL265 Refill set MPL265... -
Page 6: Safety
3. Safety Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, explosions and / or serious injuries. Only authorized and trained personnel may operate this machine. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. -
Page 7: Machine Safety
Electrical cables must be rolled entirely off of the reels. c) Any damage to the electric cables and/or electrical components is not permitted. d) If the power supply cable or plug is damaged, it must be replaced immediately. Only use original Blastrac parts. -
Page 8: Petrol Version Safety
Don’t leave the machine laying backwards for a long time, because this may result in fuel spillage. Dust collector safety by a machine a) Always use a Blastrac dust collector to ensure a dust-free operation of the machine and clean air at the workspace. Also the airflow helps to cool the machine and prevents overheating. -
Page 9: Transport Safety
Transport safety a) Be aware of your surroundings and machine operating level. Do not side hill, do not run on steep incline, this could cause machine to tip over. b) The weight of the BMP-265E is 175 kg, the BMP-265B is 190 kg. Use a crane or lift when transporting the machine, use the lifting eyes on the machine. -
Page 10: Signs On The Machine
Signs on the machine The following stickers are placed on the machine. Meanings of these symbols are: Wear a dust mask class FFP2 or ! Danger Hazardous voltage in motor higher. even when solid state controller is OFF. Disconnect main power before servicing motor, controller or associated wiring. -
Page 11: Initial Operation
4. Initial operation Before using the machine it is of great importance to inspect the machine. It is not permitted to use the machine if the machine safety is not according the checkpoints below. Checkpoints electrical power supply Use only extension cables for extending the main cable that are sized and marked in accordance with ... -
Page 12: Manual Moving Of The Machine
Manual moving of the machine To move the machine squeeze in the brake handle of the machine until the brakes are released from the wheels. The machine can now be pushed around on its wheels. The machine should only be moved around when the dust hose, and power supply cable are disconnected. WARNING! Always make sure all rotating parts have come to a complete standstill before moving around the machine. -
Page 13: The Scarifying Drum
(see drawing below). alterations, it is possible to adjust the Blastrac scarifier for the applications or rather for the requirements of the specific surfaces. All the machines work according to the principle of a loose tool seated on an axle. The rotation of the scarifying drum generates a centrifugal force on the flails or cutters which are kept by the lateral axles. -
Page 14: Control Devices
Control devices Brake handle Quick lift lever Fine adjustment Dead mans switch Stop button (E-version only) Start button (E-version only) Power connection plug (E-version only) Dust hose connection 1. Brake Handle In the neutral position the brakes are on the wheels, squeeze to take the brakes off. Make sure the handle is in the neutral position when starting up. -
Page 15: Operating
5. Operating During operating the BMP-265, the following additional safety instructions must be followed closely. Before switching on the machine make sure that no-one can be endangered when the machine starts up. All persons in the proximity of the machine must wear safety glasses with lateral protection as well as safety shoes and ear protection. -
Page 16: Switch Off The Machine
Make sure that no vehicles, such as forklift trucks and other equipment run over the electric cable and the dust hose. The selection of the correct advancing speed of the machine is important for a good result. In the case that the surface has different characteristics (e.g. -
Page 17: Maintenance
Pay attention to unusual noises or strong vibrations. Check for the cause of every big change. Call a technician if you have doubts about the cause or when a repair without a technician seems not possible without damages. Only use genuine Blastrac spare parts. Our specialists will be happy to assist you with more advice. -
Page 18: The Scarifying Drum
All repair work must to be done by qualified Blastrac personnel, this to guarantee a safe and reliable machine. Any guarantee on the machine is expired when: Non original Blastrac parts have been used Repair work is not done by qualified Blastrac personnel ... -
Page 19: Belt Drive
Belt drive Motor Tension pulley Belt The correct belt tension is of utmost importance in order to obtain a perfect power transmission and to reach the usual working life of the belt. Too low or to high tension causes frequently a premature breakdown of the belt. -
Page 20: Technical Data
Suitable filter unit We will assist you with a good advice Design and specifications are subject to change without notice by Blastrac BV. IMPORTANT NOTES: Noise and vibration measurements were taken during heavy operation on concrete. The noise and vibration levels depend on the working depth, which is in turn determined by the unevenness of the surface. - Page 21 Despite the fact that this guide is made with care, Blastrac takes no liability for errors in the manual and the possible consequences. We are naturally very interested in your findings and additions. No part of this publication may be reproduced...
- Page 22 BLASTRAC EUROPE WE’RE READY TO ASSIST YOU! BLASTRAC THE NETHERLANDS BLASTRAC POLAND BLASTRAC FRANCE EUROPEAN HEAD OFFICE SALES & SERVICE CENTRE SALES & SERVICE CENTRE Utrechthaven 12 Golina, ul. Dworcowa 47E ZI - 29, Av. des Temps Modernes NL - 3433 PN Nieuwegein...
