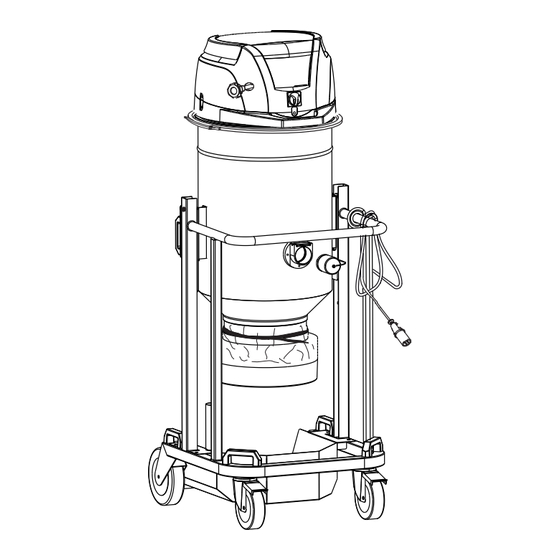

- Page 1 BDC-133M / BDC-133H MANUALE DI ISTRUZIONI INSTRUCTIONS MANUAL MANUEL D’INSTRUCTIONS BETRIEBSANLEITUNG MANUAL DE INSTRUCCIONES GEBRUIKSHANDLEIDING C433-I-GB-F-D-E-NL 01/2018...
-
Page 2: Table Of Contents
Operating manual BDC-133M / BDC-133H 1/18 Translation of original instructions Table of contents Instructions for use ................2 Operator's safety .................... 2 General information for using the vacuum cleaner ..........2 Proper uses ....................2 Improper Use ....................2 Versions ......................3 EC Declaration of conformity ................ -
Page 3: Instructions For Use
Operating manual BDC-133M / BDC-133H 2/18 Instructions for use Read the operating instructions and comply with the important safety recommendations identified by the word WARNING! Operator's safety Proper uses This vacuum cleaner is suitable for commercial use, in WARNING! hotels, schools, hospitals, factories, shops, offices and... -
Page 4: Versions
Operating manual BDC-133M / BDC-133H 3/18 Versions Classification in compliance with standard EN 60335-2-69 – Annexe AA WARNING! Vacuum cleaners for dust harmful to health are classified according to different dust classification: Dust classification M (medium risk) suitable for separating dust with ■... -
Page 5: Vacuum Cleaner Description
Operating manual BDC-133M / BDC-133H 4/18 Vacuum cleaner description Vacuum Cleaner Parts and Labels Optional kits Please contact the manufacturer's sales network for Figure 1 information on optionals. Identification plate which includes: Instructions for installing the optional are included in the Code of the Model, Class, Technical Specifications conversion kit. -
Page 6: Setting To Work - Connection To The Power Supply
Operating manual BDC-133M / BDC-133H 5/18 Setting to work - connection to the Extensions power supply If an extension cable is used, make sure it is suitable for the power input and protection degree of the vacuum cleaner. WARNING! Minimum section of extension cables: 2.5 mm... -
Page 7: Technical Data
Operating manual BDC-133M / BDC-133H 6/18 Technical data Parameter Units BDC-133M BDC-133M Voltage (50 - 60 Hz) Power rating Power rating (EN 60335-2-69) Max vacuum hPa-mbar Maximum air flow rate (with hose, length: 3 m, L/min' 6500 5950 6500 diameter: 50 mm) -
Page 8: Controls And Indicators
Operating manual BDC-133M / BDC-133H 7/18 Controls and indicators Inspections prior to starting Figure 5 Figure 6 Start/stop switch Inlet 2-way selector: position "0" - The vacuum cleaner is turned OFF. Prior to starting, check that: position "I" - The vacuum cleaner is turned ON. -
Page 9: Operation
Operating manual BDC-133M / BDC-133H 8/18 Operation Primary filter shaker Manual primary filter shaker WARNING! Figure 9 The air speed in the suction tube must not be less than 20 m/s. In relation to the quantity of material vacuumed and if This state is shown by the green indicator of the indicator (9 - Fig. -
Page 10: At The End Of A Cleaning Session
Operating manual BDC-133M / BDC-133H 9/18 At the end of a cleaning session The external parts of the vacuum cleaner must be ■ decontaminated by cleaning and vacuuming methods, ■ Turn the vacuum cleaner off with switch (1 - Fig. 5) and dedusted or treated with sealant before being taken out disconnect the plug from the socket. -
Page 11: Main And Absolute Filter Disassembly And Replacement
Operating manual BDC-133M / BDC-133H 10/18 Main and absolute filter disassembly Primary filter safe replacement and replacement WARNING! Take care not to raise dust when this operation is WARNING! carried out. Wear a P3 mask and other protective When the vacuum cleaner is used to vacuum... -
Page 12: Absolute Filter Replacement
Operating manual BDC-133M / BDC-133H 11/18 New primary filter installation Absolute filter replacement Figure 12 WARNING! Manual filter shaker knob Take care not to raise dust when this operation is Vacuuming unit carried out. Wear a P3 mask and other protective... -
Page 13: Disposing Of The Vacuum Cleaner
Operating manual BDC-133M / BDC-133H 12/18 Disposing of the vacuum cleaner Figure 15 Dispose of the vacuum cleaner in compliance with the laws in force. ■ Proper disposal (electric and electronic waste). (Applicable in the European Union and in countries providing a separate collection system) The above symbol (Fig. - Page 14 Operating manual BDC-133M / BDC-133H 13/18 Procedure for Longopac system installation ® Remove the holder Insert the Longopac bag and cut the connections ® Prepare the bag on the stand, pull out the end and start www.blastrac.eu ‒ info@blastrac.eu...
- Page 15 Operating manual BDC-133M / BDC-133H 14/18 Place the holder on the vacuum cleaner “Duck-neck” closure of the bag with adhesive tape www.blastrac.eu ‒ info@blastrac.eu...
- Page 16 Operating manual BDC-133M / BDC-133H 15/18 Procedure for hose removal Remove the hose, Place the vacuum including its plug coupling, from the vacuum cleaner Roll the hose Thread the two ends Use a belt or tape to into each other...
-
Page 17: Recommended Spare Parts
Operating manual BDC-133M / BDC-133H 16/18 Recommended spare parts The following is a list of spare parts that should be kept ready at hand in order to speed up maintenance operations. Refer to the manufacturer's spare parts catalogue when ordering spare parts. -
Page 18: Troubleshooting
Operating manual BDC-133M / BDC-133H 17/18 Troubleshooting Problem Cause Remedy The vacuum cleaner does not Lack of power supply Check for power at the socket. start Check the condition of the socket and the cable. Ask for assistance to be performed by a qualified manufacturer's technician. - Page 19 Operating manual BDC-133M / BDC-133H 18/18 www.blastrac.eu ‒ info@blastrac.eu...
- Page 20 Operating manual BDC-133M / BDC-133H 1/11 13 A 3000 W Kg 71 Ref.No: 50/60 Hz www.blastrac.eu ‒ info@blastrac.eu...
- Page 21 Operating manual BDC-133M / BDC-133H 2/11 www.blastrac.eu ‒ info@blastrac.eu...
- Page 22 Operating manual BDC-133M / BDC-133H 3/11 POS.2 POS.1 www.blastrac.eu ‒ info@blastrac.eu...
- Page 23 Operating manual BDC-133M / BDC-133H 4/11 www.blastrac.eu ‒ info@blastrac.eu...
- Page 24 Operating manual BDC-133M / BDC-133H 5/11 www.blastrac.eu ‒ info@blastrac.eu...
- Page 25 Operating manual BDC-133M / BDC-133H 6/11 www.blastrac.eu ‒ info@blastrac.eu...
- Page 26 Operating manual BDC-133M / BDC-133H 7/11 www.blastrac.eu ‒ info@blastrac.eu...
- Page 27 Operating manual BDC-133M / BDC-133H 8/11 www.blastrac.eu ‒ info@blastrac.eu...
- Page 28 Operating manual BDC-133M / BDC-133H 9/11 www.blastrac.eu ‒ info@blastrac.eu...
- Page 29 Operating manual BDC-133M / BDC-133H 10/11 VERSIONE IN LINGUA ORIGINALE 1) The machine is in compliance with the Directive and Standards below listed: 1) RISULTA IN CONFORMITÀ con quanto previsto dalle seguenti direttive comunitarie: Direttiva comunitaria Comunity Directives 2006/42/EC 2006/42/EC •...
- Page 30 Operating manual BDC-133M / BDC-133H 11/11 www.blastrac.eu ‒ info@blastrac.eu...
