Inspection comments Inspection before initial operation on: __________________________________________ __________________________________________ Date of initial operation: __________________________________________ Serial number & Year of manufacture: __________________________ _____________ Recurring inspections / maintenance log Date / Hour counter Findings Repairs / Cleaning Test *Competent person...

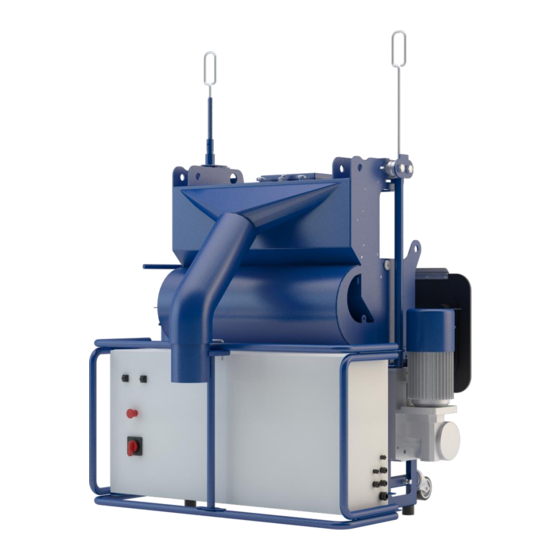

This machine has a Work Load Limit of 1120kg. The Blastrac 900-DC filter unit must be connected to the machine in order to separate the dust from the abrasive. This specially designed dust collection system ensures dust-free operation of the machine and clean air at the workspace.
2.2 Remote control Reset Emergency Stop The identification numbers on the remote control and the machine must match. This 4 digit number is indicated as followed: Id.no: xxxx The identification numbers can be found on the back of the remote control and inside the electrical box on the machine.
1g) Operating hours counter Foreseeable Misapplications Blastrac provides no warranty, accepts no liability and the warranty becomes void in the event of physical injury or damage caused by the following misapplications of the hoists and safety devices: • Improper use of the product and its related attachments and accessories •...
Page 7
Emergency Operation In emergency situations (e.g. power failure, fire) the hoist can also be lifted purely mechanically. The manual descent function can be used for the descent and the hand wheel for the ascent. Manual Descent By manually opening the hoist motor brake, the load can be lowered under its own weight. This process is referred to as manual descent and is only allowed to be used for lowering the load in an emergency.
Page 8
Action to be taken when an Incident occurs with a Safety Device Safety devices are to be replaced at all times and sent to Blastrac for inspection following a safety incident! The renewed use of safety devices...
Rope Types The following table shows all permissible rope types that can be used in combination with the 900VMB. Use of a rope with a diameter that is too large or too small leads to an impairment of the hoist function and can result in the load falling from a height.
Electrical cables must be rolled entirely off of the reels. c) Any damage to the electric cables and/or electrical components is not permitted. d) If the power supply cable or plug is damaged, it must be replaced immediately. Only use original Blastrac parts.
The machine, specially the handle grip(s) must be free of fats/oils and has to be dry. All repair work has to be done by qualified Blastrac personnel, this guarantees a safe and reliable machine. k) Always use original Blastrac spare parts and abrasive. This will ensure the best performance.
Welding work on the winch and the steel cable is strictly forbidden. The steel cable must not be used as earth conductor for welding work. h) Only use the Blastrac approved steel cables in appropriate condition. Using any other steel cable voids all warranty claims against Blastrac BV.
Dust collector safety by the machine a) Always use a Blastrac dust collector to ensure a dust-free operation of the machine and clean air at the workspace. Also the airflow helps to cool the machine and prevents overheating.
Markings on the machine The following stickers are placed on the machine. Meanings of these symbols are: Wear a dust mask class FFP2 or ! Danger Hazardous voltage in motor higher. even when solid state controller is OFF. Disconnect main power before servicing motor, controller or associated wiring.
4. Before operation Before using the machine it is of great importance to inspect the machine. It is not permitted to use the machine if the machine safety is not according the checkpoints below. Daily check points power supply Use only extension cables for extending the main cable that are sized and marked in accordance with ...
Testing the Proximity-switch The Proximity-switch detects if the machine is sucked against the surface to be treated. In the unlikely event that the machine comes from the wall during blasting, the proximity-switch will immediately close the shotvalves at double speed, minimising the damage and danger. Make sure the dusthose is connected and the dustcollector is ON.
Testing the End-switch for winch The end-switch for the winch stops the movement in the upward direction when the end-switch is activated. If the end-switch is activated, only the downward movement of the machine is possible. This safety feature will protect the machine and rigging from getting crushed by moving too far upwards. Make sure the dusthose is connected and the dustcollector is ON.
5. Operating During operating the 900-VMB, the following additional safety instructions must be followed closely. Before switching on the machine make sure that no-one can be endangered when the machine starts up. Make sure that no vehicles, such as forklift trucks and other equipment run over the electric cable and the dust hose.
Adjust cable guide rolls and swivel castors The mouth seal must be parallel to the wall when the machine is hanging freely in the hoist cables. The position of this mouth seal can be changed by loosening the 2 bolts of the cable guide rolls.
Switch on the machine Before switching on the blast machine, switch on the vacuum unit. Lift the machine a little bit above the ground and allow it to suck to the wall. Press the green button “Blast wheels ON” and check the rotating direction of the blast motor. The correct direction is given with an arrow on the housing of the motors.
Operation Carry out blasting in parallel tracks in such way that the dust hose and electric cable do not become twisted. Make sure nothing can snag the dust hose or cable. The selection of the correct advancing speed of the blast machine is important for a good blast cleaning result. In the case that the surface has different characteristics (e.g.
Pay attention to unusual noises or strong vibrations. Check for the cause of every big change. Call a technician if you have doubts about the cause or when a repair without a technician seems not possible without damages. Only use genuine Blastrac spare parts. Our specialists will be happy to assist you with more advice.
Page 24
Remove the abrasive out of the abrasive storage hopper. All repair work must to be done by qualified Blastrac personnel, this to guarantee a safe and reliable machine. Any guarantee on the machine is expired when: Non original Blastrac parts have been used ...
Changing the mouth seal complete Disconnect the proximity switch. Pull off all 12 rubber springs from the threaded ends. Remove mouth seal complete from the housing. Assembly of a mouth seal complete Be sure that all rubber plates are in one line. If plates are not mounted in one line, the mouth seal will not move easy back and forwards.
Changing the blast wheel blades and impeller Remove the spare shot hopper. Remove the clamps of the abrasive valves. Disconnect the wire of the abrasive valves. Lift out both abrasive valves. Remove all abrasive and clean the blast wheels and blades with air. ...
Changing the control cages Remove the spare shot hopper. Remove the clamps of the abrasive valves. Disconnect the wire of the abrasive valves. Lift out both abrasive valves. Unscrew 4x M10 nuts of the cage ring and remove the ring. ...
Regular checks of hoisting cables Stop working immediately if defects occur during operation! Wire ropes must be replaced immediately if a defect has been detected during the weekly check: More than 11 broken wires over a length of 27 cm ...
We recommend performing safety reviews at the Blastrac plant. The deadline for performing the review starts when the review report is created by Blastrac on delivery, or for the general overhaul, or on completion of the preceding annual review. The contents of this review are to be sourced from the service instructions.
Abrasive valve maintenance It is very important to keep the abrasive valves in good condition. Inspect and clean them regularly. Replace the E09280 Valve rubber every +/- 50 hours. 1. Connect the cable of the valve with a 12V power supply and wait until the valve is fully open.
Page 31
3. Remove the M6 bolts (3x) and remove the shield. 4. Remove the M6 locking nuts (2x) and remove the springs. 5. Loosen the M4 bolts (2x), release the tension springs and remove the pen. 6. Pull the valve up and remove the M6 bolts (2x) from the bush. 7.
Page 32
10. Pinch the new Valve rubber (E09280) in so it will fit through the window. Push the Valve rubber down until it goes no further. Step 10 11. Mount the bush on top of the valve with a M6 bolt. Slide the valve halfway down and mount the actuator on the bush with a M6 bolt.
Page 33
13. Place the pen through the actuator, make sure the pen is straight. If it is not straight, replace the pen or straighten it out. (Actuator pen – E09625) Make sure the pen is positioned in the middle. Slide the small bushes over the pen and tighten them. Tension spring M4 Allen screw Step 13...
Page 34
15. Apply body caulking as shown in the picture. Step 15 Replace the worn out nuts if necessary Clean the threads 16. Place the left and right valve next to each other. The “windows” of the control cages should be mirrored. Point “A”...
Remote control maintenance Always refer to the Safety, Service & Maintenance instructions from the Manufacturer for all information. Periodical Maintenance To maintain availability and operational safety, a regular maintenance is necessary on the system. Daily maintenance Before each use of the transmitter, check the following items for faults or damages: Visual inspection of rubber sealing around levers Broken/faulty switches or controls Visual inspection of transmitter housing (cracks, dents)
7.Troubleshooting Fault Possible cause Remedy Excessive vibration Blast wheel is worn irregularly. Replace all blastwheel blades. Imbalance due to worn or broken wheel Remove all broken parts from the blades. machine and replace all blastwheel blades. Unusual noise Too little play or poor alignment of the Check alignment of the rotating parts rotating parts.
Page 37
Replace the magnetic and/or rubber seals. surface or escaping abrasive at the blast head Poor abrasive quality. Contact Blastrac. Contaminated abrasive The dust collector is not generating Check the dust collector (filter-cartridges, enough suction power so that dust dust hopper and seals) remains in the abrasive.
Page 38
UP/DOWN button Damaged/Incorrect wire rope request help from the hoist or wire rope cannot exit manufacturer or Blastrac B) The safety device has been tripped and Evacuate the area immediately! stops owing to breakage on the steel wire Request help from the hoist...
Page 39
M) Incorrect connection, Compare the connection and wiring diagram and have Blastrac perform a e.g. neutral conductor missing conversion if necessary N) Protective shutdown due to a) Check/Repair the fuses, leads and...
Page 40
Allow the motor to cool down for about 15 been tripped due to overheating. minutes. If the aforementioned steps do not result in clarification and rectification of the cause, please call Blastrac or a hoist service authorized by DualLift GmbH.
The Blastrac blast cleaning machines are designed and built to operate with Blastrac abrasive. Blastrac abrasive has a very high quality and has the rebouncing ability required for the efficient use of the machine. The selection of abrasive is very important since this is the material to carry out the surface treatment.
NOTE: when electrical connection is 460 – 480V, the transformer inside the electrical box must be set on 460V. Transformer The electrical diagrams of the electrical system are placed inside of the control panel. Design and specifications are subject to change without notice by Blastrac BV.
Page 43
Despite the fact that this guide is made with care, Blastrac takes no liability for errors in the manual and the possible consequences. We are naturally very interested in your findings and additions.
Page 44
Headquarter Blastrac Poland Blastrac Italy Blastrac The Netherlands Golina, Dworcowa 47a S.S. 10 Padana Inferiore, 41 Utrechthaven 12 PL – 63-200 Jarocin IT – 29012 Caorso (PC) NL – 3433 PN Nieuwegein Tel – 0048 627 40 41 50 Tel – 0039 0523 81 42 41 Tel –...
