SEC/SH/02/21/PJ1

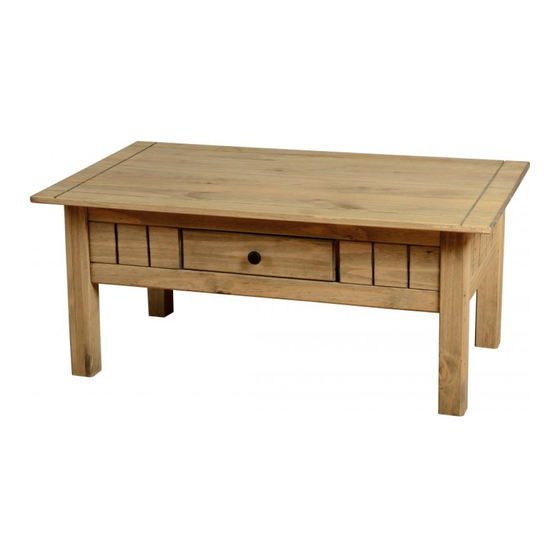

PANAMA 1 DRAWER COFFEE TABLE
ASSEMBLY INSTRUCTIONS

IMPORTANT

PLEASE READ BEFORE YOU CONTINUE FURTHER
FOR DOMESTIC USE ONLY

CARE AND MAINTENANCE

After unpacking this product please keep the original packaging in case it needs to be
returned for any reason.
• Please ensure all fittings and parts are present before commencing with assembly.
• We recommend that you lay a blanket or sheet on the floor to avoid damage to both your
floor and the product.
• We strongly recommend that you keep children away from your work area.
• Assemble this product as close to its final position as possible.
• Never drag or push products as this could cause damage to the joints making it inferior.
• Do not place this product next to a radiator or in direct sunlight.
• Wood is a natural product and may expand if subjected to damp and may shrink or crack
if subjected to heat. Therefore it is recommended that room temperature is maintained,
with no sudden temperature fluctuations.
• Make sure any spillage is wiped off immediately.
• Do not place hot or chilled items directly on to the surface, use a place mat or marking
will occur.
• For general cleaning use a duster, and do not use detergents of any kind. However, the
surface will need to be retreated from time to time. This can be done by using block wax
(unperfumed) and rubbing it over the whole item.
• From time to time it may be necessary to tighten fittings, regular inspections should be
carried out.
Page 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PANAMA 1 DRAWER COFFEE TABLE and is the answer not in the manual?

Questions and answers

Summary of Contents for Seconique PANAMA 1 DRAWER COFFEE TABLE

  • Page 1 SEC/SH/02/21/PJ1 PANAMA 1 DRAWER COFFEE TABLE ASSEMBLY INSTRUCTIONS IMPORTANT PLEASE READ BEFORE YOU CONTINUE FURTHER FOR DOMESTIC USE ONLY CARE AND MAINTENANCE After unpacking this product please keep the original packaging in case it needs to be returned for any reason.
  • Page 2 SEC/SH/02/21/PJ1 * Use of power tools to assemble this product will invalidate * Please check contents and read the instructions before commencing assembly. any claim and damage this product making it unsafe !!! * Assemble this product following the enclosed instructions carefully. * Please assemble on a clean soft surface to avoid damage.
  • Page 3 SEC/SH/02/21/PJ1 FITTINGS FITTINGS Ø 8 x 30mm Ø 3,5 x 35mm M4 x 25mm Ø 3,0 x 30mm TOOLS REQUIRED Page 03...
  • Page 4 SEC/SH/02/21/PJ1 STEP 1 PARTS REQUIRED FRONT FRAME BACK PANEL HARDWARE REQUIRED Ø 8 x 30mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 2 PARTS REQUIRED SIDE PANEL RIGHT DRAWER RUNNER LEFT DRAWER RUNNER HARDWARE REQUIRED Ø...
  • Page 5 SEC/SH/02/21/PJ1 STEP 3 PARTS REQUIRED FRONT FRAME BACK PANEL HARDWARE REQUIRED Ø 3,5 x 35mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 4 PARTS REQUIRED SIDE PANEL RIGHT DRAWER RUNNER LEFT DRAWER RUNNER HARDWARE REQUIRED Ø...
  • Page 6 SEC/SH/02/21/PJ1 STEP 5 PARTS REQUIRED HARDWARE REQUIRED Ø 3,5 x 35mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 6 PARTS REQUIRED TOP PANEL HARDWARE REQUIRED Ø 3,5 x 35mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage.
  • Page 7 SEC/SH/02/21/PJ1 STEP 7 PARTS REQUIRED DRAWER FRONT DRAWER SIDE 10 - DRAWER BOTTOM 11 - DRAWER BACK HARDWARE REQUIRED Ø 3,0 x 30mm M4 x 25mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 8 PARTS REQUIRED HARDWARE REQUIRED Ø...
