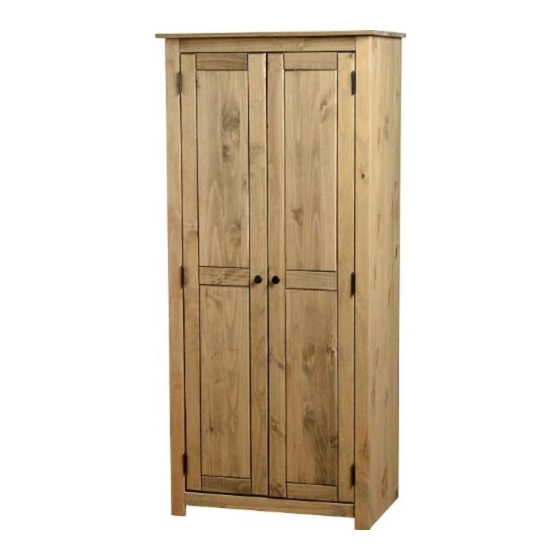

2 door wardrobe

Advertisement

Quick Links

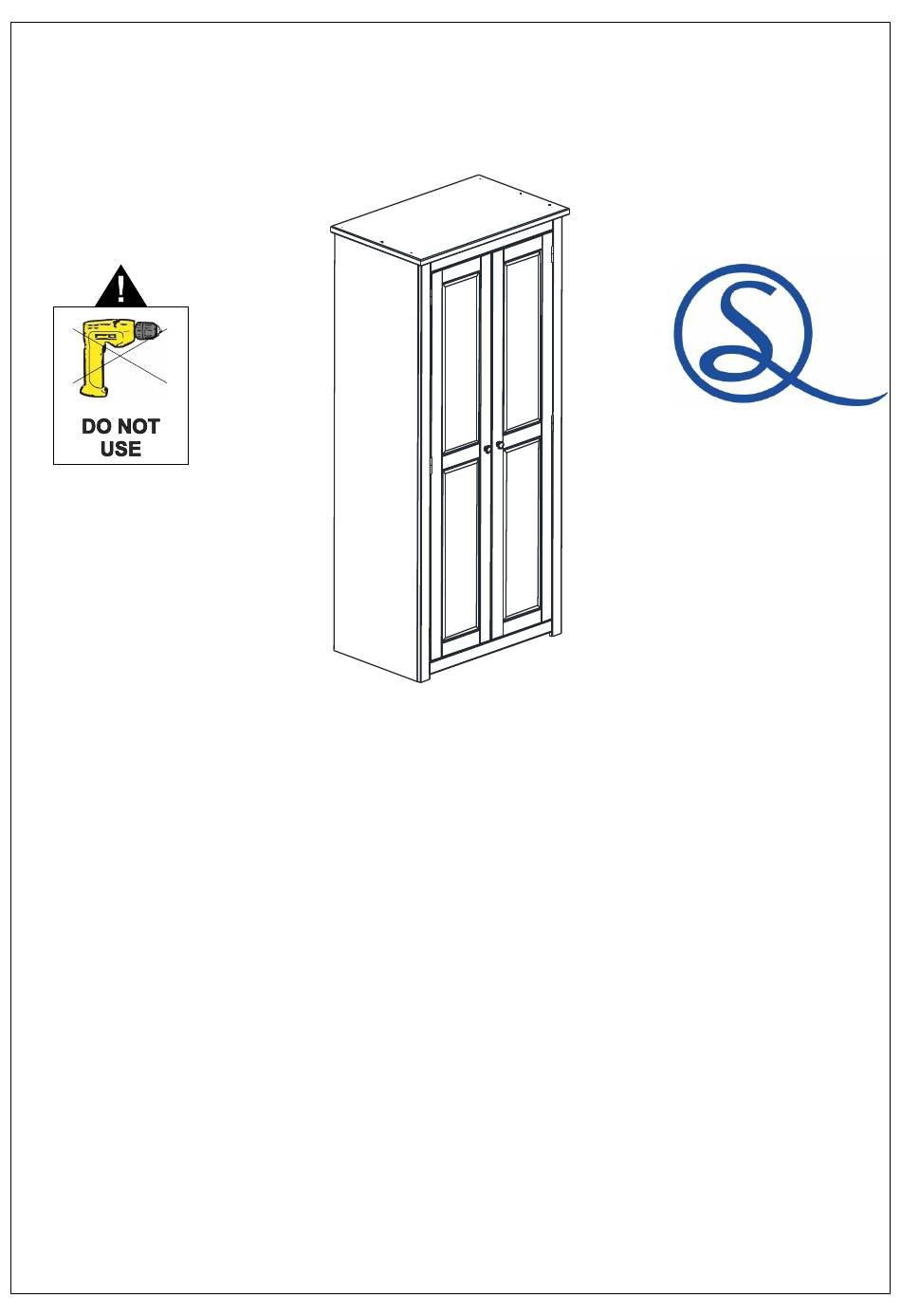

PANAMA 2 DOOR WARDROBE
ASSEMBLY INSTRUCTIONS
PLEASE READ BEFORE YOU CONTINUE FURTHER
FOR DOMESTIC USE ONLY
CARE AND MAINTENANCE
After unpacking this product please keep the original packaging in case it needs to be
returned for any reason.
• Please ensure all fittings and parts are present before commencing with assembly.
• We recommend that you lay a blanket or sheet on the floor to avoid damage to both your
floor and the product.
• We strongly recommend that you keep children away from your work area.
• Assemble this product as close to its final position as possible.
• Never drag or push products as this could cause damage to the joints making it inferior.
• Do not place this product next to a radiator or in direct sunlight.
• Wood is a natural product and may expand if subjected to damp and may shrink or crack
if subjected to heat. Therefore it is recommended that room temperature is maintained,
with no sudden temperature fluctuations.
• Make sure any spillage is wiped off immediately.
• Do not place hot or chilled items directly on to the surface, use a place mat or marking
will occur.
• For general cleaning use a duster, and do not use detergents of any kind. However, the
surface will need to be retreated from time to time. This can be done by using block wax
(unperfumed) and rubbing it over the whole item.
• From time to time it may be necessary to tighten fittings, regular inspections should be
carried out.
IMPORTANT
SEC/SH/02/21/PJ1
Page 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PANAMA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seconique PANAMA

  • Page 1 SEC/SH/02/21/PJ1 PANAMA 2 DOOR WARDROBE ASSEMBLY INSTRUCTIONS IMPORTANT PLEASE READ BEFORE YOU CONTINUE FURTHER FOR DOMESTIC USE ONLY CARE AND MAINTENANCE After unpacking this product please keep the original packaging in case it needs to be returned for any reason.
  • Page 2: Parts List

    SEC/SH/02/21/PJ1 * Use of power tools to assemble this product will invalidate * Please check contents and read the instructions before commencing assembly. any claim and damage this product making it unsafe !!! * Assemble this product following the enclosed instructions carefully. * Please assemble on a clean soft surface to avoid damage.
  • Page 3: Tools Required

    SEC/SH/02/21/PJ1 FITTINGS FITTINGS Ø 8 x 30mm M4 x 25mm Ø 4,0 x 40mm Right Ø 3,5 x 30mm Left Ø 3,0 x 16mm 10x10mm TOOLS REQUIRED Page 03...
  • Page 4 SEC/SH/02/21/PJ1 STEP 1 PARTS REQUIRED RIGHT SIDE PANEL LEFT SIDE PANEL 12 - HANGING RAIL SUPPORT HARDWARE REQUIRED Ø 8 x 30mm Ø 3,5 x 30mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 2 PARTS REQUIRED FRONT CROSSBEAM BASE...
  • Page 5: Hardware Required

    SEC/SH/02/21/PJ1 STEP 3 PARTS REQUIRED BASE 15 - FIXED SHELF 17 - SUPPORT BLOCK HARDWARE REQUIRED Ø 3,5 x 30mm Ø 3,0 x 16mm 8 17 TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 4 PARTS REQUIRED RIGHT SIDE PANEL LEFT SIDE PANEL...
  • Page 6 SEC/SH/02/21/PJ1 STEP 5 PARTS REQUIRED LEFT SIDE PANEL BASE 15 - FIXED SHELF HARDWARE REQUIRED Ø 3,5 x 30mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 6 PARTS REQUIRED RIGHT SIDE PANEL FRONT CROSSBEAM HARDWARE REQUIRED Ø...
  • Page 7 SEC/SH/02/21/PJ1 STEP 7 PARTS REQUIRED TOP PANEL HARDWARE REQUIRED Ø 4,0 x 40mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 8 For your future reference order number should be here PARTS REQUIRED BACK PANEL 10 - BACK PANEL STRIP(UPPER) 11 -...
  • Page 8 SEC/SH/02/21/PJ1 STEP 9 PARTS REQUIRED 13 - RIGHT DOOR 14 - LEFT DOOR 16 - DOOR STRIP HARDWARE REQUIRED Ø 3,0 x 16mm Right Left TOOLS REQUIRED STEP 10 PARTS REQUIRED HANGER 13 - RIGHT DOOR 14 - LEFT DOOR HARDWARE REQUIRED Ø...
  • Page 9 SEC/SH/02/21/PJ1 STEP 11 Serious or fatal injuries can occur from furniture tipping PARTS REQUIRED recommend that it is permanently fixed to the wall. Wall fixings are not supplied with this product as different wall materials require different types of fixing devices. Please make sure you use fixings suitable for the walls in your home.
