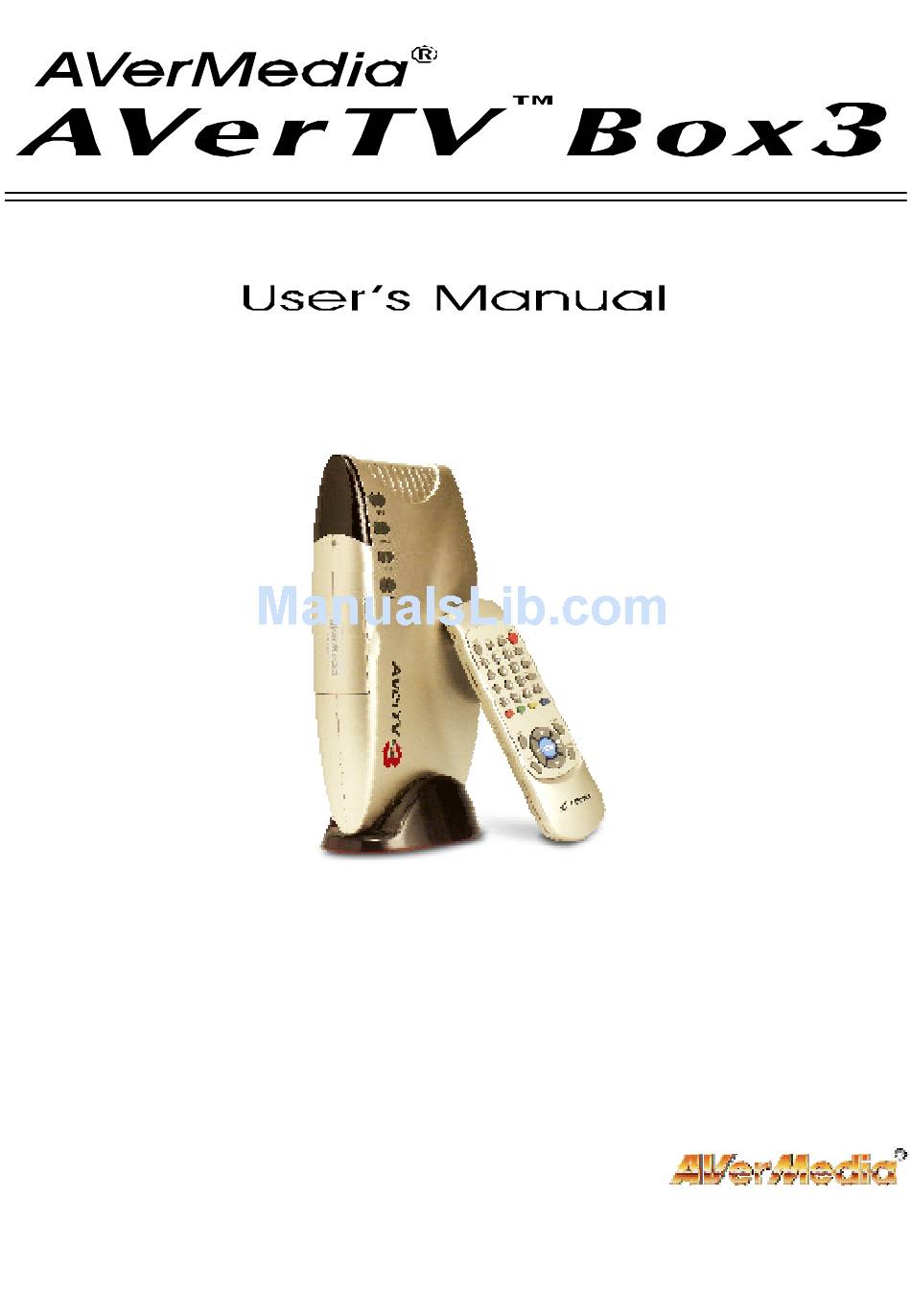

- Page 1 EXTERNAL T V TUNER BOX...
- Page 2 C O P Y R I G H T © 2002 by AVerMedia TECHNOLOGIES, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of AVerMedia TECHNOLOGIES, Inc.
-
Page 3: Table Of Contents
Contents Introduction... 1 What’s in the Package... 1 The AVerMedia AVerTV Box Unit... 2 The Touch Button Control Panel ... 2 Infrared Sensor... 2 Connection Ports ... 3 Installation and Setup... 4 Connecting the VGA monitor or LCD Projector... 5 Connecting the Computer... -
Page 4: Introduction
Introduction Thank you for purchasing the AVerMedia® AVerTV Box3! With the AVerMedia AVerTV Box3, you can turn your VGA monitor or LCD projector into a TV with or without even having to turn on your computer. Just plug it into your monitor or LCD projector and you’re ready to watch TV or play video games. -
Page 5: The Avermedia Avertv Box Unit
The AVerMedia AVerTV Box3 Unit Touch Button Control Panel The Touch Button Panel found on the top side of the AVerTV Box3 provides quick access to commonly used functions. Turn the unit on /off Press this button to toggle between TV/Video and PC display Press the LEFT... -
Page 6: Connection Ports
User’s Manual Connection Ports The port connectors allow connection of your TV antenna, PC, VGA monitor or LCD projector, speakers, video, or s-video source etc. Left & Right Audio2 In Audio In from PC’s sound card Power Adapter Antenna VGA Out to monitor VGA In from PC Video2 In Speaker Connection... -
Page 7: Installation And Setup
User’s Manual M AC... -
Page 8: Connecting The Vga Monitor Or Lcd Projector
User’s Manual Connecting the VGA monitor or LCD Projector Connect the monitor cable to the AVerTV Box3 VGA OUT port. VGA Monitor Mac Monitor Monitor Adapter (optional) VGA C able (not supplied) LCD PROJECTOR Connecting the Computer You can use AVerTV Box3 with or without turning the computer on. To switch to PC anytime, connect the supplied VGA cable to the AVerTV Box3 VGA IN port and to your computer's VGA card (the terminal where your... -
Page 9: Connecting The Antenna
Connecting the Antenna Attach the antenna or cable TV to the port of the AVerTV Box3. Connecting an Audio Cable Audio Cable Sound Card (supplied) Connecting the External Amplified Speaker Connect the external amplified speaker to the AVerTV Box3 SPEAKER port. Connecting the Power Adapter Wall Outlet... -
Page 10: Connecting A Video Source
Connecting a Video Source Composite Video: Connect the video cable (not supplied) to the video out of the video device and to the AVerTV Box3 VIDEO1 IN or VIDEO2 IN port. Connect the audio cable to the left & right audio out of the video device and to the AVerTV Box3 left &... -
Page 11: Using The Avermedia Avertv Box
Using the AVerMedia ® Using AVerMedia AVerTV Box3 for the First Time When you power on the AVerMedia automatically proceed to the SET AREA. Since TV signals vary in different countries, you need to select the appropriate signal. Refer to the table below for country signals. -
Page 12: Calling Up A Menu Display
AV/PC To toggle between TV/Video or PC display SOURCE Switch between TV or external video sources NUMBER BUTTONS To select a TV channel Press this button first for cable channels over 100 FASTEXT LINK buttons Jumps to the teletext page which the color corresponds to MENU To call up the menu display... -
Page 13: Tv Source
Main Menu On Screen Display TV SOURCE CH FINETUNE CH SCAN Usage Use the CH+ or CH- buttons to select between air or cable TV source, then press Vol+ button to make the selection. If the TV reception is not clear, choose CH FINETUNE then press Vol+ and Vol- buttons until the TV picture becomes clear. -
Page 14: Clock
Main Menu On Screen Display CLOCK MORE.. DEFAULT Usage Use this function to set the clock time and to program the AVerTV Box3 to turn on automatically. The clock and alarm format settings are in “hours : minutes”. Simply use the number buttons on the remote to key in the actual time and the time to automatically turn on the... -
Page 15: Favorite Ch
Main Menu On Screen Display FAVORITE CH SET AREA Usage This function allows you to add, remove and reprogram or reassign the TV channels with the channel numbers that are easier to remember. In the selected USER CH, enter in the new channel number you want to assign or the channel number you want to remove/add in to the channel line up. -
Page 16: Osd Positioning
Main Menu On Screen Display POSITION RESOLUTION LANGUAGE 中文 영어 NTSC version PAL and SECAM version Customizing the Picture Setting If you want to adjust the quality of the TV or video picture, press the PICTURE button on the remote. Then, use the CH+ or CH- buttons to select the items in the PICTURE menu and use the Vol+ or Vol- buttons to make the adjustment. -
Page 17: Using Teletext (Option)
Using Teletext (option) For European countries, the AVerTV Box3 provides the Teletext function which allows users to receive digital information from TV stations that broadcast such information. Teletext data is widely used in Europe and is transmitted along with normal television programs. The AVerTV Box3 can decode the teletext data and display the resulting information on your computer screen. -
Page 18: Selecting A Teletext Page
Selecting a Teletext Page There are many ways of selecting a teletext page : • To enter a teletext page number, press on the NUMBER buttons 0 ~ 9. • To view the next upper or lower teletext page, press the CH+ and CH- buttons on the remote. -
Page 19: Limited Warranty
LIMITED WARRANTY AVerMedia TECHNOLOGIES, Inc. warrants this product to be free of defects resulting from faulty manufacture or components under the following terms: WARRANTY LENGTH Labor is warranted for (1) one year from the date of purchase. Parts are warranted for (1) one year from the date of purchase.
