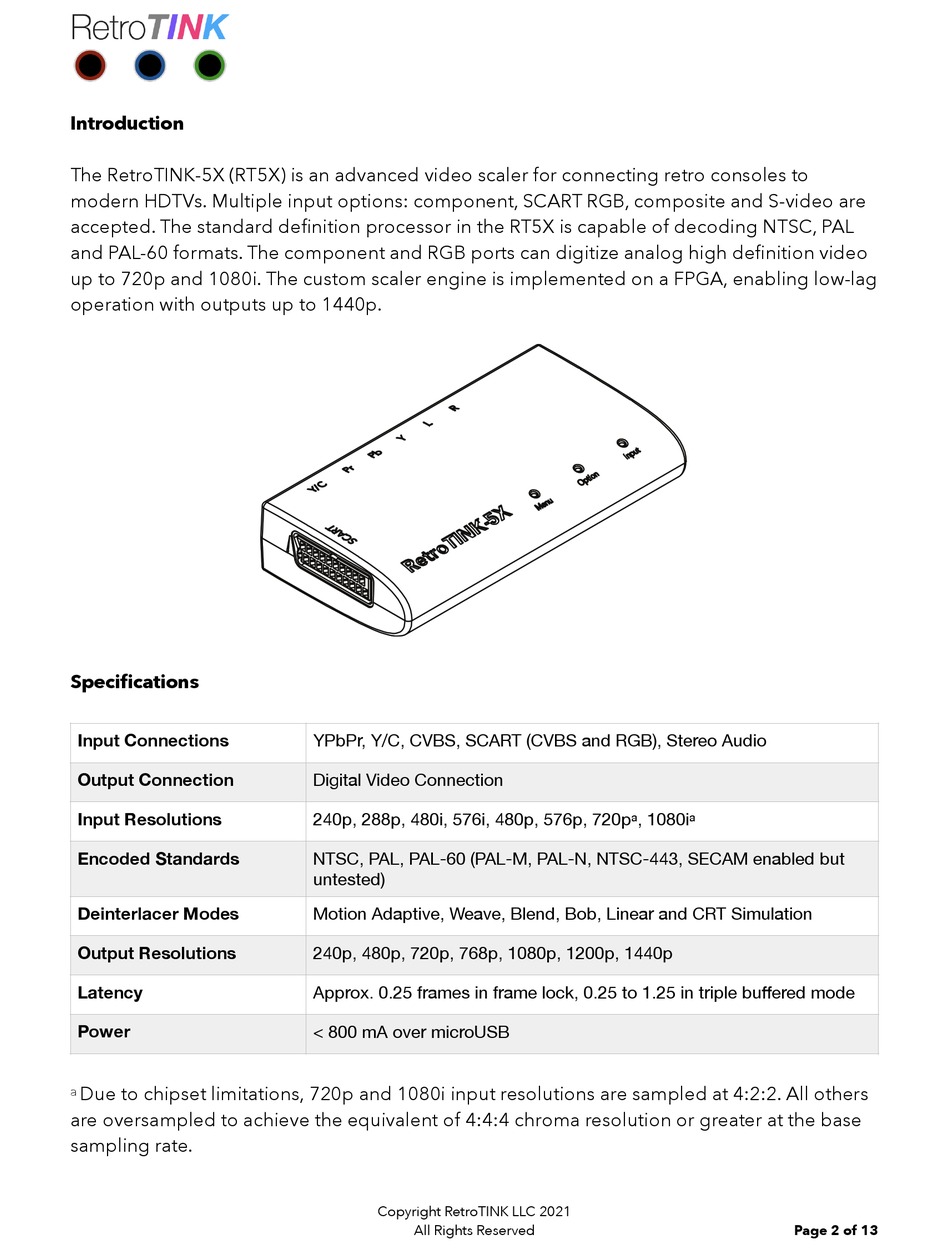

Introduction
The RetroTINK-5X (RT5X) is an advanced video scaler for connecting retro consoles to
modern HDTVs. Multiple input options: component, SCART RGB, composite and S-video are
accepted. The standard definition processor in the RT5X is capable of decoding NTSC, PAL
and PAL-60 formats. The component and RGB ports can digitize analog high definition video
up to 720p and 1080i. The custom scaler engine is implemented on a FPGA, enabling low-lag
operation with outputs up to 1440p.
Specifications
Input Connections
Output Connection
Input Resolutions
Encoded Standards
Deinterlacer Modes
Output Resolutions
Latency
Power
Due to chipset limitations, 720p and 1080i input resolutions are sampled at 4:2:2. All others
a
are oversampled to achieve the equivalent of 4:4:4 chroma resolution or greater at the base
sampling rate.
YPbPr, Y/C, CVBS, SCART (CVBS and RGB), Stereo Audio
Digital Video Connection
240p, 288p, 480i, 576i, 480p, 576p, 720p
NTSC, PAL, PAL-60 (PAL-M, PAL-N, NTSC-443, SECAM enabled but
untested)
Motion Adaptive, Weave, Blend, Bob, Linear and CRT Simulation
240p, 480p, 720p, 768p, 1080p, 1200p, 1440p
Approx. 0.25 frames in frame lock, 0.25 to 1.25 in triple buffered mode
< 800 mA over microUSB
