Summary of Contents for RetroTINK 2X-SCART

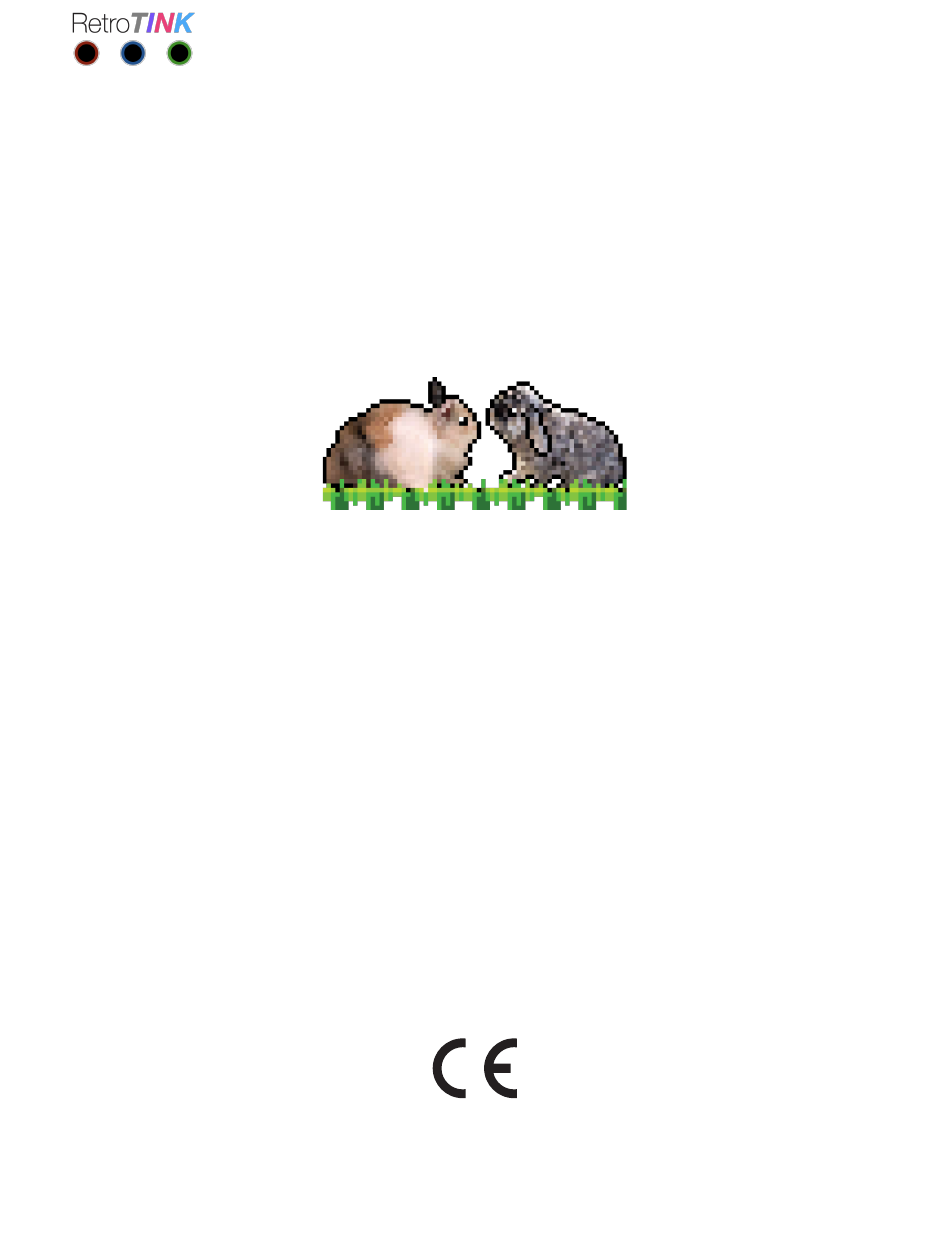

- Page 1 2X-SCART User Manual Revision 1.2 April 21 , 2020 Copyright RetroTINK LLC 2020 Page All Rights Reserved...
- Page 2 The SCART version adds a scanline generator, USB firmware upgrade support and is housed in an injection molded enclosure. In addition, the 2X-SCART is fabricated on a 4-layer PCB with improved routing, power supply and filtering for lower video noise.
- Page 3 2. Digital Video output. 3. microUSB power input. Connect to any microUSB power source capable of supplying 500 mA or more. 4. FILTER button. Cycles between normal, smoothed and scanline filters. 5. Indicator LED. Copyright RetroTINK LLC 2020 Page All Rights Reserved...
- Page 4 Finally, press the ‘FITLER’ button until your desired effect is shown. The effect cycles between normal (blocky), smoothed and scanline effects. The RetroTINK-2X SCART remembers the filter settings between power cycles. Copyright RetroTINK LLC 2020 Page...
- Page 5 Firmware Upgrade The 2X-SCART has the ability to upgrade the firmware over USB using a PC-based application. No special tools are needed. Firmware upgrades requires that the 2X be started in bootloader mode. Hold the ‘FILTER’ button down while connecting the 2X to a PCB via USB cable. The LED indicator should remain solid RED.
- Page 6 Digital Video connection. Alternatively, directly connect the audio output from your console to your sound system and bypass the 2X. Copyright RetroTINK LLC 2020 Page All Rights Reserved...
- Page 7 < 300 mA over microUSB, 500 mA PTC fuse for overcurrent protection Disposal If your RetroTINK malfunctions, please contact the place of purchase via e-mail or through their website to arrange repair or replacement. All RetroTINK units come with one years warranty.
