Summary of Contents for RetroTINK 2X Pro Multiformat
- Page 1 2X-M PRO Multiformat User Manual Revision 1.0 August 10 , 2020 Copyright RetroTINK LLC 2020 Page All Rights Reserved...

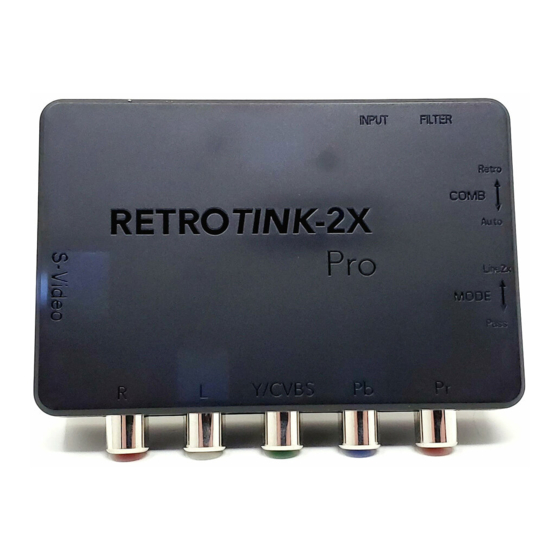

- Page 2 Introduction The RetroTINK-2X Pro Multiformat (2X-M) is a device capable of line-doubling standard definition sources from composite, S-video and component signals from retro consoles. The 2X-M is also capable of passing 480p component video signals without alteration in timing to the digital video output port.
- Page 3 7. FILTER button. Cycles between normal and scanline modes. 8. COMB switch. Toggles between notch and automatic comb filtering for composite video. 9. MODE switch. Toggles between line doubling and pass-thru modes. 10. Indicator LED. Copyright RetroTINK LLC 2020 Page All Rights Reserved...
- Page 4 Finally, press the ‘FITLER’ button until your desired effect is shown. The filters cycle between norma and scan-line effects. The RT2X-M remembers the input and filter settings between power cycles. Copyright RetroTINK LLC 2020 Page All Rights Reserved...
- Page 5 480i on a modern console. This allows for perfect reconstruction of the original image as if they were line doubled from 240p content. The de-interlace field offset is not saved across power cycles. Copyright RetroTINK LLC 2020 Page All Rights Reserved...
- Page 6 To exit bootloader mode without upgrading, disconnect the microUSB cord from the 2X-M, then reinsert without holding the ‘INPUT’ button down. Detailed and firmware files may be found on www.retrotink.com. THE 2X-M HAS A CUSTOM FIRWMARE BASE. DO NOT USE 2X-M FIRMWARE ON ANY OTHER DEVICE OR VICE VERSA.
- Page 7 Digital Video connection. Alternatively, directly connect the audio output from your console to your sound system and bypass the 2X-M. Copyright RetroTINK LLC 2020 Page All Rights Reserved...
- Page 8 < 300 mA over microUSB, 500 mA PTC fuse for overcurrent protection Disposal If your RetroTINK malfunctions, please contact the place of purchase via e-mail or through their website to arrange repair or replacement. All RetroTINK units come with one years warranty.
