::: How to assemble Explorer2 Dyneema Riser

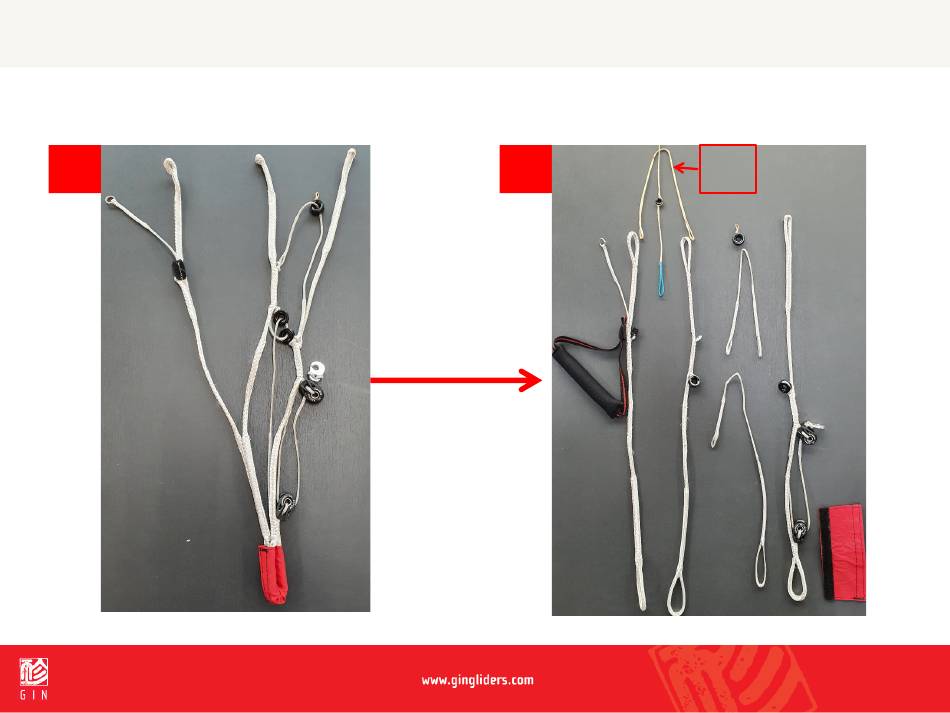

§ Disassemble each part
A1,2
C
B,STB
1
2
Riser
C3
A3
line
A1,2
A3
C1,2
B,STB
C4
AB
Big loop
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Explorer2 Dyneema Riser and is the answer not in the manual?

Questions and answers

Related Manuals for Gin Gliders Explorer2 Dyneema Riser

Summary of Contents for Gin Gliders Explorer2 Dyneema Riser

  • Page 1 ::: How to assemble Explorer2 Dyneema Riser § Disassemble each part A1,2 B,STB Riser line A1,2 C1,2 B,STB Big loop...
  • Page 2 ::: How to assemble Explorer2 Dyneema Riser § Assemble C3,4 line with O-ring C3,4 line 1. Sleeve one side, no reinforcement other side. 2. Connect C3 and C4 lines 3. Add one loop either side of the O-ring 4. Tighten the loops symmetrically...
  • Page 3 ::: How to assemble Explorer2 Dyneema Riser § Assemble Main B1,2,3, STB, Riser line on the risers Riser line Main B1,2,3,STB, riser line on Riser B,STB B,STB • Assembly method: figure of 8 knot...
  • Page 4 ::: How to assemble Explorer2 Dyneema Riser § Assemble Riser line through the O-ring Riser line O-ring Main C3,4 line...
  • Page 5 ::: How to assemble Explorer2 Dyneema Riser § Assemble Main C1,2,3,4, Riser line on the risers Main C1,2,3,4, Riser line on Riser C C1,2,3,4 Riser line • Assembly method: figure of 8 knot...
  • Page 6 ::: How to assemble Explorer2 Dyneema Riser § Assemble Main A3 on the rings § Assemble Main A1,2,3 on the risers Main A3 Main A1,2 on Riser A3 on Riser A1,2 A1,2 • Assembly method: figure of 8 knot...
  • Page 7 ::: How to assemble Explorer2 Dyneema Riser § Assemble Riser A3 on Riser B,STB § Assemble Riser AB on Riser B,STB B,STB B,STB B,STB Assembling way : Figure of 8 knot...
  • Page 8 ::: How to assemble Explorer2 Dyneema Riser § Assemble Main A3 ring on Riser A3 § Assemble Riser A3 on Riser A1,2 B,STB A1,2...
  • Page 9 ::: How to assemble Explorer2 Dyneema Riser § Assemble Riser AB on Riser A1,2 and B,STB A1,2 B,STB B,STB A1,2...
  • Page 10 ::: How to assemble Explorer2 Dyneema Riser § Cover Main Loop Note: This dyneema riser is designed to be as light as possible. That means: no shackles, no, C/B-steering and no good (heavy) connection of the brake. For sure the dyneema risers are not...
