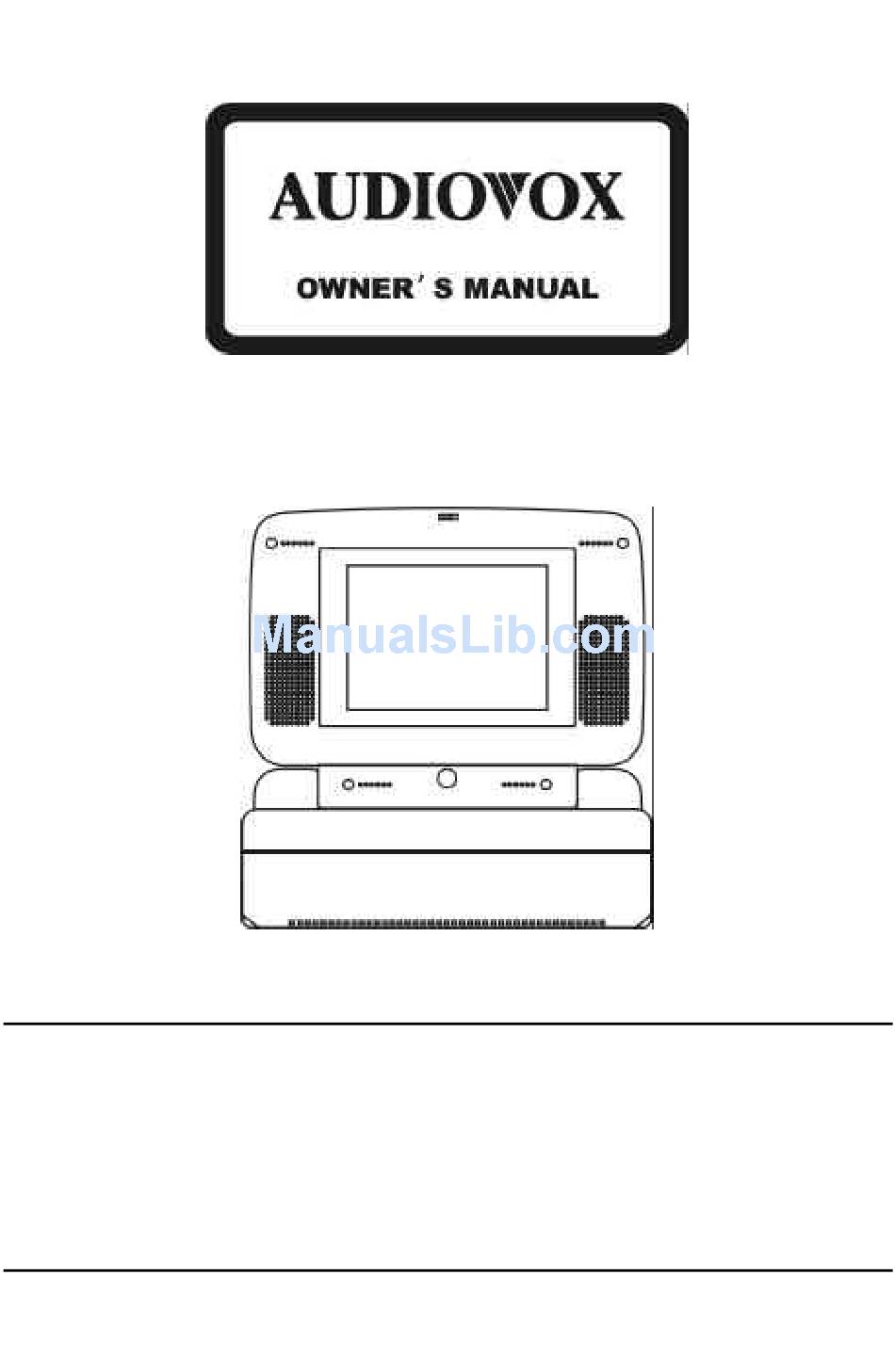

  • Page 1 VBP3900 VIDEO IN A BAG SYSTEM WITH 5" LCD MONITOR & DVD PLAYER...
  • Page 2 Notice: This Product incorporates copyright protection technology that is pro- tected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited view- ing uses only unless otherwise authorized by Macrovision Corporation.

  • Page 3: Safety Precaution

    A. Introduction Thank you for selecting the VBP3900 “ Video in a Bag” System. The system's main features include a 5" Liquid Crystal Display (LCD) monitor and a DVD player. The system utilizes the latest state of the art electronics and is designed for use in vehicles, hotels, offices or your home.
  • Page 4 *NOTE: The AC power supply that comes with the VBP3900 can only suply the main unit. If an additional monitor is used, you must use the power supply that is supplied with it. B. Cautions and Warnings 1. Placement To prevent fire or electric shock, do not expose this appliance to rain or moisture.
  • Page 5 sory) power indicated on the marking label (i.e. not directly from the car battery). Power should be applied to the unit when the ignition key is in the Run and/or Accessory positions. To prevent battery discharge, disconnect the “ Video in a Bag” System jack from the cigarette lighter socket when the unit is not in use.
  • Page 6 tape or glue on the disc. Do not expose the disc to direct sunlight or heat sources such as hot air ducts. Do not touch the surface of disc. Handle the disc by its edge. Clean the disc by wiping the disc from the center out with a cleaning cloth.
  • Page 7 2. Powering the system in the vehicle (Refer to Figure 2) Figure 2 Unzip the lower compartment of the bag and take the cigarette lighter adapter. Plug one end into the DC 12V jack on the left side of the main unit, then plug the other end into the cigarette lighter socket.
  • Page 8 E. Installation 1. Installing the system onto the seat back in a car (Refer to Figure 3) 1) Unfasten the velcro strap on the rear of the bag. Fold the strap into the shape of a triangle and fasten it to the bag. 2) Take one of the supplied straps from the lower compartment.
  • Page 9 2. Installing the system between the driver/passenger seat (Refer to Figure 4) 1)Take one of the supplied straps from the lower compartment of the bag, and connect the latch to the upper side metal ring on the left side of the bag. Attach the "S" hook to the same ring after looping the strap around the headrest of the driver's seat.Repeat this process for the right side (Passenger Seat).
  • Page 10 4) Unzip the bag and flip down the front flap. Ensure the retaining Velcro strap of the bag is fastened to prevent the unit from falling out. Swing the monitor upwards and adjust the screen for the desired viewing angle. 3.
  • Page 11 F. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 6) 1) Headphone Jack 1 2) Headphone Jack 2 3)Volume Up/Down Thumbwheel 4) DC 12V power Jack 5) S Video Output Jack 6) Video Jack 7) Audio L Jack 8) Audio R Jack 9) Input/Ouput Switch 10) Monitor Port...
  • Page 12 2. Remote Control View (Refer to Figure 7) 1) Power Button 2)Display Button 3) Angle Button 4) Subtitle Button 5) Audio Button 6) Zoom Button 7) Up/Down/Left/Right / Enter Buttons 8) Menu Button 9) Return Button 10) A-B Button 11) Forward Button 12) Reverse Button 13) Slow Button 14) Stop Button...
  • Page 13 1. Basic Operation POWER EJECT PLAY SLOW PAUSE STOP NEXT PREVIOUS FORWARD REVERSE UP/DOWN/LEFT /RIGHT ENTER NUMBERS RETURN MENU REPEAT DISPLAY ANGLE SUBTITLE AUDIO ZOOM SETUP Turn the unit on/off the unit Eject/load the disc Start Play Play at 1/2, 1/4, 1/8 or 1/16 times speed Still Picture (1 time) Stop at the present playing point / (2 times) Stop playing...
  • Page 14 2. MENU A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc. Press MENU during playing to display the menu, and press ENTER or PLAY to start playing.
  • Page 15 c. Press ‘ DISPLAY’ the 3rd time to display the Elapsed Time for the chapter. The heading will disappear automatically in about 3 seconds. Figure 10. Chapter Elapsed Time Screen Display d. Press ‘ DISPLAY’ the 4th time to display the Remaining Time for the chapter.
  • Page 16 Figure 12. Angle Screen Display 3) SUBTITLE During disc playback press ‘ SUBTITLE’ to select the subtitle language you desire*, with the current Subtitle Language Number (1) and the total Number of Subtitle Languages (2) displayed. If there are mul- tiple languages press ‘...
  • Page 17 4) AUDIO During playback press ‘ AUDIO’ to select the audio language you desire*, with the current Audio Channel Number (1) and the total number of Audio Channels (2) displayed. Press AUDIO again to select another audio language. The audio display will disappear automatically if the ‘...
  • Page 18 6) A-B REPEAT a. During playback press first time ‘ A-B’ to set the Starting Point A. Figure 16. A-B Repeat Starting Point Screen Display b. Press ‘ A-B’ second time to set the Ending Point B and the player will repeatedly play the part between Point A and Point B Figure 17.
  • Page 19 7) REPEAT a. During playback press ‘ REPEAT’ once to repeatedly play the current chapter. Figure 19. Chapter Repeat ON Screen Display b. During playback press ‘ REPEAT’ again to repeatedly play the current title. Figure 20. Title Repeat ON Screen Display c.

  • Page 20: Playing Audio Cds

    d. Press “ REPEAT” 4th times ,then resum normal. Figure 22. Repeat Off ON Screen Display 4. PLAYING AUDIO CDS During playing back, When playing an audio CD. Press the DISPLAY button on the remote to display the DISPLAY Banner. The options below show you what happens when you press the DISPLAY button.
  • Page 21 b. Press ‘ DISPLAY’ second time and SINGLE RE with the current track playing the amount of time left. Figure 24. SINGLE REMAIN Screen Display c. Press ‘ DISPLAY’ third times and TOTAL ELAPSED appears along with the current track playing and the total time that the CD has been playing.

  • Page 22: Using The Repeat Feature

    e. P ress ‘ DISPLAY’ fifth times and “ DISPLAY OFF” wi momentarily then disappear. The CD time Information will not be displayed. USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: •...

  • Page 23: Skipping Songs

    When an MP3 disc is inserted into the unit, the menu screen appears automatically. You can use the menu screen to change folders and songs. The system plays the songs in the order they were burned onto the disc. 　 1.
  • Page 24 6. Playing JPG file 1) Loading the JPG Disc into tray. 2) Select JPG file by pressing “ LEFT/RIGHT” key. 3) You can preview the JPG file by pressing “ Play” or “ OK” . 4) The photo will be rotated 90 C during the preview to left, If press “...
  • Page 25 k. Press “ display” 11th time, “ COMPRESS TO CENTER H” will dis- play on the screen, the picture will refresh from top and bottom still to center. l. Press “ display” 12th time, “ COMPRESS TO CENTER V” will display on the screen, the picture will refresh from right and left to center.
  • Page 26 G. SETUP Press ‘ SETUP’ to display the Main screen of the SETUP Menu on the screen. Press ‘ SETUP’ again to exit the SETUP Menu and the unit will resume it’ s last playback or player mode. Figure 28. Main SETUP Menu Screen 1) Press “...
  • Page 27 b. Select ‘ TV Type’ using UP/DOWN, and then press the RIGHT button to enter the submenu. Choose TV Type using UP/DOWN and then press ENTER to confirm the setting. Press the LEFT button to return. Figure 30. TV Type Screen Display c.
  • Page 28 Figure 32. SCREEN SAVER Display *ON: have screen saver *OFF: no screen saver *NOTE: The DVD player will enter the Screen Saver mode about 5 minutes if no disc or “ open” Mode. 2) When no disc inside the player select “ Preference Page” by using LEFT/RIGHT, press ENTER to enter the Preference page.
  • Page 29 b. Select “ Subtitle” by UP/DOWN Key, then press Enter you can change the Subtitle by UP/DOWN key. Figure 35. Preference Subtitle Language When complete “ Subtitle” Setting, press Enter or LEFT return the root Menu. c. Select “ Disc Menu” by UP/DOWN Key, then press Enter you can change the Disc Menu by UP/DOWN key.
  • Page 30 When complete “ Parental” Setting, press Enter or LEFT return the root Menu e. Select ‘ DEFAULTS’ using UP/DOWN, then press RIGHT to enter the submenu. Press ENTER to make the setting return to the factory-set mode. NOTE: The parental setting is not affected by the default function.
  • Page 31 NOTE: For 1st time use the default password is 3308. Figure 40. PASSWORD VERIFY Input Screen Display NOTE: The Default Password is 3308. This password is always effective even after you have selected your own password and changed it. To avoid the possibility of others using the default password to set the parental level and change the password, you can record this default password in another area and delete it from this manual.
  • Page 32 H. Playing a Video Game Plug the video output from your game system into the yellow VIDEO jack and the AUDIO L and AUDIO R into the applicable jacks on the left side of the main unit.,Place the Input/Output switch to the IN Position. Adjust the volume control and the brightness control on the monitor for individual preference.
  • Page 33 1. Using the MONITOR PORT (Refer to Figure 418 and Figure 42) This system can suport 1 additional monitor by using the cigarette lighter adapter in the vehicle. (Please contact an Audiovox dealer for the additional monitors) . (Note: The AC to DC adapter can power only the main unit ).
  • Page 34 2. Using the AV outputs (Refer to Figure 8) Match the color-coded plugs to the appropriate jacks on the left side of the main unit: Yellow (VIDEO) to Yellow, White (AUDIO L) to White, and Red (AUDIO R) to Red, and switch the In/out switch to the “...

  • Page 35: 90-Day Limited Warranty

    90 DAY LIMITED WARRANTY Applies to A u diovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be...
  • Page 36 © 2003 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 128-6666A...
